e) Work safety
• Ensure that there is sufficient lighting.
• Ensure proper ventilation during soldering. Solder and flux vapours can be harmful to your
health.
• Wash your hands thoroughly after working with solder. This is particularly important when
using lead-based solder.
• Do not put soldering alloys into your mouth. Do not eat or drink during soldering.
• Wear suitable protective clothing and safety goggles when soldering. Liquid/splashing sol-
der may cause serious burns or eye damage.

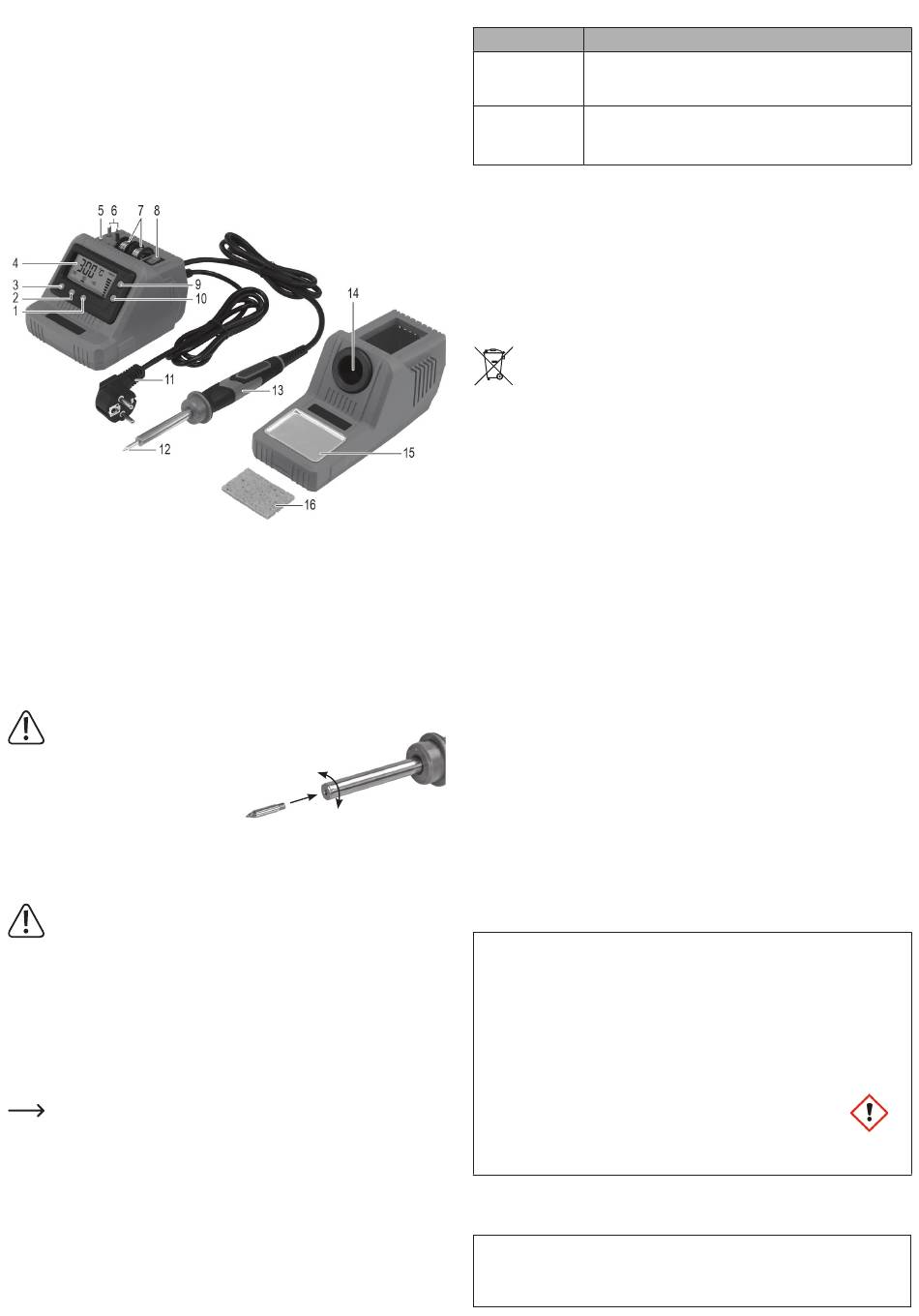

Operating elements
1 450 ºC preset button 7 Solder spools
2 300 ºC preset button 8 Power switch
I/O (ON/OFF)
3 200 ºC preset button
9 + button (increase
4 LCD display
working temp.)
5 Tip holders
10 - button (decrease
6 Spare tips
working temp.)
Setting up
a) Soldering iron tips
Risk of burns! Allow the tip to cool down before attempting to replace it. Do not
overtighten the tip.
• Pointed tip: Used for point soldering and thin
wires.
• Flat tip: Used for light electrical work.
• Store any unused tips in the tip holder (5).
b) Preparing the sponge
Place the sponge (16) into the tray (15) and moisten it slightly before use.
Operation
Always keep the tip tinned before switching off or storing for any period of time.
Do not keep the iron on for an extended period of time as this will break down the
surface of the tip.
• Connect the power plug (11) to a mains power outlet.
• Turn the power ON: Flip the power switch (8) to the [ I ] position.
The LCD display (4) shows the preset target temperature for a few seconds, followed by the
actual working temperature of the soldering tip (12).
• Select the required working temperature by:
- Pressing one of the preset buttons (1), (2), or (3).
- Pressing the temperature increase [+] (9) or decrease button [-] (10).
The temperature can be adjusted in 10 °C increments. The working temperature
range is 200 to 450 °C.
• Turn the power OFF: Flip the power switch to the [O] position.
• Disconnect the power plug (11) from the mains power outlet, and allow the soldering iron to
completely cool down before storing away.
Troubleshooting
Problem
Soldering iron does
not heat up.
Tip does not get hot
enough.
Maintenance and care
• Never clean the tip with coarse, abrasive materials like files.
• If oxide forms on the tip, lightly rub with abrasive paper, wipe clean, then immediately reheat
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
Disposal
Distributors of electrical and electronic equipment are legally obliged to provide free take-back
of waste. Conrad provides the following return options free of charge (more details on our
website):
• in our Conrad offices
11 Power plug
• at the Conrad collection points
12 Soldering tip
• at the collection points of public waste management authorities or the collection points set
13 Handle
14 Soldering iron holder
End users are responsible for deleting personal data from the WEEE to be disposed of.
15 Tray for sponge
It should be noted that different obligations about the return or recycling of WEEE may apply in
16 Sponge
countries outside of Germany.
Technical data
Input voltage / current ................... 230 V/AC 50 Hz,
Power consumption ...................... 60 W
Temperature range ....................... 200 - 450 ºC
Temperature adjust ....................... 10 ºC increments
Solder ........................................... ø1 mm 10 g (lead-free flux core)
Protection class ............................ I
Operating conditions ..................... 0 to +45 ºC, 35 – 80 % RH (non-condensing)
Storage conditions ........................ +10 to +30 ºC, 35 – 80 % RH (non-condensing)
Dimensions ................................... Main unit: 125 x 95 x 150 mm (W x H x D)
Weight .......................................... 1.1 kg (net)
Suggestion
Check that the mains supply (socket) functions correctly. The mains
cable or power source may be faulty. Seek advice from an electri-
cian if needed.
• Let the tip cool down completely and check that it is screwed in
completely.
• The tip may be faulty, try using a different one.
and re-tin the tip to prevent oxidation of the wettable surface.
they can cause damage to the housing and malfunctioning.
This symbol must appear on any electrical and electronic equipment placed on the
EU market. This symbol indicates that this device should not be disposed of as
unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
up by manufacturers or distributors within the meaning of the ElektroG
ø1.5 mm 10 g (lead-free flux core)
Stand: 215 x 90 x 95 mm (W x H x D)
Soldering iron: ø36 x 200 mm
Solder for Digital Soldering Station 60 W (BN 2613254)
ATTENTION
May cause allergic skin reactions. Avoid inhalation of vapour / dust. Wear protective gloves.
If skin irritation or rash occurs: Get medical advice / attention. Remove contaminated cloth-
ing and wash before reuse. Dispose of contents/container in accordance with local/national
regulations.
Contains: Rosin
