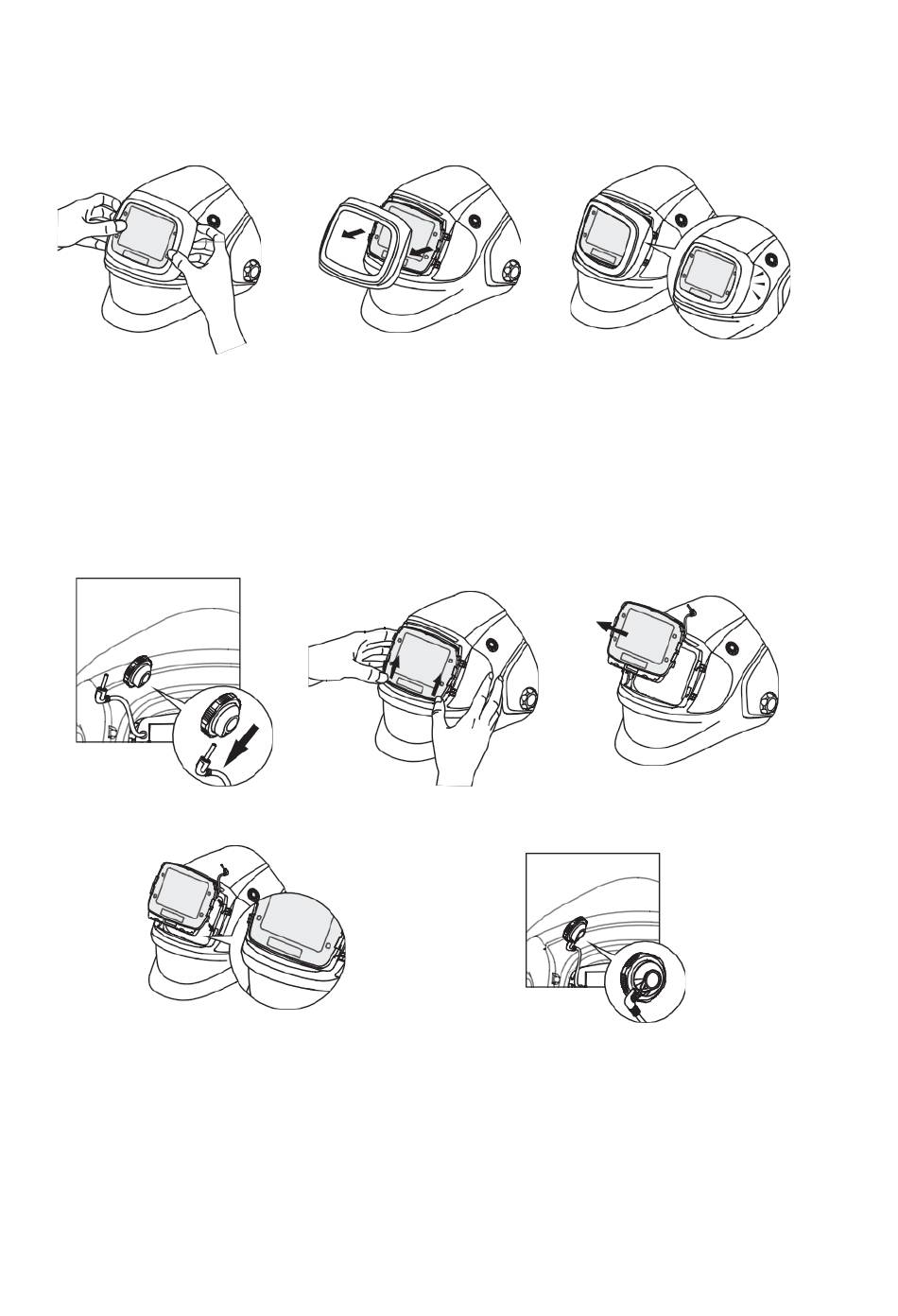

• REPLACING THE FRONT LENS HOLDER
Disassembling: Remove the front lens holder per fig.8a / 8b.
Assembling: Fit the one side into slot, then press and lock the other side (See fig.8c).
fig.8a
• REPLACING THE AUTO DARKENING FILTER
Disassembling: Hold the helmet so that the inner side is facing towards you. Grasp the wire connector
end of the auto-darkening filter (which is connected to the external grinding button) and gently pull it out
of the circular socket (See fig.9a). Press the thumb on the bottom sides of the auto darkening filter and
push it upward (See fig.9b), remove the filter from the helmet shell (See fig.9c). Assembling: First insert
the auto darkening filter into the slots on left and right sides. Then push the filter down till the locks click
(See fig.9d). Take the wire connector end of the auto-darkening filter and make sure to insert it firmly
into the external grinding button socket (See fig.9e).
fig.9a
• REPLACING THE OUTSIDE COVER LENS
Replace the outside cover lens if it is damaged.
Disassembling: Remove the front lens holder per fig.8a / 8b. Place your fingernail in recess above filter
view window and flex lens upwards until it releases from edges of filter view window (See fig.10a).
Assembling: Install with one side into the slot, then insert the other side.
MAINTENANCE
fig.9d
fig.8b
fig.9b
fig.9e
10
fig.8c
fig.9c
