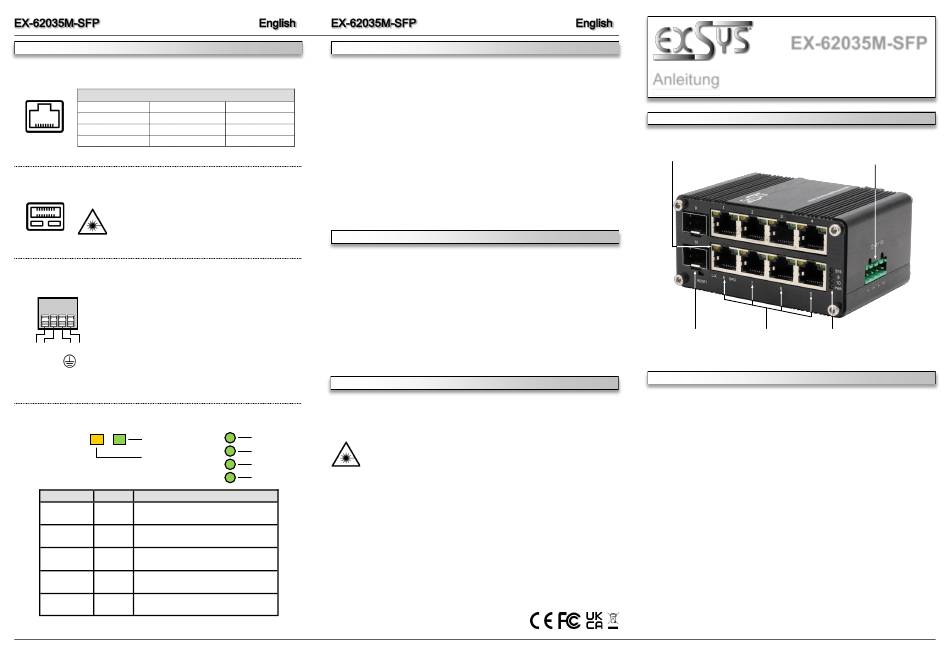

CONNECTORS & STATUS LED
RJ45 Port:
RJ45 Port
Pin
Signal
Pin
Signal
1
BI_DA+
4
BI_DC+
2
BI_DA-
5
BI_DC-
87654321
3
BI_DB+
6
BI_DB-
SFP slot:
ATTENTION!
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not
stare directly into the laser beam.
12V to 48V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
V- V+
V- V+
Never connect the negative terminal to the earth of the
unit. (EGND)
V-
Redundant power supply possible to reduce operational failure.
Status LEDs:
PoE LED
Link / Activity LED
LED Name
Color
LED Function
On:
Linked
Link (ACT)
Yellow
Flashing:
Data Transmission
On:
1000 Mbit/s
Speed (SPD)
Green
Off:
10/100 Mbit/s
On:
Fiber linked
FX 9+10
Green
Flashing:
Data Transmission
Flashing:
System is running
SYS
Green
Off:
System failure / Switch off
On:
Switch is powered
PWR
Green
Off:
No power supply connected
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1.
Install the EX-62035M-SFP on a mounting rail using the DIN-Rail kit.
2.
If required, insert optional SFP transceivers into the SFP slots.
Pin
Signal
3.
Connect your network devices to the switch using a network cable.
7
BI_DD+
4.
If required, connect the fiber optic cable for the connection to the media converter or switch
8
BI_DD-
to the SFP transceiver(s) used.
CAUTION! Do not look directly into the laser beam of the fiber optic connector!
5.
Connect the power connector of the optionally available power supply to the terminal block
and switch on the power supply.
6.
After the power is turned on, the PWR indicator lights up. If the indicator does not light up,
check that it is connected to the power supply correctly.
7.
When all cables are connected correctly, the indicators light up according to the port status
of the LEDs (page 5).
MANAGEMENT
Make sure that the IP addresses of the switch and the PC are in the same network segment to
access the switch via the web. The default IP address of the switch is 192.168.1.6.
Open your browser, type the switch's IP address 192.168.1.6 in the address bar and press
'Enter'.
In the user login pop-up window, enter the following username and password.
After confirming your login, you will be taken to the main page of the switch, where you can
change the settings to suit your needs.
NOTICE & CLEANING
Switch off the power supply before disconnecting modules or wires.
The propper power supply voltage is indicated on the product label. Check the voltage of your
power source to ensure you are using the correct voltage. DO NOT use a voltage higher than
what is specified on the product.
SYS LED
SFP Transceivers are a Class 1 Laser/LED product.
FX 9 LED
To avoid causing serious damage to your eyes, do not stare directly into the
laser beam.
FX 10 LED
PWR LED
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Germany:
Switzerland:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
Industriestrasse 8
Dübendorfstrasse 17
61449 Steinbach
8602 Wangen
www.exsys.ch
www.exsys.de
Username:
admin
Password:
admin
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
6
EX-62035M-SFP
Anleitung
Anleitung
Vers. 1.1, 09.10.24
AUFBAU
Status LEDs
2x SFP Slot
8x RJ45
Status LEDs
100/1000 Mbit/s
100/1000 Mbit/s
BESCHREIBUNG & TECHNISCHE DATEN
Der wohl kleinste industrietaugliche 10-Port Gigabit Web-Managed Switch EX-62035M-SFP
bietet trotz seiner geringen Aussenmaße volle Gigabit Leistung an allen Ports. Die beiden SFP-
Slots ermöglichen die Einbindung in ein Glasfaser-Netzwerk. Passende SFP-Transceiver sind
als
Zubehör
erhältlich.
Dank
dem
robusten
Metallgehäuse
Betriebstemperaturbereich von -40°C bis 80°C ist er für eine Vielzahl von Anwendungen auch in
rauen Umgebungen geeignet. Die Stromversorgung erfolgt über den Terminal Block (12-
48VDC) und kann zur Verminderungen von Betriebsausfällen auch redundant erfolgen.
Kompatibilität:
Gigabit Ethernet 10/100/1000Base-T
Betriebssysteme:
Alle Betriebssysteme
Anschlüsse:
8x RJ45-Buchse, 2x SFP-Slot, 1x Terminal Block 12-48VDC
Lieferumfang:
EX-62035M-SFP, DIN-Rail Kit, Wandmontagehalterung,
Anleitung
1
12-48V T-Block für optional
erhältliches Netzteil
und
dem
erweiterten
