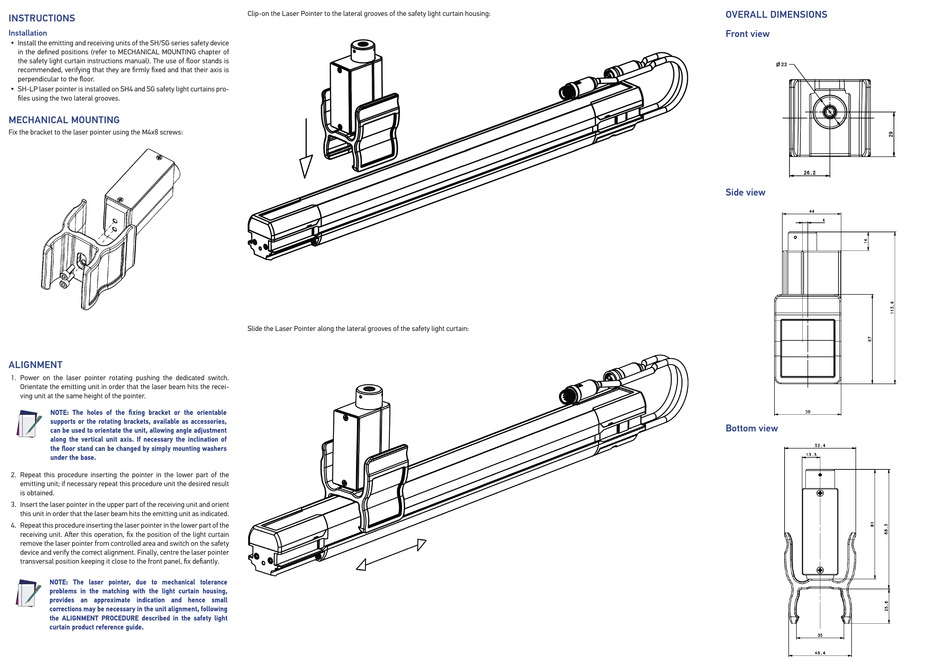

INSTRUCTIONS
Installation
 Install the emitting and receiving units of the SH/SG series safety device
in the defi ned positions (refer to MECHANICAL MOUNTING chapter of
the safety light curtain instructions manual). The use of fl oor stands is
recommended, verifying that they are fi rmly fi xed and that their axis is
perpendicular to the fl oor.
 SH-LP laser pointer is installed on SH4 and SG safety light curtains pro-
fi les using the two lateral grooves.
MECHANICAL MOUNTING
Fix the bracket to the laser pointer using the M4x8 screws:
ALIGNMENT
1. Power on the laser pointer rotating pushing the dedicated switch.
Orientate the emitting unit in order that the laser beam hits the recei-
ving unit at the same height of the pointer.
NOTE: The holes of the fi xing bracket or the orientable
supports or the rotating brackets, available as accessories,
can be used to orientate the unit, allowing angle adjustment
along the vertical unit axis. If necessary the inclination of
the fl oor stand can be changed by simply mounting washers
under the base.
2. Repeat this procedure inserting the pointer in the lower part of the
emitting unit; if necessary repeat this procedure unit the desired result
is obtained.
3. Insert the laser pointer in the upper part of the receiving unit and orient
this unit in order that the laser beam hits the emitting unit as indicated.
4. Repeat this procedure inserting the laser pointer in the lower part of the
receiving unit. A er this operation, fi x the position of the light curtain
remove the laser pointer from controlled area and switch on the safety
device and verify the correct alignment. Finally, centre the laser pointer
transversal position keeping it close to the front panel, fi x defi antly.
NOTE: The laser pointer, due to mechanical tolerance
problems in the matching with the light curtain housing,
provides an approximate indication and hence small
corrections may be necessary in the unit alignment, following
the ALIGNMENT PROCEDURE described in the safety light
curtain product reference guide.
Clip-on the Laser Pointer to the lateral grooves of the safety light curtain housing:
Slide the Laser Pointer along the lateral grooves of the safety light curtain:
OVERALL DIMENSIONS
Front view
Side view
Bottom view
