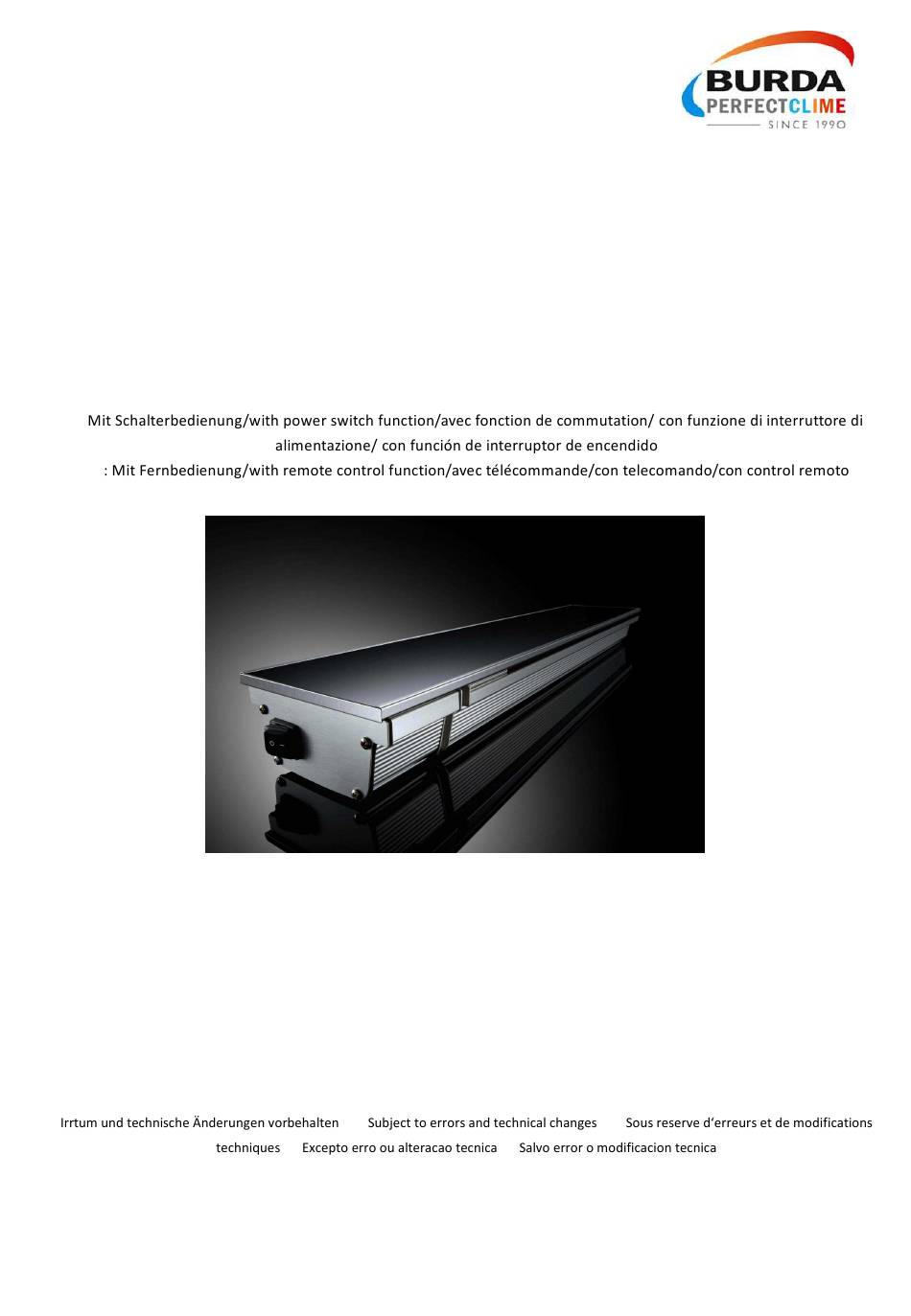

RELAX GLASS IP65
BRELG1200 BRELG1200R
BRELG1500 BRELG1500RD
BRELG1800 BRELG1800RD
BRELG2200 BRELG2200RD
BRELG3000 BRELG3000RD
MONTAGE- UND GEBRAUCHSANWEISUNG
INSTRUCTIONS FOR USE
MODE D'EMPLOI
ISTRUZIONE PER L'USO
INSTRUCCIONES DE MONTAJE Y USO
・
・
・
・
1
