axing SPU 94-05 basic-line Betriebsanleitung Seite 4

Field of application:
The devices are suited only for distributing radio and television signals in the
house! If a device is used for other purposes, no warranty is given!

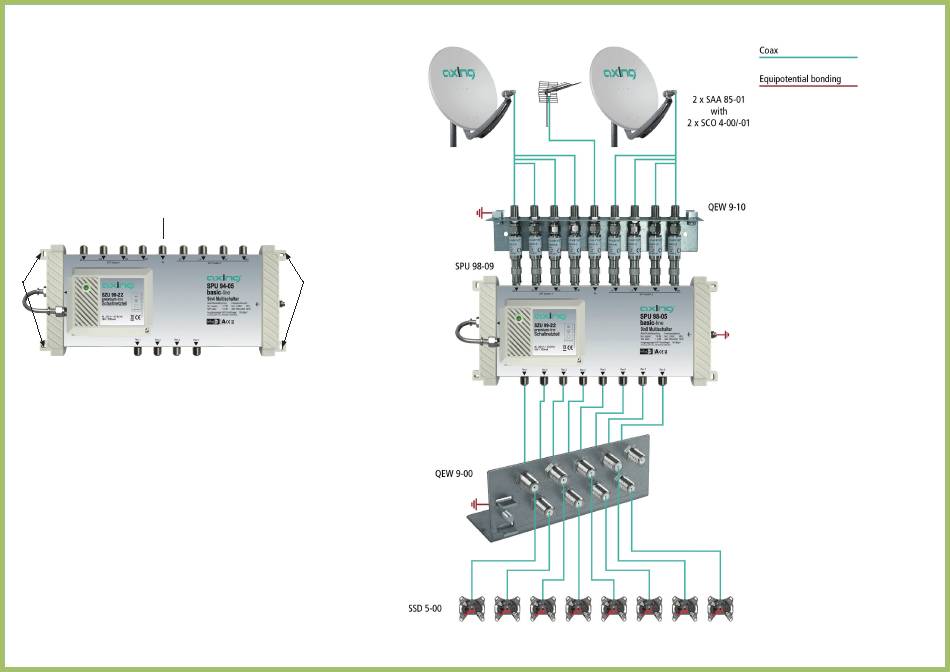

The picture shows an application example for distribution of 4 SAT IF polariza-
tion levels including terrestrial signals (e.g FM radio).
Equipotential bonding and Mounting:
To avoid dangerous power surges (e.g. risk of fire and danger of life) the
devices must be connected to the equipotential bonding according to EN
60728-11.
 Use the equipotential bonding connection at the device (1).
 To connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. QEW earthing angles at the inputs and outputs of the
device.
 Use the included mounting screws and the mounting holes of the device
(2).
Input (TERR)
Inputs (SAT system 1) Inputs (SAT system 2)
2
Subscriber outputs
RF-Installation:
 Connect the SAT inputs of the multiswitch to the LNBs of your SAT recepti-
on antenna. Connect the output signals of a terrestrial amplifier or a CATV
amplifier to the terrestrial input.
 Connect the outputs multiswitch to the antenna sockets. Use highly shiel-
ded coaxial cables with F connectors. Suitable cables and connectors can
be found in the current AXING catalogue or under www.axing.com.
