GB

OPERATING CONTROLS

1 Water injection head for cordless drills,
for connection to Rodia® tile drill bits
Ø 4 - Ø 68 mm
2 Cordless drill connection
3 Locking screw
4 Drill bit adapter
5 Water tap
6 Grip
7 Water hose connection
8 Socket head screwdriver 3 mm
9 Water hose coupling
10 Water tank 5l .*
11 Drill guide*
12 Tile drill bits*
13 Water collection ring*
* Not all of the accessories illustrated
or described are included as standard
delivery .

SAFETY GUIDELINES

The definitions below describe the level
of severity for each warning . Please read
the operating manual and pay attention to
these symbols .
DANGER
Indicates an potentially hazard-
ous situation which, if not
avoided, will result in death or
serious injury.
WARNING
Indicates an potentially hazard-
ous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
Indicates an potentially hazard-
ous situation which, if not
avoided, may result in minor or
moderate injury.
UDA 68
NOTE
Indicates a practice not related to
personal injury which, if not
avoided, may result in property
damage.

INTENDED USE

Universal Tile Drill Adapter for precise
holes up to Ø68 mm in Porcelain,
Ceramic Tile, Marble, Granite, etc .
Fits standard cordless drills with variable
speed control, at the highest speed
level and with the maximum slip setting .
The injection head must be used in
combination with a water tank or a
connection to the water supply . For wet
use of Rodia® tile drille bits .

BEFORE USE

When drilling through walls or floors,
make absolutely sure that there are no
obstacles in the adjoining rooms and
cordon off the building site .

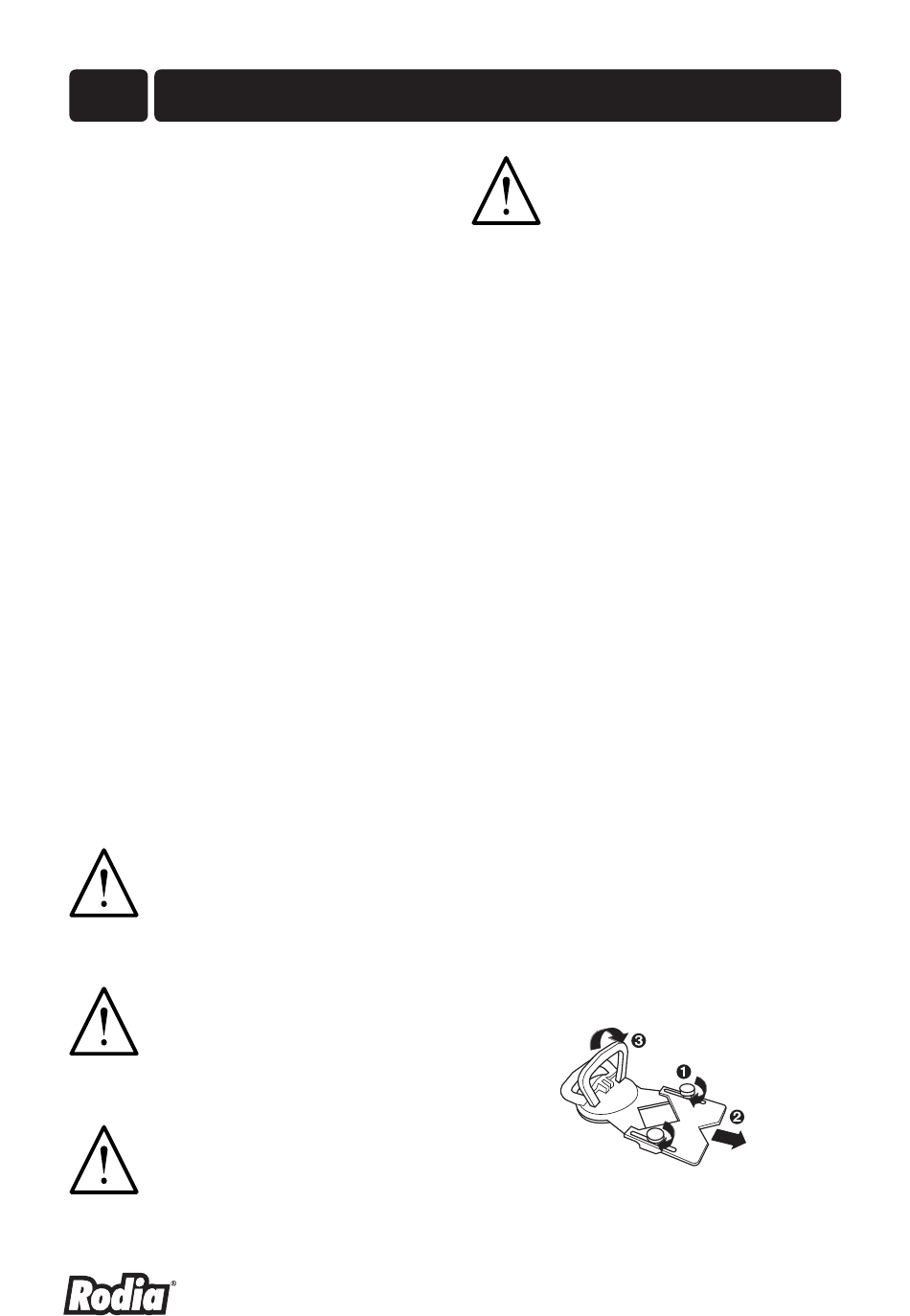

INITIAL OPERATION

• Use the machine in combination with a
water tank 10 or direct connection to
the main water supply .
• The use of a drill guide 11 is
recommended .
8
