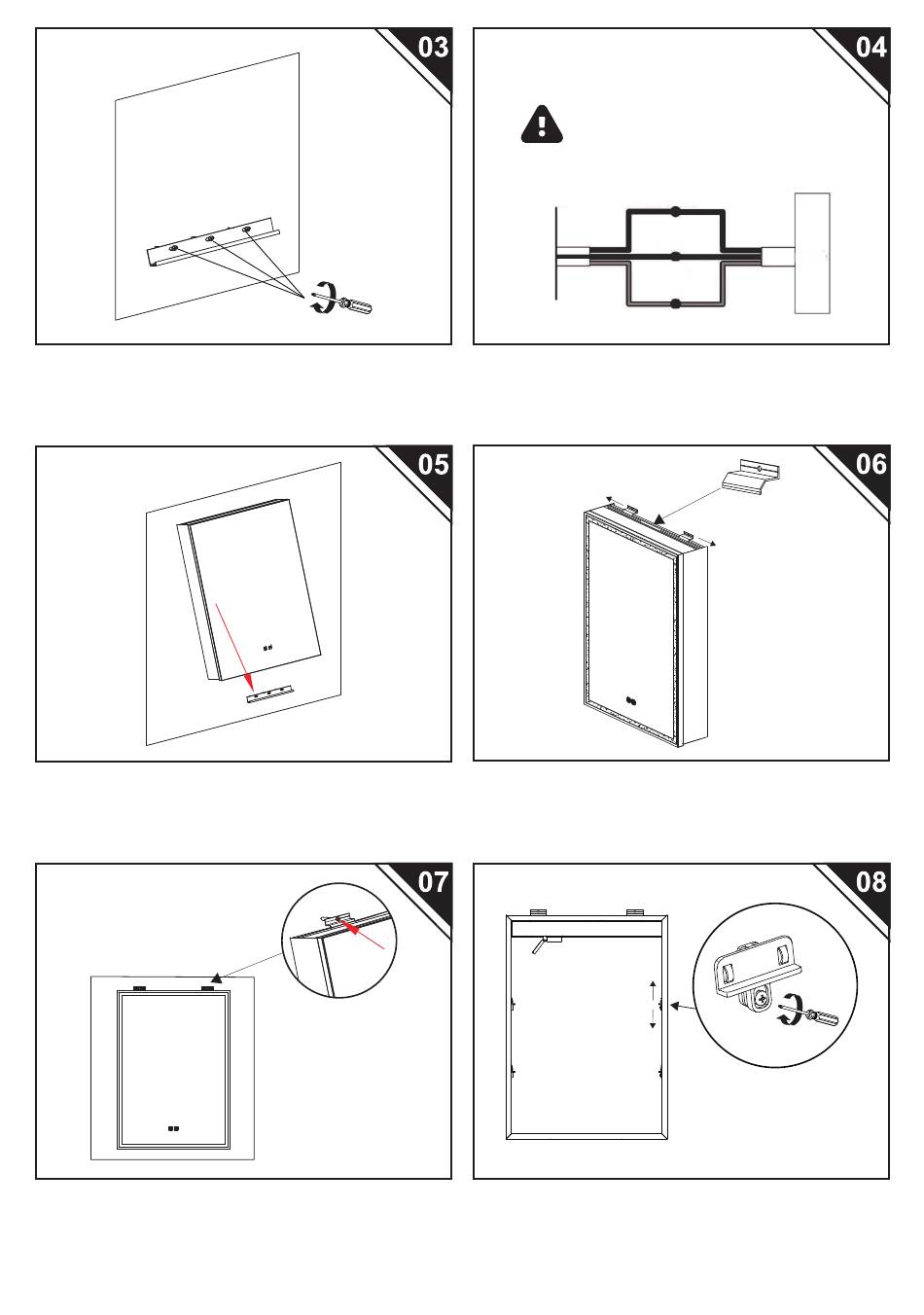

3. Screw the strip bracket to the wall.
5. The bottom slot of the mirror cabinet is
installed on the long bracket.
7. Screw the short bracket to the wall.
ATTENTION:
PLEASE CUT OFF THE MAIN POWER SUPPLY
BEFORE WIRING!
WARNING
LIVE (usually Brown)
WALL
(usually Yellow)
NEUTRAL (usually Blue)
4. Connect the mirror cabinet with the main
supply.
6. The short bracket is mounted on the
cabinet through the center chute.
8. Use a screwdriver to adjust the moving
laminates to a proper height.
3
MIRROR
GROUND
