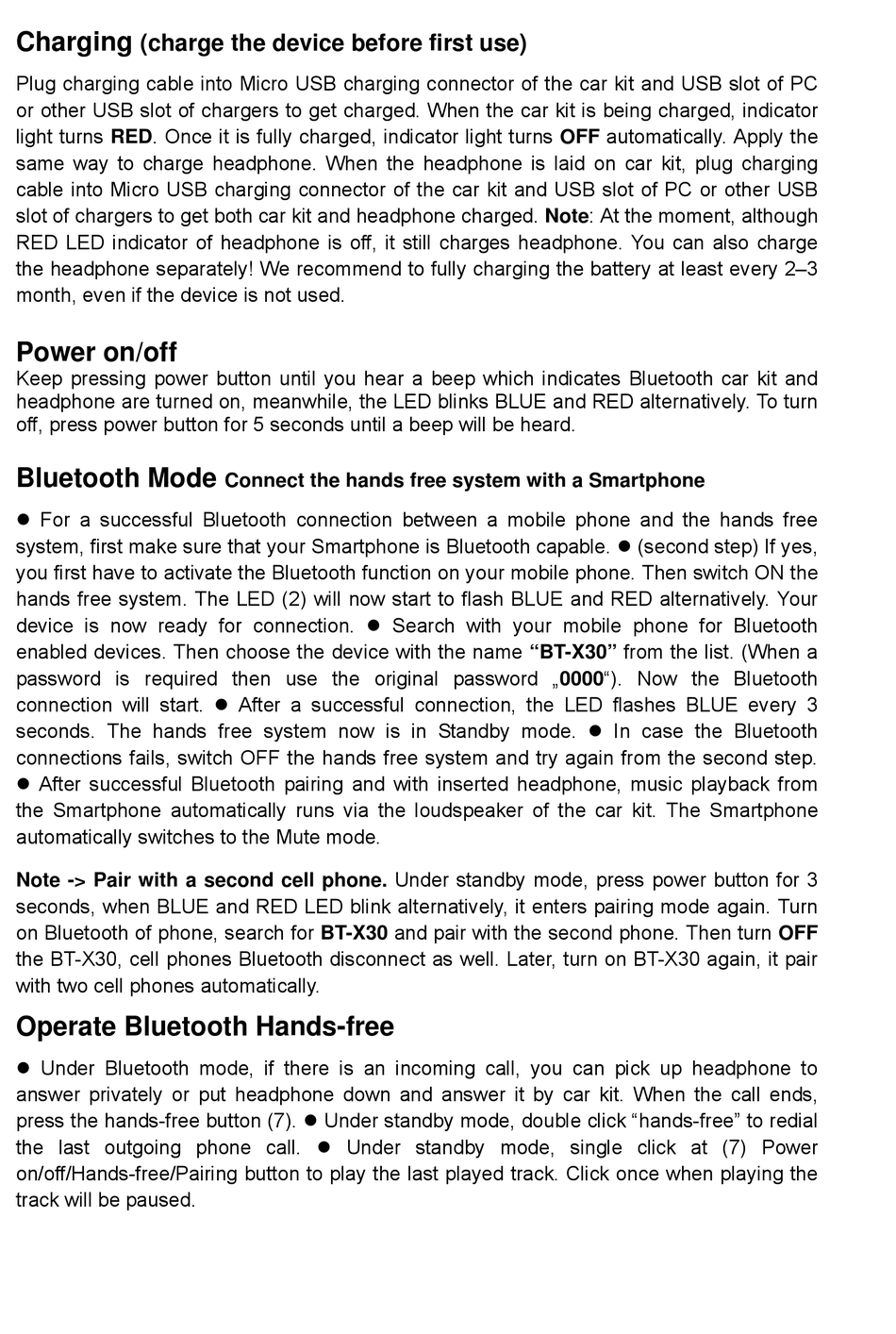

Technaxx BT-X30 Gebrauchsanleitung Seite 7

Charging
(charge the device before first use)
Plug charging cable into Micro USB charging connector of the car kit and USB slot of PC
or other USB slot of chargers to get charged. When the car kit is being charged, indicator
light turns RED. Once it is fully charged, indicator light turns OFF automatically. Apply the
same way to charge headphone. When the headphone is laid on car kit, plug charging
cable into Micro USB charging connector of the car kit and USB slot of PC or other USB
slot of chargers to get both car kit and headphone charged. Note: At the moment, although
RED LED indicator of headphone is off, it still charges headphone. You can also charge
the headphone separately! We recommend to fully charging the battery at least every 2–3
month, even if the device is not used.
Power on/off
Keep pressing power button until you hear a beep which indicates Bluetooth car kit and
headphone are turned on, meanwhile, the LED blinks BLUE and RED alternatively. To turn
off, press power button for 5 seconds until a beep will be heard.
Bluetooth Mode
Connect the hands free system with a Smartphone
 For a successful Bluetooth connection between a mobile phone and the hands free
system, first make sure that your Smartphone is Bluetooth capable.  (second step) If yes,
you first have to activate the Bluetooth function on your mobile phone. Then switch ON the
hands free system. The LED (2) will now start to flash BLUE and RED alternatively. Your
device is now ready for connection.  Search with your mobile phone for Bluetooth
enabled devices. Then choose the device with the name "BT-X30" from the list. (When a
password is required then use the original password „0000"). Now the Bluetooth
connection will start.  After a successful connection, the LED flashes BLUE every 3
seconds. The hands free system now is in Standby mode.  In case the Bluetooth
connections fails, switch OFF the hands free system and try again from the second step.
 After successful Bluetooth pairing and with inserted headphone, music playback from
the Smartphone automatically runs via the loudspeaker of the car kit. The Smartphone
automatically switches to the Mute mode.
Note -> Pair with a second cell phone. Under standby mode, press power button for 3
seconds, when BLUE and RED LED blink alternatively, it enters pairing mode again. Turn
on Bluetooth of phone, search for BT-X30 and pair with the second phone. Then turn OFF
the BT-X30, cell phones Bluetooth disconnect as well. Later, turn on BT-X30 again, it pair
with two cell phones automatically.
Operate Bluetooth Hands-free
 Under Bluetooth mode, if there is an incoming call, you can pick up headphone to
answer privately or put headphone down and answer it by car kit. When the call ends,
press the hands-free button (7).  Under standby mode, double click "hands-free" to redial
the last outgoing phone call.  Under standby mode, single click at (7) Power
on/off/Hands-free/Pairing button to play the last played track. Click once when playing the
track will be paused.
