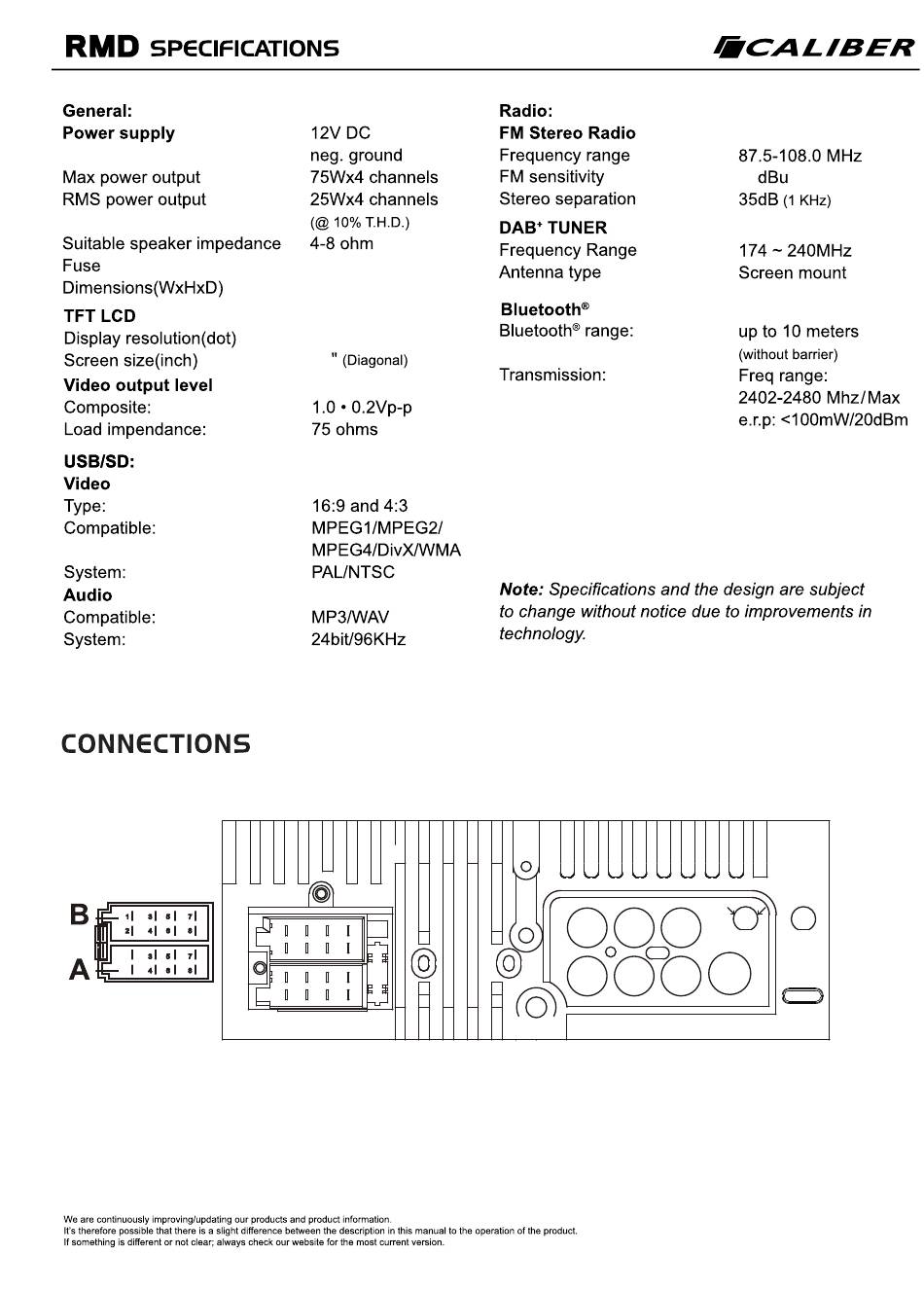

Caliber RMD B07DAB Schnellstartanleitung Seite 2

1
B
2
A
A1. --
A2. --
A3. SWC / Key 01
A4. Memory +12V Battery (Yellow)
A5. Remote Out +12V (Blue)
A6. Illumination (Orange)
A7. ACC +12V Ignition key (Red)
A8. Ground (Black)
15A
184 x 104 x 150mm
1024(W) x 600(H)
7
3 5 7
4 6 8
15A
3 5 7
4 6 8
B1. Rear right speaker +(purple)
B2. Rear right speaker -(purple/black)
B3. Front right speaker +(grey)
B4. Front right speaker -(grey/black)
B5. Front left speaker +(white)
B6. Front left speaker -(white/black)
B7. Rear left speaker +(green)
B8. Rear left speaker -(green/black)
C1 C2 C3
C4 C5 C6
C11
C1.Audio Out (Right) C7. Reversing (Green)
C2.Video Out 1 C8. Handbrake (Brown)
C3.Video In C9. FM Antenna
C4.Audio Out (Left) C10. DAB+ Antenna
C5.Video Out 2 C11. External Microphone
C6.Rear View Camera In C12. USB A
18
C10
C7 C8
C9
C12
