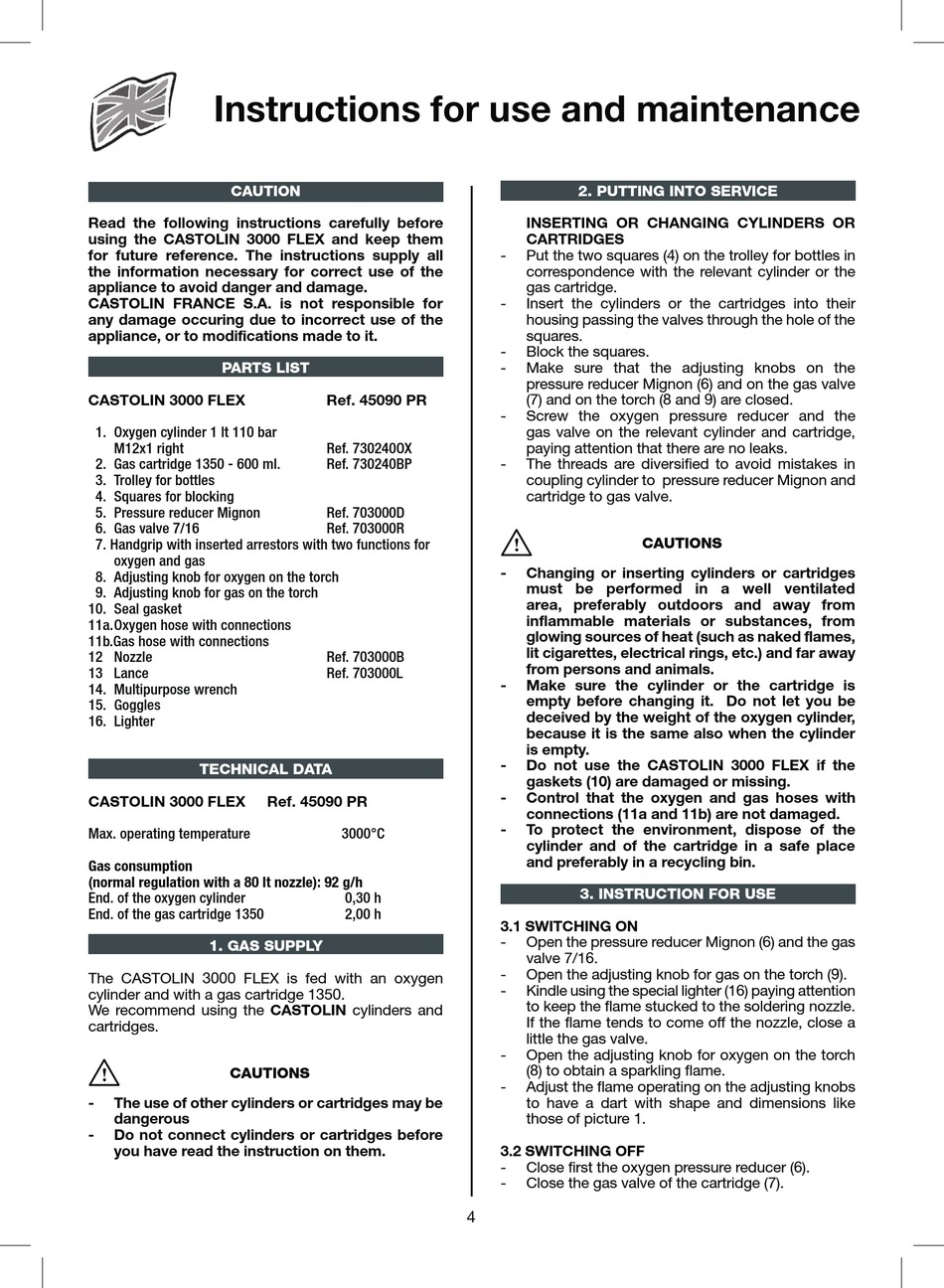

Instructions for use and maintenance
CAUTION
Read the following instructions carefully before
using the CASTOLIN 3000 FLEX and keep them
for future reference. The instructions supply all
the information necessary for correct use of the
appliance to avoid danger and damage.
CASTOLIN FRANCE S.A. is not responsible for
any damage occuring due to incorrect use of the
appliance, or to modifications made to it.

PARTS LIST

CASTOLIN 3000 FLEX
1. Oxygen cylinder 1 lt 110 bar
M12x1 right
2. Gas cartridge 1350 - 600 ml.
3. Trolley for bottles
4. Squares for blocking
5. Pressure reducer Mignon
6. Gas valve 7/16
7. Handgrip with inserted arrestors with two functions for
oxygen and gas
8. Adjusting knob for oxygen on the torch
9. Adjusting knob for gas on the torch
10. Seal gasket
11a. Oxygen hose with connections
11b.Gas hose with connections
12 Nozzle
13 Lance
14. Multipurpose wrench
15. Goggles
16. Lighter

TECHNICAL DATA

CASTOLIN 3000 FLEX
Max. operating temperature
Gas consumption
(normal regulation with a 80 lt nozzle): 92 g/h
End. of the oxygen cylinder
End. of the gas cartridge 1350
1. GAS SUPPLY
The CASTOLIN 3000 FLEX is fed with an oxygen
cylinder and with a gas cartridge 1350.
We recommend using the CASTOLIN cylinders and
cartridges.
i
CAUTIONS
- The use of other cylinders or cartridges may be
dangerous
- Do not connect cylinders or cartridges before
you have read the instruction on them.
Ref. 45090 PR
Ref. 730240OX
Ref. 730240BP
Ref. 703000D
Ref. 703000R
Ref. 703000B
Ref. 703000L
Ref. 45090 PR
3000°C
0,30 h
2,00 h
2. PUTTING INTO SERVICE
O SERVICE
INSERTING OR CHANGING CYLINDERS OR
CARTRIDGES
- Put the two squares (4) on the trolley for bottles in
correspondence with the relevant cylinder or the
gas cartridge.
- Insert the cylinders or the cartridges into their
housing passing the valves through the hole of the
squares.
- Block the squares.
- Make sure that the adjusting knobs on the
pressure reducer Mignon (6) and on the gas valve
(7) and on the torch (8 and 9) are closed.
- Screw the oxygen pressure reducer and the
gas valve on the relevant cylinder and cartridge,
paying attention that there are no leaks.
- The threads are diversified to avoid mistakes in
coupling cylinder to pressure reducer Mignon and
cartridge to gas valve.
i
CAUTIONS
- Changing or inserting cylinders or cartridges
must be performed in a well ventilated
area, preferably outdoors and away from
inflammable materials or substances, from
glowing sources of heat (such as naked flames,
lit cigarettes, electrical rings, etc.) and far away
from persons and animals.
- Make sure the cylinder or the cartridge is
empty before changing it. Do not let you be
deceived by the weight of the oxygen cylinder,
because it is the same also when the cylinder
is empty.
- Do not use the CASTOLIN 3000 FLEX if the
gaskets (10) are damaged or missing.
- Control that the oxygen and gas hoses with
connections (11a and 11b) are not damaged.
- To protect the environment, dispose of the
cylinder and of the cartridge in a safe place
and preferably in a recycling bin.
3. INSTRUCTION FOR USE
3.1 SWITCHING ON
- Open the pressure reducer Mignon (6) and the gas
valve 7/16.
- Open the adjusting knob for gas on the torch (9).
- Kindle using the special lighter (16) paying attention
to keep the flame stucked to the soldering nozzle.
If the flame tends to come off the nozzle, close a
little the gas valve.
- Open the adjusting knob for oxygen on the torch
(8) to obtain a sparkling flame.
- Adjust the flame operating on the adjusting knobs
to have a dart with shape and dimensions like
those of picture 1.
3.2 SWITCHING OFF
- Close first the oxygen pressure reducer (6).
- Close the gas valve of the cartridge (7).
4
