Orion HCCA Serie Bedienungsanleitung

Vorschau ausblenden
Inhaltsverzeichnis

Quicklinks

Diese Anleitung herunterladen
All manuals and user guides at all-guides.com

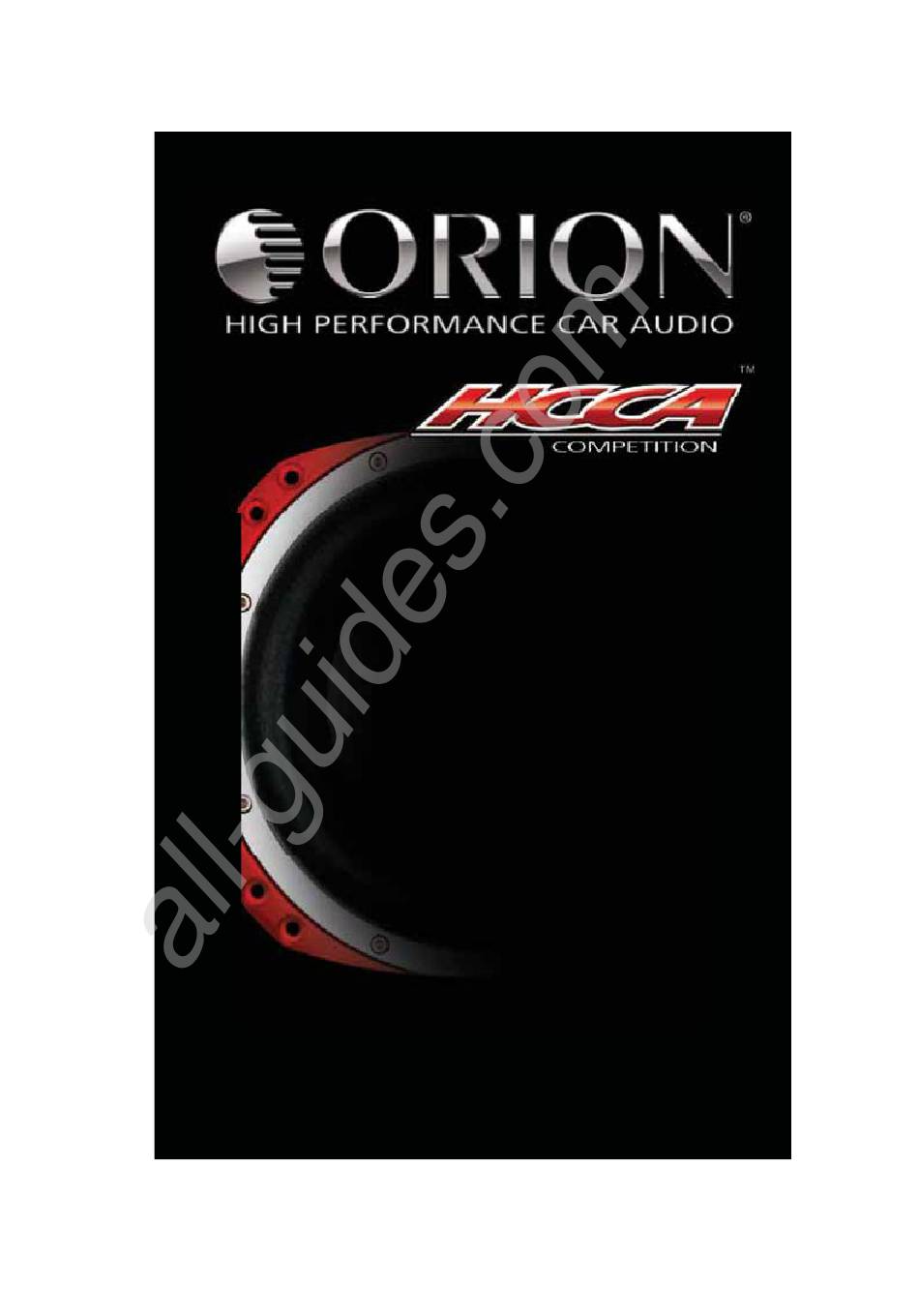

Sub woofer
MODEL
HCCA102
HCCA104
HCCA122
HCCA124
HCCA152
HCCA154
OWNER'S MANUAL
Inhaltsverzeichnis
loading

Verwandte Anleitungen für Orion HCCA Serie

Inhaltszusammenfassung für Orion HCCA Serie

  • Seite 1 All manuals and user guides at all-guides.com Sub woofer MODEL HCCA102 HCCA104 HCCA122 HCCA124 HCCA152 HCCA154 OWNER'S MANUAL...

  • Seite 2: Inhaltsverzeichnis

    All manuals and user guides at all-guides.com CONTENTS English ............... 1 .

  • Seite 3: English

    All manuals and user guides at all-guides.com...

  • Seite 4: Introduction

    They are available in standard 10”, 12” and 15” sizes. We at Orion strive to give you all the latest up to date information about this product. What we can’t give you in this manual is personal installation or technical experience.

  • Seite 5: Installation

    Authorized Orion Dealer for technical assistance. Orion dealers are trained professionals dedicated to extracting the maximum performance out of your Orion system. If you decide to install this speaker system yourself, please read the entire section on sealed and vented enclosures before starting your installation.
  • Seite 6 All manuals and user guides at all-guides.com Polypropylene dust cap - moisture and UV resistant. Tall, wide, balanced, NBR Foam (high density expanded polyester foam) surround for linear controlled long excursion using a Tri Radius symmetrical edge design optimized on non-linear FEA. Paper cone - moisture and UV resistant.

  • Seite 7: Re-Cone Kit

    HCCA154ck ORION HCCA 15” 4 OHM Re-Cone Kit WIRING CONFIGURATIONS The following illustrations provide guidelines on properly connecting your HCCA Orion woofer to an Orion amplifier for maximum power and performance using COMMONPARALLEL,ANDSERIES/PARALLELWIRINGCONFIGURATIONS. Recommended Amplifier Power 1 woofer 1,200 to 4,000 watts...

  • Seite 8: Series-One Speaker (Dual 2 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Series—One Speaker (dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with voice coils in connected in series results in a 4 ohm load to the amplifier. Figure 2 Figura 2 Abbildung 2 1.

  • Seite 9: Parallel-One Speaker (Dual 2 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Parallel—One Speaker (dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with voice coils in parallel results in a 1 ohm load to the amplifier. Figure 3 Figura 3 Abbildung 3 1.

  • Seite 10: Parallel-One Speaker (Dual 4 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Parallel—One Speaker (dual 4 ohm voice coils) One dual 4 ohm voice coil woofer with voice coils in parallel results in a 2 ohm load to the amplifier. Figure 4 Figura 4 Abbildung 4 1.

  • Seite 11: Parallel-Two Speakers (Dual 4 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Parallel—Two Speakers (dual 4 ohm voice coils) Two dual 4 ohm voice coil woofers with voice coils in parallel and the two woofers in parallel results in a 1 ohm load to the amplifier. Figure 5 Figura 5 Abbildung 5...

  • Seite 12: Series-Parallel-Two Speakers (Dual 2 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Series-Parallel—Two Speakers (dual 2 ohm voice coils) Note: Verify and ensure that the woofer wiring is connected as shown with the negative connection from the first woofer coil connected to the positive connection of the second woofer coil. Two dual 2 ohm voice coil woofers with voice coils in series and then parallel the two series woofers results in a 2 ohm load to the amplifier.

  • Seite 13: Series-Parallel-Three Speakers (Dual 4 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Series-Parallel—Three Speakers (dual 4 ohm voice coils) Note: Verify and ensure that the woofer wiring is connected as shown with the negative connection from the first woofer coil connected to the positive connection of the second woofer coil. Three dual 4 ohm voice coil woofer with voice coils of each woofer wired in series and then parallel the three woofers for a resulting 2.67 ohms.load to the amplifier.

  • Seite 14: Series-Parallel-Four Speakers (Dual 4 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Series-Parallel—Four Speakers (dual 4 ohm voice coils) Note: Verify and ensure that the woofer wiring is connected as shown with the negative connection from the first woofer coil connected to the positive connection of the second woofer coil. Four dual 4 ohm voice coil woofers should be wired with the voice coils on each woofer in series and then parallel the four woofers for a resulting 2 ohm load to the amplifier.

  • Seite 15: Series-Parallel-Four Speakers (Dual 2 Ohm Voice Coils)

    All manuals and user guides at all-guides.com Series-Parallel—Four Speakers (dual 2 ohm voice coils) Note: Verify and ensure that the woofer wiring is connected as shown with the negative connection from the first woofer coil connected to the positive connection of the second woofer coil. Four dual 2 ohm voice coil woofers should be wired with the voice coils on each woofer in series and then parallel the four woofers for a resulting 1 ohm load to the amplifier.

  • Seite 16: Amplifiers-One Speaker (Dual 2 Ohm Voice Coils)

    All manuals and user guides at all-guides.com 2 Amplifiers—One Speaker (dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 2 ohm load to each amplifier. Figure 10 Figura 10 Abbildung 10...

  • Seite 17: Amplifiers-One Speaker (Dual 4 Ohm Voice Coils)

    All manuals and user guides at all-guides.com 2 Amplifiers—One Speaker (dual 4 ohm voice coils) One dual 4 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 4 ohm load to each amplifier. Figure 11 Figura 11 Abbildung 11...

  • Seite 18: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS Model/Part Number HCCA102 HCCA104 HCCA122 Size 10” 10” 12” Thiele/Small Parameters Fs (free-air resonance, Hz) 42.51 44.3 32.3 Vas (equivalent compliance, cu. ft.) 0.31029 0.31699 0.89274 Vas (equivalent compliance, liters) 8.79 8.98 25.29 Qms (Q, mechanical) 7.16...

  • Seite 19: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS Model/Part Number HCCA124 HCCA152 HCCA154 Size 12” 15” 15” Thiele/Small Parameters Fs (free-air resonance, Hz) 33.2 28.13 30.02 Vas (equivalent compliance, cu. ft.) 0.93157 2.95746 2.82259 Vas (equivalent compliance, liters) 26.39 83.78 79.96 Qms (Q, mechanical) 4.16...

  • Seite 20: Enclosure Details

    **** Electrical Parameters were calculated in series. ENCLOSURE DESIGN This section gives the basic description for a sealed enclosure. Orion HCCA woofers are designed for sealed enclosures and vented enclosures. Sealed enclosures are generally considered the most versatile for all music types and are the easiest to build.

  • Seite 21: Explanation Of Enclosure Specifications

    3dB. This is an important number when it comes to setting your a highpass filter or your ORION IntelliQ. The IntelliQ should be set at the same frequency as the “F3”as this will keep the speaker from damaging or what is know as overloading.

  • Seite 22: Hcca102 & 104 Sealed Enclosure

    All manuals and user guides at all-guides.com HCCA102 & 104 Sealed Enclosure Note: These Enclosures are designed for sound quality and offer very low tuning frequencies. If you are building a system where the goal is to listen to music, these are the enclosures to build.

  • Seite 23: Hcca102 & 104 Vented 800 To 1500 Watts Input

    All manuals and user guides at all-guides.com HCCA102 & 104 Vented 800 to 1500 Watts Input Note: These enclosures will deliver higher sound pressure levels than sealed enclosures. The perceived loudness will be lower than a sealed enclosure, although the metered number will be higher.

  • Seite 24: Hcca102 & 104 Vented 1500+ Watts Input

    All manuals and user guides at all-guides.com HCCA102 & 104 Vented 1500+ Watts Input Box Properties — Description — — Box Parameters — — Vents — Type: Vented Box 0.75 cu.ft No. of Vents V(total) = 1.007 cu.ft Vent shape = rectangle Shape: Prism, Square 42 Hz...

  • Seite 25: Hcca102 & 104 Vented Spl Enclosure Only

    All manuals and user guides at all-guides.com HCCA102 & 104 Vented SPL Enclosure Only. Note: These SPL enclosures are for dB drag vehicles only!!!!! If music is played through this type of enclosure, the woofer will be damaged! Listed here are starting points, experimentation is the key to success.

  • Seite 26: Hcca122 & 124 Sealed Enclosures

    All manuals and user guides at all-guides.com HCCA122 & 124 Sealed Enclosures. Note: These Enclosures are designed for sound quality and offer very low tuning frequencies. If you are building a system where the goal is to listen to music, these are the enclosures to build.

  • Seite 27: Hcca122 & 124 Vented 1200 To 2000 Watts Input

    All manuals and user guides at all-guides.com HCCA122 & 124 Vented 1200 to 2000 Watts Input Note: These enclosures will deliver higher sound pressure levels than sealed enclosures. The perceived loudness will be lower than a sealed enclosure, although the metered number will be higher.

  • Seite 28: Hcca122 & 124 Vented 2000+ Watts Input

    All manuals and user guides at all-guides.com HCCA122 & 124 Vented 2000+ Watts Input Box Properties — Box Parameters — Vb — Vents — — Description — Type: Vented Box 1.5 cu.ft No. of Vents Shape: Prism, Square V(total) = 2.65 cu.ft Vent shape = rectangle...

  • Seite 29: Hcca122 & 124 Vented Spl Enclosure Only

    All manuals and user guides at all-guides.com HCCA122 & 124 Vented SPL Enclosure Only. Note: These SPL enclosures are for dB drag vehicles only!!!!! If music is played through this type of enclosure, the woofer will be damaged! Listed here are starting points, experimentation is the key to success.

  • Seite 30: Hcca152 & 154 Sealed Enclosures

    All manuals and user guides at all-guides.com HCCA152 & 154 Sealed Enclosures. Note: These Enclosures are designed for sound quality and offer very low tuning frequencies. If you are building a system where the goal is to listen to music, these are the enclosures to build.

  • Seite 31: Hcca152 & 154 Vented 1200 To 2000 Watts Input

    All manuals and user guides at all-guides.com HCCA152 & 154 Vented 1200 to 2000 Watts Input Note: These enclosures will deliver higher sound pressure levels than sealed enclosures. The perceived loudness will be lower than a sealed enclosure, although the metered number will be higher.

  • Seite 32: Hcca152 & 154 Vented 2000+ Watts Input

    All manuals and user guides at all-guides.com HCCA152 & 154 Vented 2000+ Watts Input Box Properties — Box Parameters — — Vents — — Description — 3.05 cu.ft No. of Vents Type: Vented Box Shape: Prism, Square V(total) = 4.491 cu.ft Vent shape = rectangle 38 Hz...

  • Seite 33: Hcca152 & 154 Vented Spl Enclosure Only

    All manuals and user guides at all-guides.com HCCA152 & 154 Vented SPL Enclosure Only. Note: These SPL enclosures are for dB drag vehicles only!!!!! If music is played through this type of enclosure, the woofer will be damaged! Listed here are starting points, experimentation is the key to success.
  • Seite 34 All manuals and user guides at all-guides.com © 2012 MD Audio Engineering. All rights...

  • Seite 35: Français

    Orion agréé. Les revendeurs Orion sont des professionnels compétents spécialisés, capables d’obtenir les meilleures performances des systèmes Orion. Si vous décidez d’installer vous-même ce système de haut-parleurs, veuillez lire toute la section relative aux caissons clos et aux caissons à...
  • Seite 36 All manuals and user guides at all-guides.com Calotte pare-poussière en polypropylène, résistante à l’humidité et aux UV. Suspension haute, large et équilibrée en mousse NBR (mousse de polyester expansé haute densité) permettant une longue course contrôlée grâce à une conception à bord symétrique triple rayon optimisée suivant analyse non linéaire par éléments finis.
  • Seite 37 Kit de remplacement du cône ORION HCCA 15” 4 ohms CONFIGURATIONS DE CÂBLAGE Les illustrations ci-dessous indiquent comment raccorder correctement le haut-parleur de graves Orion HCCA à un amplificateur Orion de façon à obtenir le maximum de puissance et de performances, en utilisant les configurations de câblage courantes PARALLÒLESETSÏRIE/PARALLÒLE.
  • Seite 38 All manuals and user guides at all-guides.com Parallèle – Un haut-parleur (deux bobines mobiles de 2 ohms) Voir la figure 3 à la page 7 Un haut-parleur de graves à deux bobines mobiles de 2 ohms raccordées en parallèle constitue une charge de 1 ohm pour l’amplificateur. 1.
  • Seite 39 All manuals and user guides at all-guides.com négative (-) de la première bobine à la borne positive (+) de la seconde. 2. Raccordez la borne positive (+) de la première bobine de chaque haut-parleur de graves à la borne positive (+) de l’amplificateur. Raccordez la borne négative (-) de la seconde bobine de chaque haut-parleur de graves à...
  • Seite 40 All manuals and user guides at all-guides.com Quatre haut-parleurs de graves en parallèle avec pour chacun les deux bobines mobiles de 2 ohms raccordées en série constituent une charge de 1 ohm pour l’amplificateur. 1. Configurez chaque haut-parleur de graves en série en raccordant la borne négative (-) de la première bobine à...
  • Seite 41 All manuals and user guides at all-guides.com SPÉCIFICATIONS Explication des caractéristiques techniques, voir les détails en pages 16 et 17 Modèle/Référence HCCA### Taille Paramètres Thiele/Small Fs (résonance à l’air libre, Hz) Vas (conformité équivalente, pieds-cubes) Vas (conformité équivalente, litres) Qms (Q, mécanique) Qes (Q, électrique) **** Qts (Q total haut-parleur) **** Re (résistance c.c., ohms) ****...
  • Seite 42 Cette section donne une description générale d’un caisson clos. Les haut-parleurs de graves Orion HCCA ont été conçus pour des caissons clos et des caissons à évent accordé. Les caissons clos sont en général considérés comme les plus polyvalents pour tous les types de musique, et les plus faciles à...
  • Seite 43 3 dB. Il s’agit d’une valeur importante pour le réglage du filtre passe-haut ou du dispositif ORION IntelliQ. Le dispositif IntelliQ doit être réglé à la fréquence « F3 » car cela permet d’éviter d’endommager le haut-parleur ou de le surcharger.
  • Seite 44 All manuals and user guides at all-guides.com Explication des diagrammes de caissons clos (voir les dimensions en pages 20, 24 et Caissons clos HCCA102 & 104 Caissons clos HCCA122 & 124 Caissons clos HCCA152 & 154 Remarque : Ces caissons, conçus en vue d’une qualité de son élevée, offrent de très basses fréquences d’accord.
  • Seite 45 All manuals and user guides at all-guides.com Explication des diagrammes de caissons à évent accordé (voir les dimensions en pages 21-23, 25-2 et 29-31) HCCA102 & 104 à évent accordé, entrée 800 à 1500 watts HCCA102 & 104 à évent accordé entrée de plus de 1500 watts HCCA122 &...
  • Seite 46 All manuals and user guides at all-guides.com Propriétés du caisson — Paramètres du caisson — — Évents — — Description — Nb d’évents = Type : Caisson à évent accordé Forme : Prisme, carré V(total) Forme évent = rectangle Extrémité évent = une affleura Hv = Wv = Remplissage...

  • Seite 47: Características

    Si no está seguro de sus capacidades de instalación, pídale asistencia técnica al distribuidor autorizado local de Orion. Los distribuidores de Orion son profesionales capacitados que se dedican a extraer el rendimiento máximo de los sistemas Orion. Si decide instalar este sistema de altavoces usted mismo, lea toda la sección sobre cajas selladas y ventiladas antes...
  • Seite 48 All manuals and user guides at all-guides.com Tapa de polipropileno contra el polvo; resistente a la humedad y a los rayos ultravioleta. Envolvente de espuma de Goma de Butadieno de Nitrilo (Nitrile Butadiene Rubber, NBR) alta, ancha y balanceada para grandes desplazamientos lineales controlados gracias al diseño de borde simétrico Tri Radius optimizado con Análisis de Elemento Finito (Finite Element Analysis, FEA) no lineal.
  • Seite 49 Kit de cambio de cono de ORION HCCA de 15 plg. y 4 Ω HCCA154ck CONFIGURACIONES DE CABLEADO Las siguientes ilustraciones contienen las pautas para conectar correctamente un woofer Orion HCCA a un amplificador Orion HCCA a fin de lograr el rendimiento y la POTENCIAMÉXIMOSCONCONEXIONESCOMUNESENPARALELOYENSERIE/PARALELO. Empfohlene Verstärkerleistung 1 woofer...
  • Seite 50 All manuals and user guides at all-guides.com Un woofer con 2 bobinas acústicas de 2 Ω y las bobinas acústicas en paralelo produce una carga de 1 Ω en el amplificador. 1. Conecte el woofer en paralelo conectando las dos terminales positivas (+) entre sí y las dos terminales negativas (-) entre sí.
  • Seite 51 All manuals and user guides at all-guides.com En serie/paralelo: tres altavoces (dos bobinas acústicas de 4 Ω cada uno) Vea la figura 7 en la página 11 Nota: Verifique y asegúrese de que el cableado del woofer es como se muestra: la terminal negativa de la bobina de un woofer conectada a la terminal positiva de la bobina del otro woofer.
  • Seite 52 All manuals and user guides at all-guides.com 2 amplificadores: un altavoz (dos bobinas acústicas de 2 Ω) Vea la figura 10 en la página 14 Un woofer con 2 bobinas acústicas de 2 Ω y cada bobina acústica conectada a su propio amplificador produce una carga de 2 Ω...
  • Seite 53 All manuals and user guides at all-guides.com ESPECIFICACIONES Traducción de las especificaciones, vea las páginas 16 y 17 para más detalles Modelo / Nº de pieza HCCA### Tamaño Parámetros Thiele/Small Fs (resonancia al aire libre, Hz) Vas (cumplimiento de equivalencia, pies3) Vas (cumplimiento de equivalencia, litros) Qms (Q, mecánico) Qes (Q, eléctrico)****...
  • Seite 54 **** Los parámetros eléctricos se calcularon en serie. $)3%»/$%,!#!*! Esta sección contiene una descripción básica de la caja sellada. Los woofers Orion HCCA han sido diseñados para cajas selladas y cajas con ventilación. En general, se considera que las cajas selladas son las más versátiles para todo tipo de música y las más fáciles de construir.
  • Seite 55 3 dB. Este es un número importante cuando se trata de ajustar el filtro de pasaaltas del ORION IntelliQ. El IntelliQ debe tener la frecuencia F3 para evitar dañar o sobrecargar el altavoz.
  • Seite 56 All manuals and user guides at all-guides.com Traducción del diagrama de la caja sellada (las medidas se encuentran en las páginas 20, 24 y 28) Cajas selladas HCCA102 y 104 Cajas selladas HCCA122 y 124. Cajas selladas HCCA152 y 154 Nota: Estas cajas se han diseñado para producir sonido de calidad y ofrecen fre- cuencias de sintonización muy bajas.
  • Seite 57 All manuals and user guides at all-guides.com Traducción del diagrama de la caja ventilada (las medidas se encuentran en las pági- nas 21-23, 25-27 y 29-31) Cajas ventiladas HCCA102 y 104 de 800 a 1500 W de entrada Cajas ventiladas HCCA122 y 124 de 1200 a 2000 W de entrada Cajas ventiladas HCCA152 y 154 de 1200 a 2000 W de entrada Cajas ventiladas HCCA102 y 104 de más de 1500 W de entrada Cajas ventiladas HCCA122 y 124 de más de 2000 W de entrada...
  • Seite 58 All manuals and user guides at all-guides.com Propiedades de la caja - Descripción - - Parámetros de la caja - - Respiraderos - de respiraderos = Tipo: caja con respiradero V(total) = Forma del respiradero = rectángulo Forma: prisma cuadrado Extremos del respiradero = uno al ras Fill - Dimensiones externas -...
  • Seite 59 Ein sorgfältiges Vorgehen bei der Installation garantiert Ihnen jahrelange Höchstleistungen. Wenn Sie sich nicht sicher sind, ob Sie die Installation selbst ausführen können, wenden Sie sich bitte an Ihren örtlichen Orion-Fachhändler. Orion-Händler haben ausgebildetes Fachpersonal, das aus Ihrem Orion-System das Maximum an Leistung herausholen kann.
  • Seite 60 All manuals and user guides at all-guides.com Feuchtigkeits- und UV-beständige Polypropylen-Abdeckung Hohe, breite, ausgeglichene Sicke aus NBR-Schaum (dichter Polyesterschaum) für linear kontrollierte, lange Auslenkung unter Verwendung eines Drei- Radius-Designs mit symmetrischen Kanten, das durch nichtlineare FEM optimiert wurde Feuchtigkeits- und UV-beständige Papiermembran Spezieller Rahmen aus Aluminiumguss Befestigungsschrauben für Zentriermembran Teil der Funktion zum Austausch der Schwingeinheit (8 Sechskantschrauben)

  • Seite 61: Kit Zum Austausch Der Schwingeinheit

    Schwingeinheit bei Ihrem Fachhändler erhältlich. Die Teilenummern für das jeweilige Modell finden Sie unten. Modell/ Beschreibung Teilenummer HCCA102ck ORION HCCA 10-Zoll 2 OHM Re-Cone Kit HCCA104ck ORION HCCA 10-Zoll 4 OHM Re-Cone Kit HCCA122ck ORION HCCA 12-Zoll 2 OHM Re-Cone Kit HCCA124ck...
  • Seite 62 All manuals and user guides at all-guides.com zweiten Tieftöner-Schwingspule mit dem negativen (-) Terminal am Verstärker. Parallel — Ein Lautsprecher (Doppelte 2-Ohm-Schwingspulen) Siehe Abbildung 3 auf Seite 7 Ein Tieftöner mit doppelten 2-Ohm-Schwingspulen, bei dem die Schwingspulen parallel geschaltet sind: Lastwiderstand von 1 Ohm am Verstärker. 1.
  • Seite 63 All manuals and user guides at all-guides.com Ohm am Verstärker. 1. Schließen Sie jeden Tieftöner in Reihe an, indem Sie das negative (-) Terminal der ersten Schwingspule mit dem positiven (+) Terminal der zweiten Spule verbinden. 2. Verbinden Sie das positive (+) Terminal der ersten Schwingspule am jeweiligen Tieftöner mit dem positiven (+) Terminal am Verstärker.
  • Seite 64 All manuals and user guides at all-guides.com Reihe/Parallel — Vier Lautsprecher (doppelte 2-Ohm-Schwingspulen) Siehe Abbildung 9 auf Seite 13 Hinweis: Stellen Sie sicher, dass die Tieftöneranschlüsse wie gezeigt vorgenommen wurden, wobei der negative Anschluss an der ersten Tieftöner-Schwingspule mit dem positiven Anschluss an der zweiten Tieftöner-Schwingspule verbunden ist. Vier Tieftöner mit doppelten 2-Ohm-Schwingspulen sollten so angeschlossen werden, dass die Schwingspulen an jedem Tieftöner in Reihe geschaltet und dann die vier Tieftöner parallel geschaltet werden: Lastwiderstand von 1 Ohm am Verstärker.

  • Seite 65: Technische Daten

    All manuals and user guides at all-guides.com TECHNISCHE DATEN Erklärung der Daten, Details siehe Seite 16 und 17. Modell/Teilenummer HCCA### Größe Thiele/Small-Parameter Fs (Freiluftresonanz, Hz) Vas (Äquivalente Nachgiebigkeit, Kubikfuß) Vas (Äquivalente Nachgiebigkeit, Liter) Qms (Q, mechanisch) Qes (Q, elektrisch)**** Qts (totaler Treiberwert für Q)**** Re (GS-Widerstand, Ohm)**** Z (Nennimpedanz, Ohm) Le (Induktivität, mh) ****...

  • Seite 66: Gehäusedesign

    GEHÄUSEDESIGN Dieser Abschnitt bietet eine allgemeine Beschreibung eines geschlossenen Gehäuses. Orion HCCA-Tieftöner können in geschlossenen Gehäusen und Bassreflexgehäusen eingesetzt werden.. Geschlossene Gehäuse gelten üblicherweise als für alle Arten von Musik passend und sind einfacher zu bauen. Sie bieten auch eine hohe Belastbarkeit über einen breiteren Frequenzbereich hinweg.

  • Seite 67: Erläuterung Der Gehäusedaten

    (als „Fb“ bezeichnet). Eine weitere wichtige Gehäusespezifikation ist „F3“, die Absenkungsfrequenz, bei der der Frequenzgang des Treibers um 3dB sinkt. Dieser Wert ist bei der Einstellung des Hochpassfilters oder Ihres ORION IntelliQ wichtig. Das IntelliQ sollte auf die Frequenz „F3“ eingestellt werden, da dies eine Beschädigung des Lautsprechers durch Überlastung verhindert.
  • Seite 68 All manuals and user guides at all-guides.com Erklärung des Diagramms für geschlossene Gehäuse (Maße finden Sie auf S. 20, 24 und 28) HCCA102 & 104 Geschlossenes Gehäuse HCCA122 & 124 Geschlossene Gehäuse HCCA152 & 154 Geschlossene Gehäuse Hinweis: Diese Gehäuse sind für die Soundqualität optimiert und bieten sehr niedrige Tuningfrequenzen.
  • Seite 69 All manuals and user guides at all-guides.com Erklärung des Diagramms für Bassreflexgehäuse (Maße finden Sie auf S. 21-23, 25-27 und 29-31) HCCA102 & 104 Bassreflex, 800 bis 1500 Watt Belastbarkeit HCCA122 & 124 Bassreflex, 1200 bis 2000 Watt Belastbarkeit HCCA152 & 154 Bassreflex, 1200 bis 2000 Watt Belastbarkeit HCCA102 &...
  • Seite 70 All manuals and user guides at all-guides.com Gehauseeigenschaften - Beschreibung - - Gehauseparameter - - Óffnungen - Zahl d Óffnungen = Typ: Bassreflexbox Form: Ouader V(total) = Form = Rechteck 1 bündige Óffnung = Hv = Wv = Füllung = Lv = - AuBenmaBe - - lnnenmaBe -...

  • Seite 71: Caratteristiche

    Se non si è certi di poter eseguire l’installazione correttamente, rivolgersi al rivenditore Orion, che sarà in grado di fornire l’assistenza tecnica necessaria. Se si decide di installare personalmente questi altoparlanti, prima di iniziare leggere l’intera sezione relativa alle casse sigillate e ventilate.
  • Seite 72 All manuals and user guides at all-guides.com Protezione parapolvere in polipropilene - resistente all’umidità e ai raggi ultravioletti. Sospensione in schiuma NBR (schiuma di poliestere espanso ad alta densità) alta, larga e bilanciata che assicura un’escursione lunga, controllata e lineare grazie al design del bordo simmetrico Tri Radius, ottimizzato tramite analisi a elementi finiti (FEA) non lineare.
  • Seite 73 ORION HCCA 15” Kit di ricostruzione del cono da 4 ohm CONFIGURAZIONI DI CABLAGGIO Le seguenti illustrazioni indicano come collegare il woofer HCCA Orion a un amplificatore Orion per ottenere la massima potenza e risultati ottimali utilizzando comuni configurazioni di cablaggio in parallelo o in serie-parallelo.
  • Seite 74 All manuals and user guides at all-guides.com Un diffusore in parallelo (con due bobine mobili da 2 ohm) Vedi Figura 3 a pagina 7 Un woofer con due bobine mobili da 2 ohm collegate in parallelo, applica un carico di 1 ohm all’amplificatore. 1.
  • Seite 75 All manuals and user guides at all-guides.com 2. Collegare il terminale positivo (+) della prima bobina di ciascun woofer al terminale positivo (+) dell’amplificatore e il terminale negativo (-) della seconda bobina di ciascun woofer al terminale negativo (-) dell’amplificatore. Tre diffusori in serie-parallelo (ciascuno con due bobine mobili da 4 ohm) Vedi Figura 7 a pagina 11 Nota: verificare che i woofer siano cablati come illustrato, con il terminale...
  • Seite 76 All manuals and user guides at all-guides.com terminale positivo (+) dell’amplificatore e il terminale negativo (-) della seconda bobina di ciascun woofer al terminale negativo (-) dell’amplificatore. Due amplificatori e un diffusore (con due bobine mobili da 2 ohm) Vedi Figura 10 a pagina 14 Un woofer con due bobine mobili da 2 ohm, ciascuna collegata a un amplificatore separato, applica un carico di 2 ohm a ciascun amplificatore.

  • Seite 77: Dati Tecnici

    All manuals and user guides at all-guides.com DATI TECNICI Per i dati tecnici dettagliati vedere alle pagine 16 e 17. Modello/Codice HCCA### Dimensioni Parametri Thiele/Small Fs (freq. di risonanza in aria libera, Hz) Vas (volume equivalente di cedevolezza, cu ft) Vas (volume equivalente di cedevolezza, litri) Qms (Q, meccanico) Qes (Q, elettrico) ****...
  • Seite 78 **** I parametri elettrici sono stati calcolati secondo la configurazione in serie. COSTRUZIONE DELLA CASSA Questa sezione contiene la descrizione base di una cassa sigillata. I woofer Orion HCCA sono concepiti per casse sia sigillate che ventilate. Le prime sono normalmente considerate le più...
  • Seite 79 è “F3”, cioè la frequenza alla quale la risposta del driver è attenuata di 3 dB. Questo valore è importante perché determina l’impostazione del filtro passa alto o dell’ORION IntelliQ, quest’ultimo va impostato a una frequenza uguale a “F3” per prevenire danni all’altoparlante causati da un eventuale sovraccarico.
  • Seite 80 All manuals and user guides at all-guides.com Legenda relativa alla cassa sigillata (vedi pagine 20, 24 e 28 per le misure) Cassa sigillata HCCA102 e 104 Casse sigillate HCCA122 e 124 Casse sigillate HCCA152 e 154 Nota: queste casse offrono una buona qualità del suono e frequenze di sintonizzazione molto basse.
  • Seite 81 All manuals and user guides at all-guides.com Legenda relativa alla cassa ventilata (vedi pagine 21-23, 25-27 e 29-31 per le misure) Casse ventilate HCCA102 e 104 con ingresso compreso tra 800 e 1500 watt Casse ventilate HCCA102 e 124 con ingresso compreso tra 1200 e 2000 watt Casse ventilate HCCA152 e 154 con ingresso compreso tra 1200 e 2000 watt Casse ventilate HCCA102 e 104 con ingresso maggiore di 1500 watt Casse ventilate HCCA102 e 124 con ingresso maggiore di 2000 watt...
  • Seite 82 All manuals and user guides at all-guides.com Proprieté della cassa - Descrizione - Tipo: - Parametri della cassa - Aper cassa ventilata Forma: ture- V(totale) prisma quadrato N di aperture = Forma apertura = rettangolare Estremitq apertura = una a filo Hv = Riempitivo = Wv =...

  • Seite 83: Instalação

    O cuidado durante o processo de instalação será recompensado com anos de satisfação com o desempenho. Caso não esteja certo quanto à sua capacidade para fazer a instalação, consulte o revendedor autorizado local da Orion para obter assistência técnica. Os revendedores da Orion são profissionais capacitados dedicados a maximizar o desempenho de seu sistema.
  • Seite 84 All manuals and user guides at all-guides.com Cobertura contra pó de polipropileno resistente à umidade e radiação ultravioleta. Surround de espuma de borracha nitrílica (NBR, espuma de poliéster expandida de alta densidade) grande, larga e balanceada para deslocamento linear longo controlado usando um design de borda simétrica tri-radial otimizada em análise FEA não linear.
  • Seite 85 Kit de troca de cone ORION HCCA 15” de 4 OHM CONFIGURAÇÕES DE CONEXÃO As próximas ilustrações apresentam instruções para conectar corretamente o woofer HCCA Orion a um amplificador Orion para obter máxima potência e desempenho USANDOCONFIGURA ÜESDELIGA ÎODECABOSPARALELAEEMSÏRIE/PARALELACOMUNS. Recommended Amplifier Power...
  • Seite 86 All manuals and user guides at all-guides.com Um woofer com duas bobinas móveis de 2 ohm conectadas em paralelo resulta em uma carga de 1 ohm ao amplificador. 1. Conecte o alto-falante em paralelo unindo os dois terminais positivos (+) juntos e os dois terminais negativos (-) juntos.
  • Seite 87 All manuals and user guides at all-guides.com Série-Paralela – Três alto-falantes (duas bobinas de 4 ohm) Ver figura 7 na página 11 Nota: Verifique e certifique-se de que os cabos dos woofers estejam conectados como mostrado, com o terminal negativo da bobina do primeiro woofer conectado ao terminal positivo da bobina do segundo woofer.
  • Seite 88 All manuals and user guides at all-guides.com Dois amplificadores – Um alto-falante (duas bobinas de 2 ohm) Ver figura 10 na página 14 Um woofer com duas bobinas móveis de 2 ohm com cada bobina conectada a um amplificador, resultando em uma carga de 2 ohm a cada amplificador. 1.

  • Seite 89: Especificações

    All manuals and user guides at all-guides.com ESPECIFICAÇÕES Tradução das especificações, ver detalhes nas páginas 16 e 17. Modelo/Número do produto HCCA### Tamanho Parâmetros Thiele/Small Fs (ressonância ao ar livre, Hz) Vas (conformidade equivalente, pés cúbicos) Vas (conformidade equivalente, litros) Qms (Q, mecânica) Qes (Q, elétrica) **** Qts (Q total do alto-falante) ****...
  • Seite 90 Esta seção apresenta a descrição básica de uma caixa selada. Os woofers HCCA da Orion são projetados para caixas seladas e ventiladas. As caixas seladas são geralmente consideradas as mais versáteis para todos os tipos de música e são as mais fáceis de construir.
  • Seite 91 é o parâmetro “F3”, a freqüência crítica na qual a resposta do driver cai 3dB. Este número é importante para configurar um filtro passa-alta ou o ORION IntelliQ. O IntelliQ deve ser configurado na mesma freqüência que o parâmetro “F3”, pois isso impedirá...
  • Seite 92 All manuals and user guides at all-guides.com Tradução do diagrama da caixa selada (ver as medidas nas páginas 20, 24 e 28) Caixas seladas HCCA102 e 104 Caixas seladas HCCA122 e 124 Caixas seladas HCCA152 e 154 Nota: Essas caixas são projetadas para maximizar a qualidade do som e propor- cionar freqüências de sintonização bem baixas.
  • Seite 93 All manuals and user guides at all-guides.com Tradução do diagrama da caixa ventilada (ver as medidas nas páginas 21-23, 25-27 e 29-31) Ventiladas HCCA102 e 104 com entrada de 800 a 1500 W Ventiladas HCCA102 e 104 com entrada de 1500+ W Ventiladas HCCA122 e 124 com entrada de 1200 a 2000 W Ventiladas HCCA122 e 124 com entrada de 2000+ W Ventiladas HCCA152 e 154 com entrada de 1200 a 2000 W...
  • Seite 94 All manuals and user guides at all-guides.com Propriedades da caixa - Descriéco - - Parametros da caixa - - Aberturas - de aberturas = Tipo: aixa ventilada V(total) Formato da abertura = retangular Formato: Prisma, quadrada Extremidades da abertura = uma alinha Enchimento = - Dimensoes externas - - Dimensoes internas -...

  • Seite 95: Warranty

    This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state. 920-0033 04-07 For more information on Orion products please visit www.orioncaraudio.com MD Audio Engineering is committed to delivering world class quality products and services that excite and delight our customers.
