2.2 Description
2-3 Installation
After assembly:
• Unscrew the thumb screw (2)
• Adjust the height
• Tighten firmly the thumb screw
Once these steps are achieved
• Install the equipment onto the shelf (1)
• Place the footswitch on the base plate
• Route the footswitch cord through the corresponding hole (3)
• Connect the footswitch cord to the back of the device
!
If adjusting the height, firmly hold the shelf when unscrewing the thumb screw.
Otherwise, they can move down sharply and injure your hands.
2-4 Characteristics
Weight :
Size H/W/D:
RD 160.iCart P.OPM.ENG.V1 11.04.2021
21 Kg
660x450x380mm

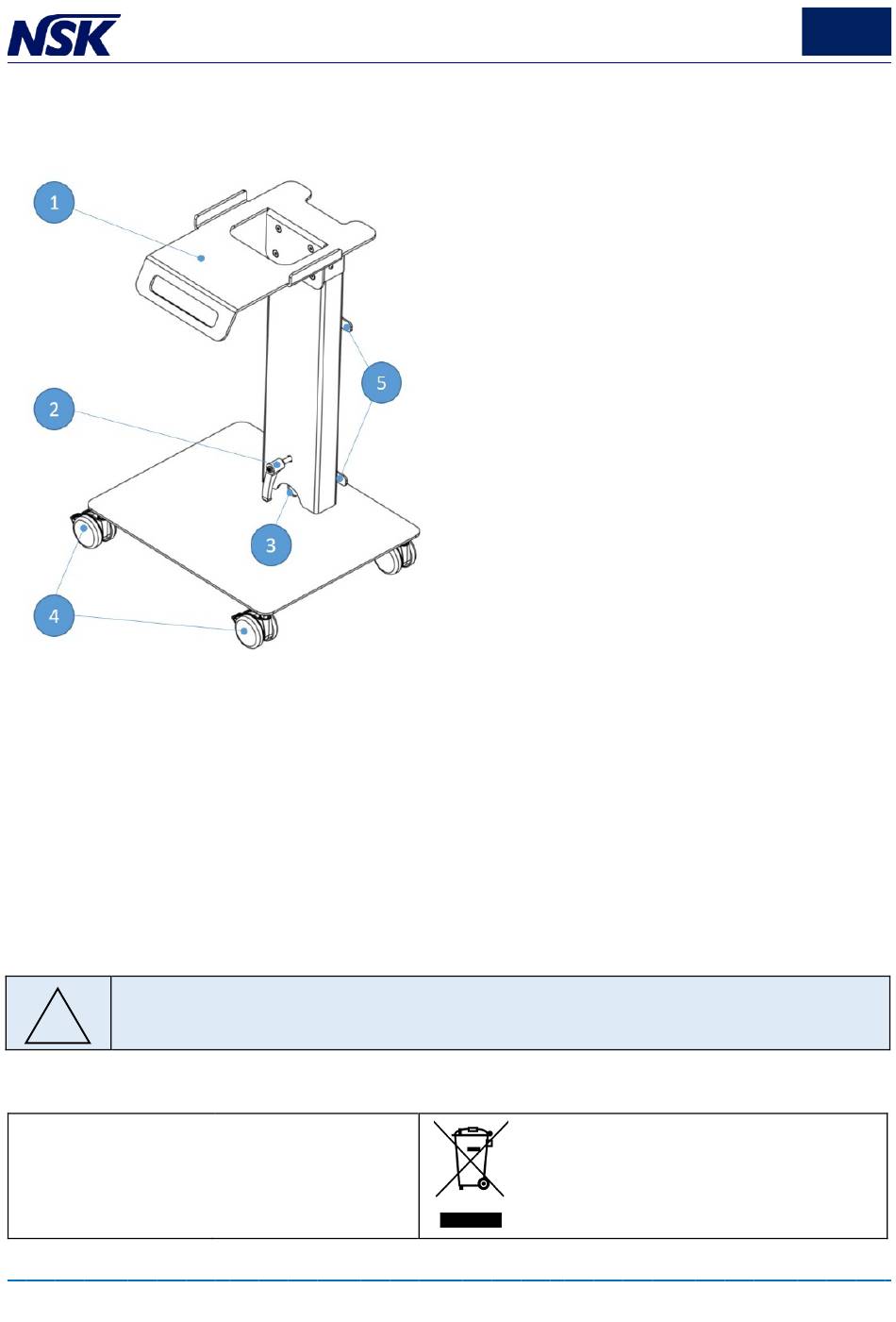

1- Shelf for NSK device
2- Thumb screw for height adjustment
3- Hole for foot control cord
4- Front wheels with brake
5- Reel for power cord
Do not waste in domestic bin. This symbol
indicates that this device should not be
discarded as unsorted waste but must be
sent to separate collection facilities for
recovery and recycling.
