3

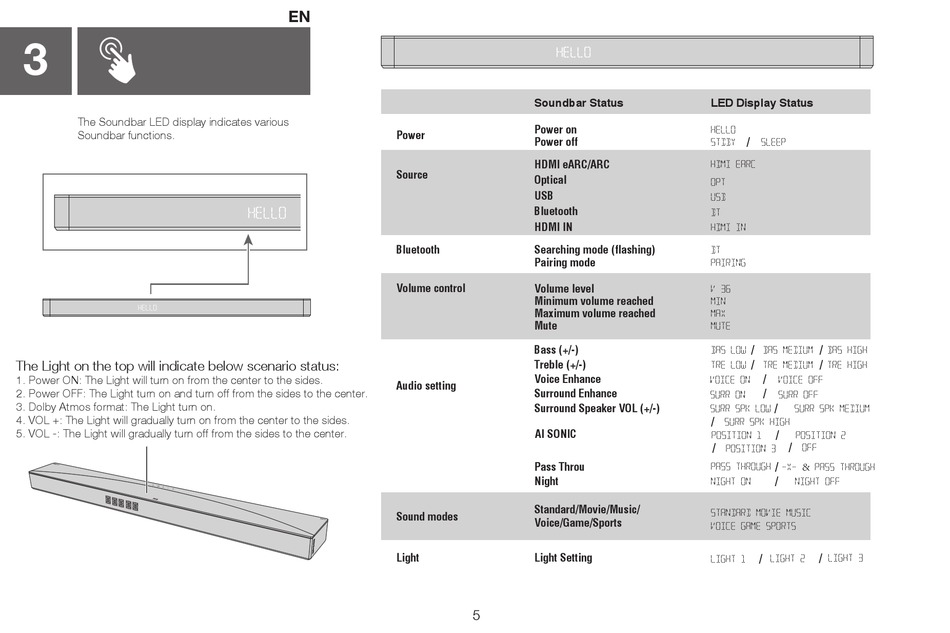

The Soundbar LED display indicates various
Soundbar functions.
HELLO
The Light on the top will indicate below scenario status:
1. Power ON: The Light will turn on from the center to the sides.
2. Power OFF: The Light turn on and turn off from the sides to the center.
3. Dolby Atmos format: The Light turn on.
4. VOL +: The Light will gradually turn on from the center to the sides.
5. VOL -: The Light will gradually turn off from the sides to the center.
EN
Power
Source
HELLO
Bluetooth
Volume control
Audio setting
Sound modes
Light
HELLO
Soundbar Status
Power on
Power off
HDMI eARC/ARC
Optical
USB
Bluetooth
HDMI IN
Searching mode (flashing)
Pairing mode
Volume level
Minimum volume reached
Maximum volume reached
Mute
Bass (+/-)
Treble (+/-)
Voice Enhance
Surround Enhance
Surround Speaker VOL (+/-)
AI SONIC
Pass Throu
Night
Standard/Movie/Music/
Voice/Game/Sports
Light Setting
5
LED Display Status
HELLO
/
STDBY sleep
HDMI EARC
OPT
USB
BT
HDMI IN
BT
PAIRING
V 36
MIN
MAX
MUTE
/ BAS MEDIUM / BAS HIGH
BAS LOW
/ TRE MEDIUM / TRE HIGH
TRE LOW
/
VOICE ON VOICE OFF
/
SURR ON SURR OFF
/
SURR SPK LOW SURR SPK MEDIUM
/ SURR SPK HIGH
/
POSITION 1 POSITION 2
/ OFF
/ POSITION 3
/
PASS THROUGH -X- & PASS THROUGH
/
NIGHT ON NIGHT OFF
standard MOVIE MUSIC
Voice game sports
/ light 3
/
light 1 light 2
