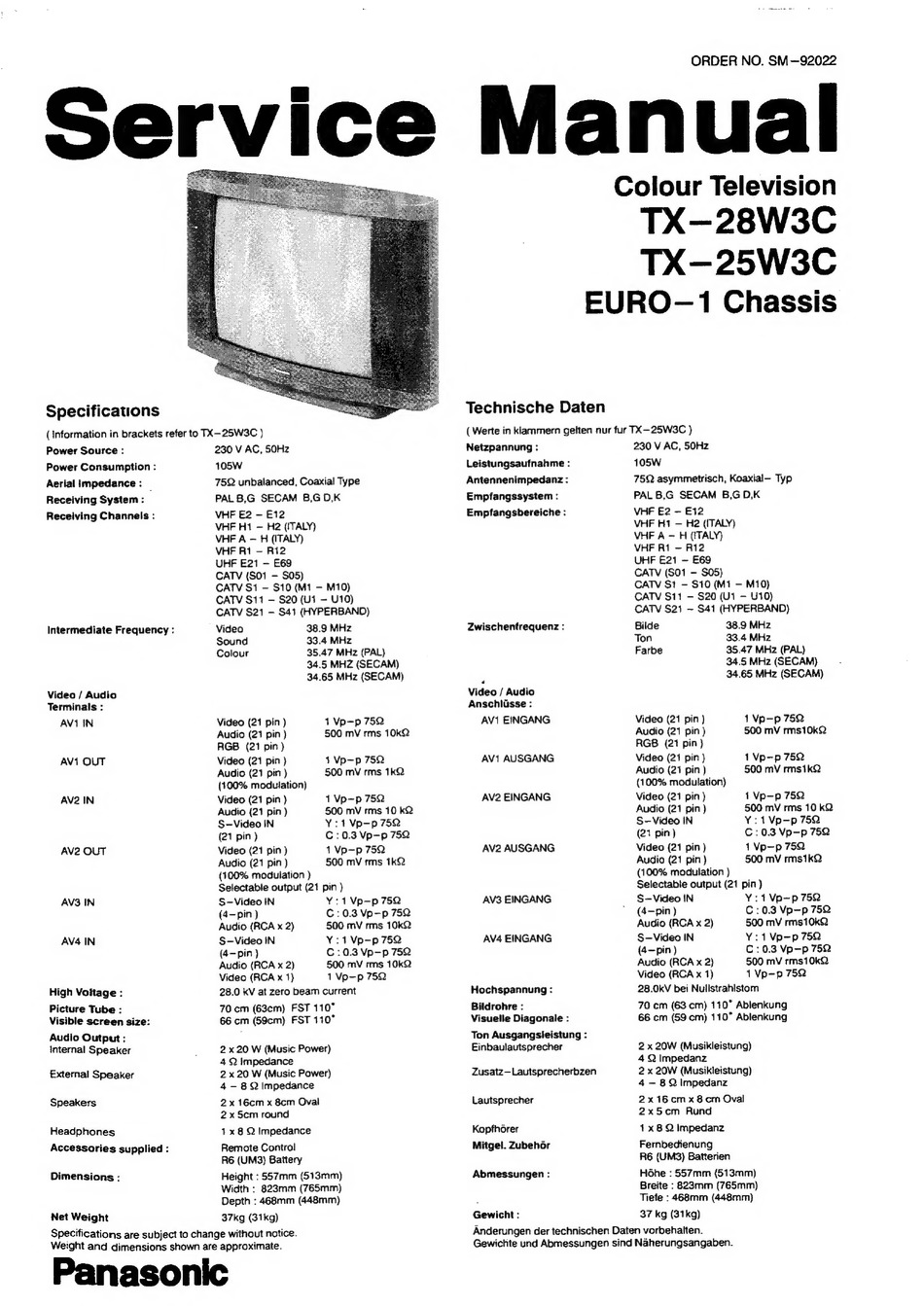

ORDER NO. SM--92022
2
Colour Television
TX—28W3C
TX—25W3C
EURO-1
Chassis
(Information in brackets reter to TX—25W3C )
Power Source :
Power Consumption :
Aerial Impedance : _
Receiving System :
Receiving Channels :
Intermediate Frequency :
Video / Audio
Terminals :
AV1IN
AV1 OUT
AV2 IN
AV2 OUT
AV3 IN
AV4 IN
High Voitage :
Picture Tube :
Visible screen size:
Audio Output :
Internal Speaker
External Speaker
Speakers
Headphones
Accessories supplied :
Dimensions :
Net Weight
230 V AC, 50Hz
105W
75Q unbalanced, Coaxial Type
PAL B,G SECAM
B,GD,K
VHF E2 - £12
VHF H1 — H2 (ITALY)
VHF A — H (ITALY)
VHF Ri - Ri2
UHF E21 - E69
CATV (S01 — S05)
CATV Si — $10 (M1 — M10)
CATV S11 — $20 (U1 — U10)
CATV $21 — S41 (HYPERBAND)
Video
38.9 MHz
Sound
33.4 MHz
Colour
35.47 MHz (PAL)
34.5 MHZ (SECAM)
34.65 MHz (SECAM)
Video (21 pin )
1 Vp-p 75Q
Audio (21 pin )
500 mV rms 10kQ
RGB (21 pin)
Video (21 pin}
1 Vp-p 75Q
Audio (21 pin )
500 mV rms 1kQ
(100% modulation)
Video (21 pin )
1 Vp—p 75Q
Audio (21 pin)
500 mV rms 10 kQ
S-Video IN
Y:1Vp—p 752
(21 pin)
C:0.3 Vp—p 75Q
Video (21 pin)
1 Vp-p 752
Audio (21 pin)
500 mV rms 1k&2
(100% moduiation }
Selectable output (21 pin )
S-Video IN
Y:1Vp—p 752
(4—pin )
C:0.3 Vp-p 752
Audio (RCA x 2)
500 mV rms 10kQ
S-Video IN
Y:1Vp—p 752
(4—pin )
C:0.3 Vp-p 752
Audio (RCA x 2)
500 mV rms 10k2
Video (RCA x 1)
1 Vp-p 752
28.0 kV at zero beam current
70 cm (63cm) FST 110°
66 cm (59cm) FST 110°
2x 20 W (Music Power)
4 Q Impedance
2 x 20 W (Music Power)
4 -— 8 Q Impedance
2x 16cm x 8cm Oval
2x 5em round
1 x 8 Q Impedance
Remote Control
R6 (UM3) Battery
Height : 557mm (513mm)
Width : 823mm (765mm)
Depth : 468mm (448mm)
37kg (31kg)
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Panasonic
( Werte in klammern gelten nur fur TX—25WS3C )
Netzpannung :
Leistungsaufnahme :
Antennenimpedanz :
Empfangssystem :
Empfangsbereiche :
Zwischenfrequenz :
Video / Audio
Anschlisse :
AV1 EINGANG
AV1 AUSGANG
AV2 EINGANG
AV2 AUSGANG
AV3 EINGANG
AV4 EINGANG
Hochspannung :
Bildrohre :
Visuelle Diagonale :
Ton Ausgangsieistung :
Einbaulautsprecher
Zusatz—Lautsprecherbzen
Lautsprecher
Kopfhoérer
Mitgel. Zubehor
Abmessungen :
Gewicht :
230 V AC, 50Hz
105W
75Q asymmetrisch, Koaxial— Typ
PAL B,G SECAM
B,G D,K
VHF E2 - £12
VHF H1 — H2 (ITALY)
VHF A — H (ITALY)
VHF R1 — R12
UHF E21 - E69
CATV (S01 - S05)
CATV S1 — S10 (Mi — M10)
CATV S11 — $20 (U1 - U10)
CATV S21 — S41 (HYPERBAND)
Bilde
38.9 MHz
Ton
33.4 MHz
Farbe
35.47 MHz (PAL)
34.5 MHz (SECAM)
34.65 MHz (SECAM)
Video (21 pin )
1 Vp—p 75Q
Audio (21 pin )
500 mV rms10k2
RGB
(21 pin)
Video (21 pin)
1 Vp-p 75Q
Audio (21 pin )
500 mV rms1kQ
(100% modulation)
Video (21 pin)
1 Vp—p 752
Audio (21 pin)
500 mV rms 10 kQ
S-Video IN
Y:1Vp—p 75Q
(21 pin)
C:0.3 Vp—p 75Q
Video (21 pin)
1 Vp—p 752
Audio (21 pin)
500 mV rms1kQ
(100% modulation )
Selectabie output (21 pin)
S-Video IN
Y:1Vp—p 752
(4-pin )
C:0.3 Vp—p 75Q
Audio (RCA x 2)
500 mV rms10kQ
S-Video IN
Y:1 Vp-p 75Q
(4—pin)
C:0.3 Vp—p 7§6Q
Audio (RCA x 2}
500 mV rms10kQ
Video (RCA x 1)
1 Vp-p 752
28.0kV bei Nullstrahistom
70 cm (63 cm) 110° Ablenkung
66 cm (59 cm) 110° Ablenkung
2 x 20W (Musikleistung)
4 Q Impedanz
2 x 20W (Musikleistung)
4 -— 8 2 Impedanz
2 x 16 cm x 8 cm Oval
2x5em
Rund
1x 8 Q Impedanz
Fernbedienung
R6 (UM3) Batterien
Hohe : 557mm (513mm)
Breite : 823mm (765mm)
Tiefe : 468mm (448mm)
37 kg (31kg)
Anderungen der technischen Daten vorbehalten.
Gewichte und Abmessungen sind Naherungsangaben.
