Inhaltszusammenfassung für Lightmaxx LIG0009432-000
Seite 1

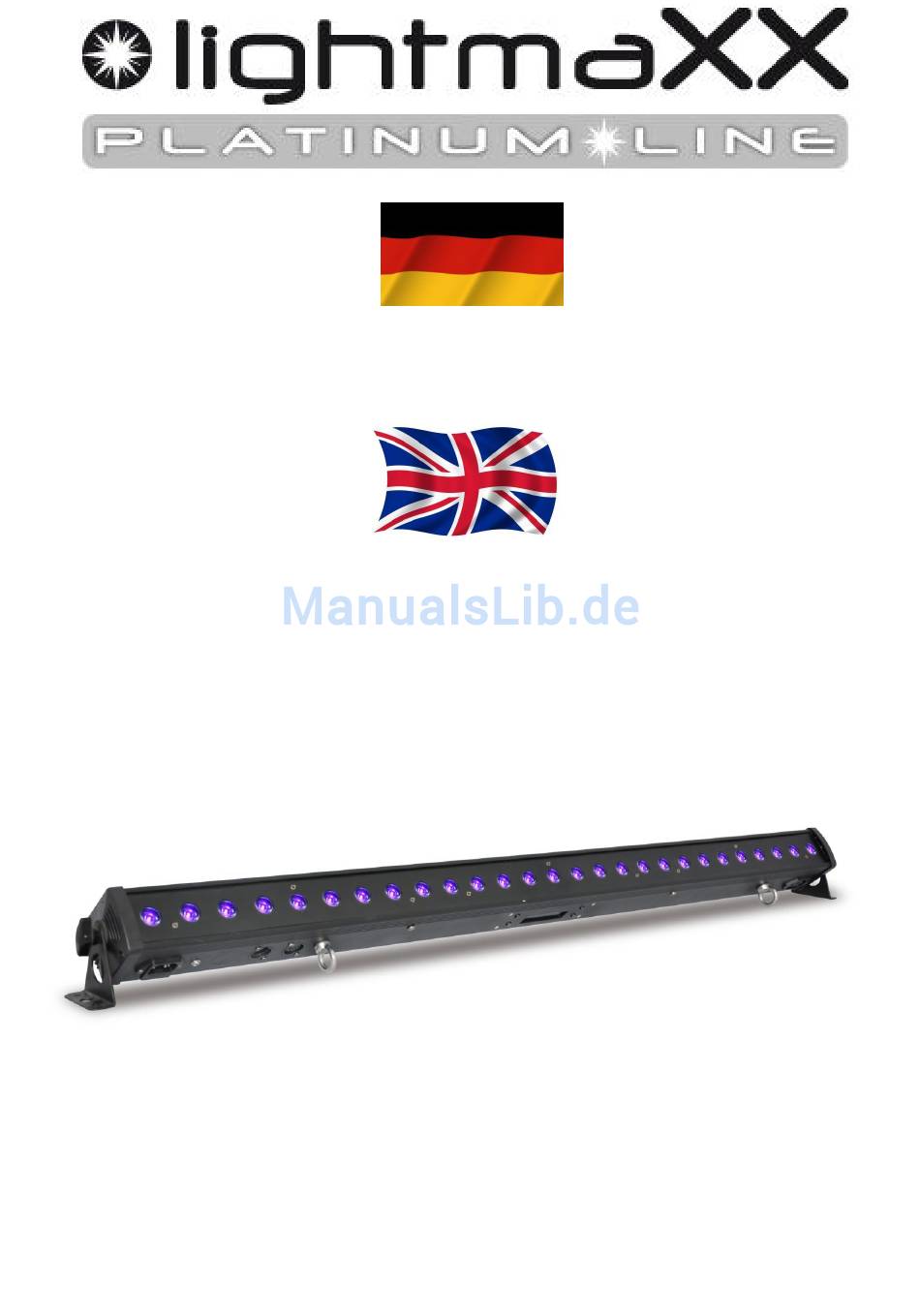

User Manual Page: 4 - 5 Platinum UV BAR LED LIG0009432-000 Lieber Kunde, vielen Dank das Sie sich für ein Produkt von LightmaXX entschieden haben. In der folgenden Anleitung erhalten Sie wichtige Informationen über dieses Produkt sowie deren Eigenschaften und Funktionen.
Technische Daten: Stromanschluss: AC 240V / 50Hz Leistung: Max. 36W LED Lichtquelle: 27x1W UV LED DMX-512 Steuerung: 2 Kanäle DMX Anschluss: 3-pin-XLR IN/OUT Abstrahlwinkel: Ca. 45° Min. Abstand von brennbaren Gegenständen: 0.5m Maße: (L x B x H) 1000x 63 x 87mm Gewicht: 2,3 Kg Betriebsfunktionen:...
Seite 3
IR-Fernbedienung / Funktionen: 1. DIMMING: Feste Parameter: OFF / 20% / 50% / 100% oder in 9 Schritten: über die + / - Tasten 2. STROBE: Feste Parameter: OFF / 20% / 50% / 100% oder in 9 Schritten: über die + / - Tasten 3.
Welcome to use the powerful series of UV LIGHT which with LED digital display and IR control for the most convenient operation. Technical Specifications: Power supply: AC110V.-240V. 50Hz / 60Hz Power consumption: Max. 36W LED quantity: 27x1W UV LED DMX control: DMX connection: 3-pin-XLR Beam angle:...
Seite 5
IR control instructions: 1. DIMMING: 20%/50%/100%: brightness setting, 20%=C-2, 50%=C-5, 100%=C-9, via +/- to set the brightness from C-0-C-9 brightness. 2. OFF=Blaoutout 3. STROBE: 20%/50%/100% Flash setting, 20%=F-2, 50%=F-5, 100%=F-9, via +/- to set the speed from F-0- F-9. 4.
