UGREEN NASync DXP8800 Plus Benutzerhandbuch Seite 11

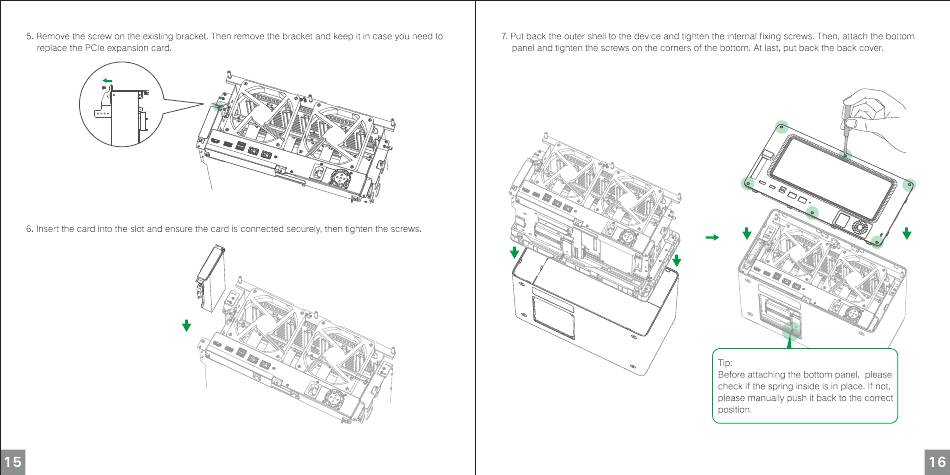

5 Remove the screw on the existing bracket.
replace the PCIe expansion card
6 Insert the card into the slot and ensure the card is connected
hen remove the bracket and keep it in case you need to
securely, then tighten the screws.
7 Put back the outer shell to the device and tighten the internal fixing screws Then, attach the bottom
panel and tighten the screws on the corners of the bottom. At last, put back the back cover.
Tip:
Before attaching the bottom panel, please
check if the spring inside is in place. If not,
please manually push it back to the correct
position
