Specification
External 2.5mm Aluminum Alloy
Material
Internal SGCC steel
Side Plate 2.0mm Aluminum Alloy
Dimension
200 mm x 421 mm x 445 mm (W x D x H)
Motherboard
ATX, Micro-ATX, U-ATX, ITX
Drive Bay
3 x3.5", 1 x 2.5", 1 x Slot-in Optical Drive
Top
1 x140mm fan (built-in)
Cooling
Bottom
2x120mm fan (built-in)
System
Rear
2x80mm fan (optional)
Fan Speed Controller
N/A
Expansion Slot
7
CPU Cooler Not higher than 150mm
Display Card
Not longer than 280mm
Front I/O Port 2x USB 3.0, 2x USB 2.0, 1x Audio, 1x MIC
Power Supply Standard ATX PSII PSU (Not longer than 160mm)
Weight 7.4kg
2
© All rights reserved by Rosewill

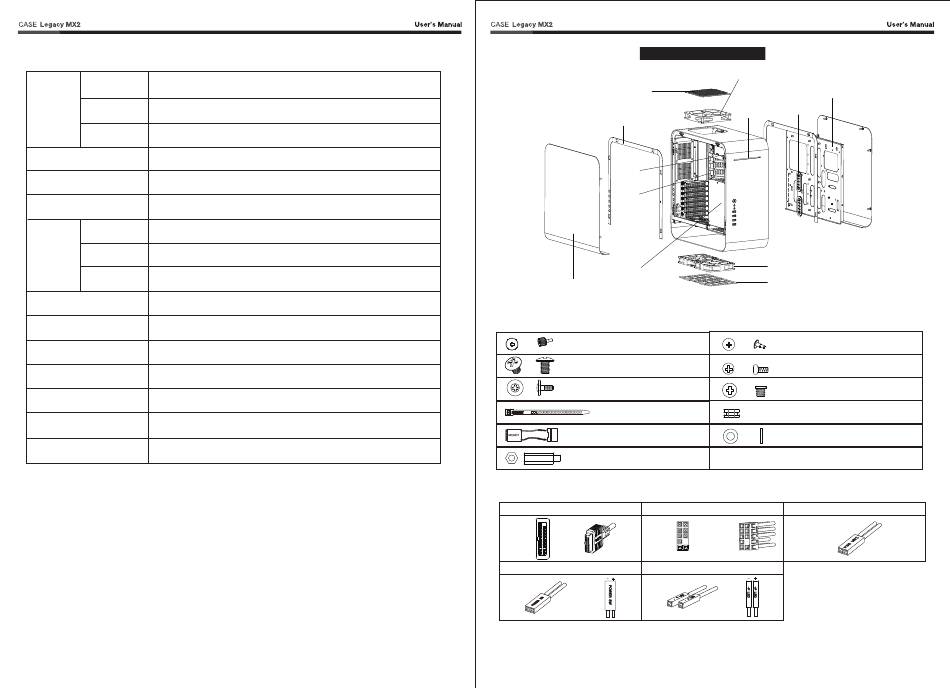

Disassemble Chart

Motherboard is NOT INCLUDED.
140mm Fan Iron Wire Mesh
U-type Bracket ×2
ODD
Bracket
HDD
Cage
PSU Bracket
Side Panel×2

Accessory Box

For locking 3.5"HDD
(left side)
For locking
motherboard and PSU
For locking 2.5"HDD
Bunch Wire Ties
Buzzer
Hexagonal Stand-off
Connectors
USB 3.0 Connection HD AUDIO Connection
VBUS
SSRX1- VBUS PORT 1L
SSRX1+ SSRX2-
PORT 1R
GND SSRX2+
SSTX1- GND PORT 2R
SSTX1+ SSTX2-
SENCE_SEND
GND SSTX2+
D1- GND PORT 2L
D1+ D2-
NC D2+
Power Button Connection Power LED Connection
140mm Fan
Wire Motherboard
Protection
ODD Slot Grommet ×2
120mm Fan×2
Fan Dust Filter×2
For locking 3.5"HDD
10PCS
(right side)
15PCS For looking ODD
For locking Fan
5PCS
5PCS HDD Rubber
1PCS Gasket
2PCS
Hard drive LED Connection
AUG GND
PRESENCE
SENSE1_RETURN
SENSE2_RETURN
3
© All rights reserved by Rosewill
6PCS
5PCS
8PCS
12PCS
10PCS
