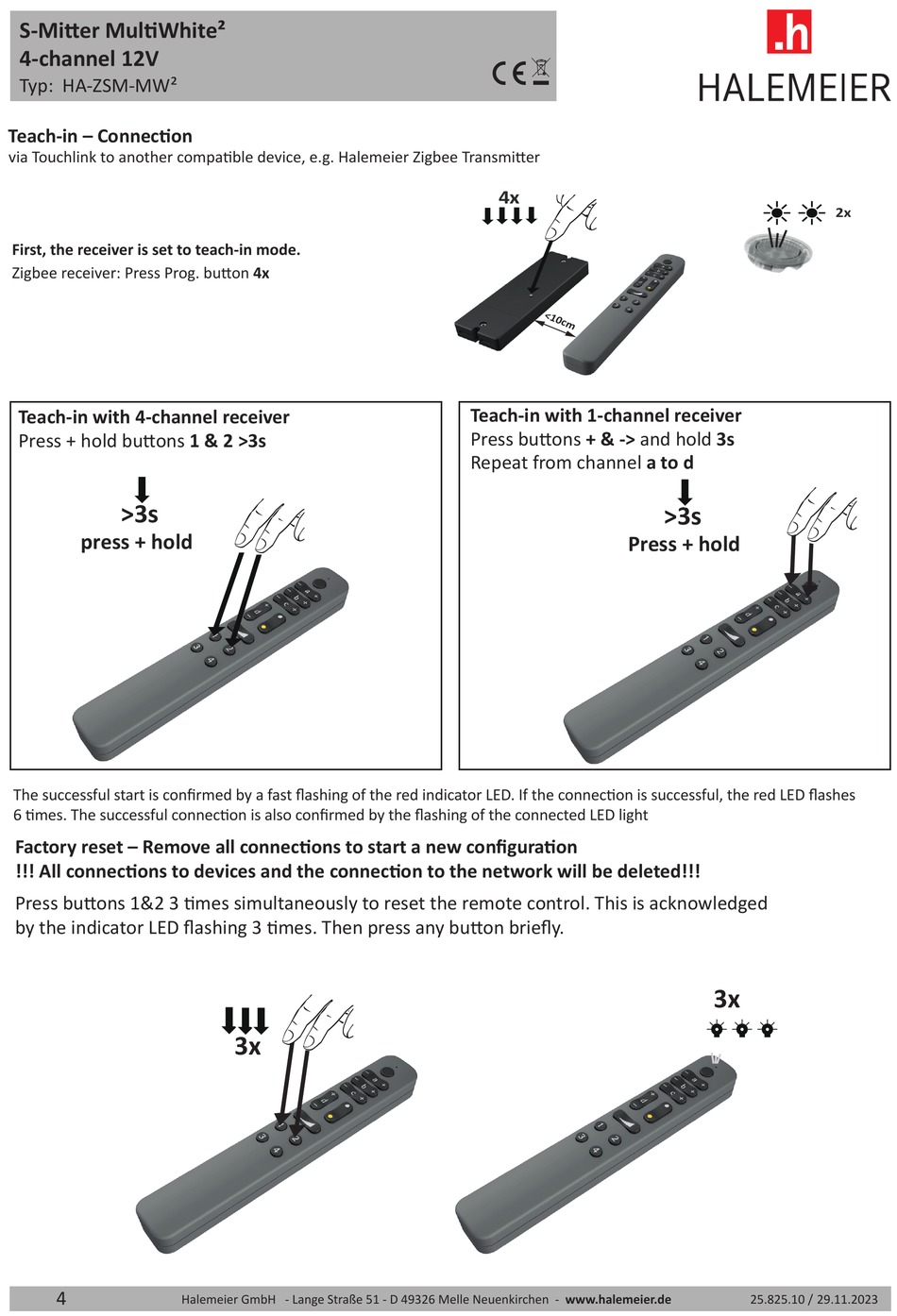

Halemeier S-Mitter MultiWhite2 Kurzanleitung Seite 4

S-Mitter MultiWhite²
4-channel 12V
Typ: HA-ZSM-MW²
Teach-in – Connection
via Touchlink to another compatible device, e.g. Halemeier Zigbee Transmitter
First, the receiver is set to teach-in mode.
Zigbee receiver: Press Prog. button 4x
Teach-in with 4-channel receiver
Press + hold buttons 1 & 2 >3s
>3s
press + hold
The successful start is confirmed by a fast flashing of the red indicator LED. If the connection is successful, the red LED flashes
6 times. The successful connection is also confirmed by the flashing of the connected LED light
Factory reset – Remove all connections to start a new configuration
!!! All connections to devices and the connection to the network will be deleted!!!
Press buttons 1&2 3 times simultaneously to reset the remote control. This is acknowledged
by the indicator LED flashing 3 times. Then press any button briefly.
4
3x
Halemeier GmbH - Lange Straße 51 - D 49326 Melle Neuenkirchen - www.halemeier.de
m
c
4x
Teach-in with 1-channel receiver
Press buttons + & -> and hold 3s
Repeat from channel a to d
Press + hold
>3s
3x
25.825.10 / 29.11.2023
2x
