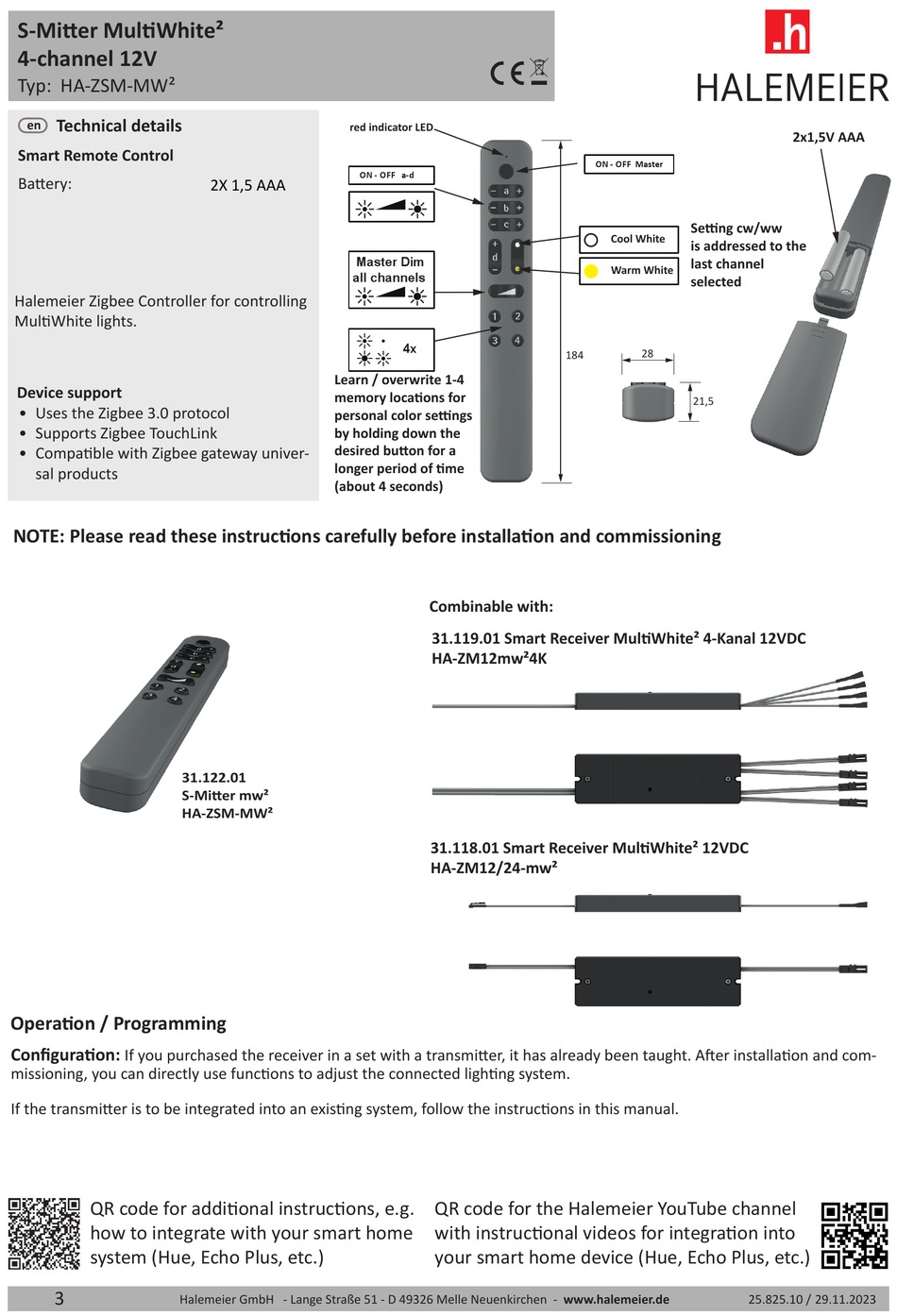

S-Mitter MultiWhite²
4-channel 12V
Typ: HA-ZSM-MW²
Technical details
en
Smart Remote Control
Battery:
Halemeier Zigbee Controller for controlling
MultiWhite lights.
Device support
• Uses the Zigbee 3.0 protocol
• Supports Zigbee TouchLink
• Compatible with Zigbee gateway univer-
sal products
NOTE: Please read these instructions carefully before installation and commissioning
Operation / Programming
Configuration:
If you purchased the receiver in a set with a transmitter, it has already been taught. After installation and com-
missioning, you can directly use functions to adjust the connected lighting system.
If the transmitter is to be integrated into an existing system, follow the instructions in this manual.
QR code for additional instructions, e.g.
how to integrate with your smart home
system (Hue, Echo Plus, etc.)
3
Halemeier GmbH - Lange Straße 51 - D 49326 Melle Neuenkirchen - www.halemeier.de
red indicator LED
2X 1,5 AAA
all channels
Learn / overwrite 1-4
memory loca�ons for
personal color se�ngs
by holding down the
desired bu�on for a
longer period of �me
(about 4 seconds)
31.122.01
S-Mi�er mw²
HA-ZSM-MW²
m
c
ON - OFF a-d
Master Dim
4x
Combinable with:
31.119.01 Smart Receiver MultiWhite² 4-Kanal 12VDC
HA-ZM12mw²4K
31.118.01 Smart Receiver MultiWhite² 12VDC
HA-ZM12/24-mw²
QR code for the Halemeier YouTube channel
with instructional videos for integration into
your smart home device (Hue, Echo Plus, etc.)
ON - OFF Master
Se�ng cw/ww
Cool White
is addressed to the
last channel
Warm White
selected
28
184
21,5
2x1,5V AAA
25.825.10 / 29.11.2023
