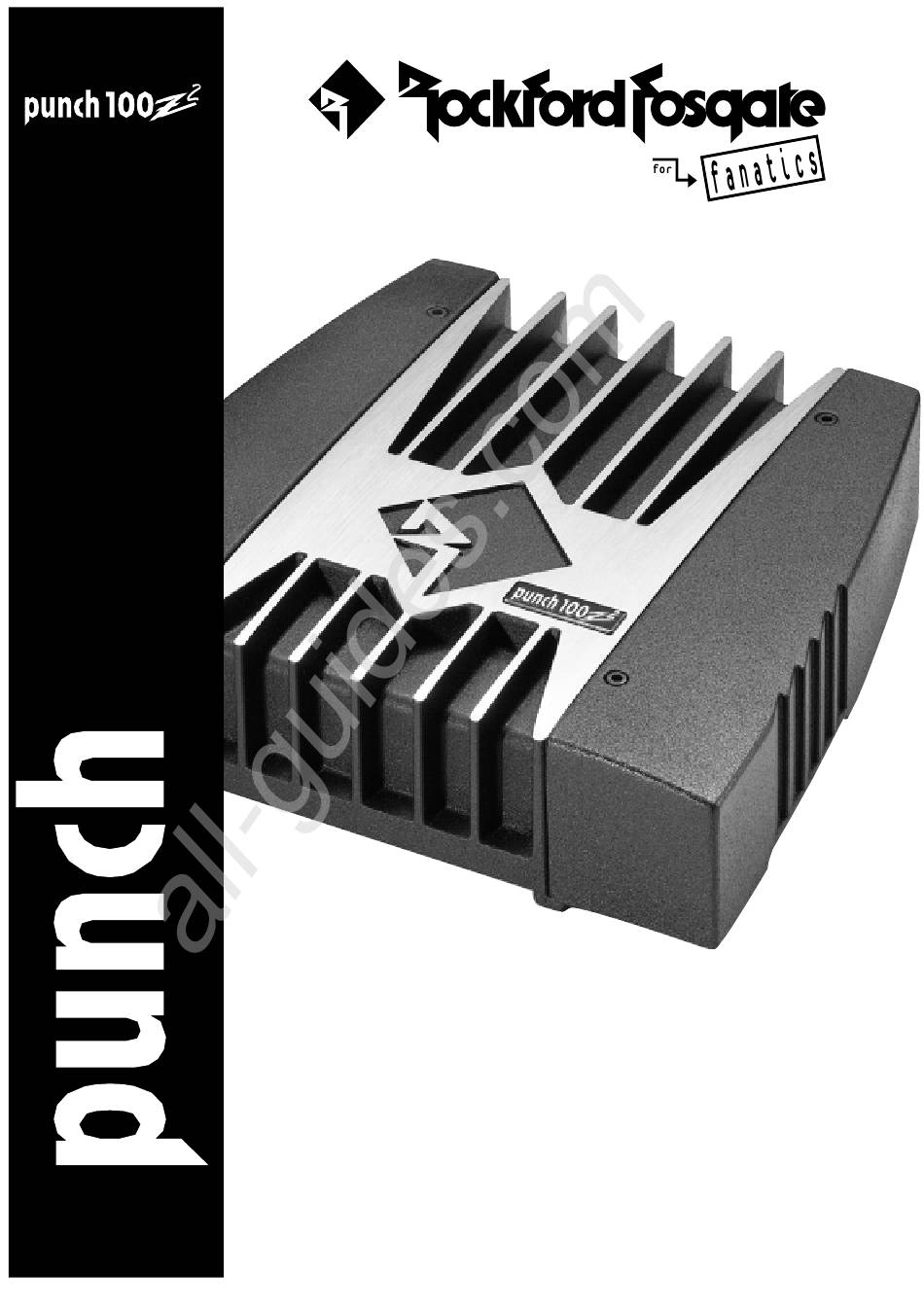

- Seite 1 All manuals and user guides at all-guides.com ® ® 2-channel amplifier c a r a u d i o Installation Reference Sheet Páginas de Referencia para la Instalación Schéma d’Installation Installations Beiblatt Istruzioni di Installation...
- Seite 2 COMMON SENSE AND PRACTICE SAFE SOUND If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.
- Seite 3 All manuals and user guides at all-guides.com Specification Punch 100z 2-Channel Punch Amplifier Reference Sheet EATURES ECHNICAL EATURES • Trans•ana • High Level Inputs – Allows compatibility with a variety of source units – Sound quality topology that sends an extended bandwidth accurately to the output stages of the amplifier •...
- Seite 4 Simultaneous Bridged/Mono 4 ohm with Stereo 2 or 4 ohm Set crossover switch for Full Range only Use passive crossovers when running amplifier in Stereo & Bridged/Mono mode simultaneously. Full Range Please contact your Authorized Rockford Fosgate Left (+) Xover Frequency Dealer for information on passive crossovers. Left Speaker –3dB...
- Seite 5 All manuals and user guides at all-guides.com NSTALLATION • For safety, disconnect the negative lead from the car battery prior to beginning the installation Trunk Mounting Mounting the amplifier vertically on a surface with the fin grooves running up and down will provide the best cooling for the amplifier. Passenger Compartment Mounting Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself.
- Seite 6 All manuals and user guides at all-guides.com Páginas de Referencia Punch 100z Amplificadore de Punch a 2 canale – Español para la Instalación BAND MUTE PUSH COMPACT DISC PLAYER WITH DIGITAL TUNER CD CHANGER CONTROL LOCAL LOUD DISP MODE LOUD TRACK SCAN DISC...
- Seite 7 All manuals and user guides at all-guides.com NSTALACÍON • Por seguridad, desconecte el terminal negativo de la bateria antes de comenzar la instalacíon. Montaje en el Malatero del vehícule Monte el amplificador verticalmente con las líneas del radiador orientadas de arriba hacia abajo. De esta manera conseguirá la mejor ventilación.
- Seite 8 All manuals and user guides at all-guides.com Schéma Punch 100z Amplificateur de puissance 2 canaux– Français d’Installation BAND MUTE PUSH COMPACT DISC PLAYER WITH DIGITAL TUNER CD CHANGER CONTROL LOCAL LOUD DISP MODE LOUD TRACK SCAN DISC SEEK TUNE MENU Extension RCA (en option) Câble de télécommande Full-80 LP...
- Seite 9 All manuals and user guides at all-guides.com NSTALLATION • Pour votre sécurité, deéconnectez la borne négative de la batterie du véhicule avant de commencer le montage. Montage dans l’habitacle L’installation d’un amplificateur est envisageable dans l’habitacle dès que la convection naturelle est suffisante. Il est possible de fixer l’amplificateur soud un siège si la hauteur de celui-ci permet au minimum d’avoir trois centimètres au-dessus du dissipateur thermique.
- Seite 10 Simultaneous Bridged/Mono 4 ohm with Stereo 2 or 4 ohm Set crossover switch for Full Range only Benutzen Sie passive Weichen, wenn Sie den Verstärker im Trimode-Betrieb nutzen. Bitte informieren Sie sich Full Range bei Ihrem autorisierten Rockford Fosgate Händler ueber passive Frequenzweichen. Links (+) Xover Frequency Linker Lautsprecher –3dB...
- Seite 11 All manuals and user guides at all-guides.com INBAU • Zur Sicherheit klemmen Sie den Negativ-Pol der Batterie während des gesamten Einbaues ab. Im Fahrzeugkofferraum Der vertikale Einbau der Endstufen, das bedeutet, dab die Kühlrippen von oben nach unten verlaufen, gibt dem Verstärker die beste Kühlung. Auf der Beifahrerseite Sollte der Verstärker auf der Beifahrerseite montiert werden, so ist es sehr wichtig für eine ausreichende Kühlung zu sorgen.
- Seite 12 All manuals and user guides at all-guides.com Istruzinoni di Punch 100z Amplificatore di Punch a 2 canali – Italiano Installazione BAND MUTE PUSH COMPACT DISC PLAYER WITH DIGITAL TUNER CD CHANGER CONTROL LOCAL LOUD DISP MODE LOUD TRACK SCAN DISC SEEK TUNE MENU...
- Seite 13 All manuals and user guides at all-guides.com NSTALLAZIONE • Per sicurezza, scollegare il polo netativo della batteria dell’auto prima di iniziare l’installazione. Nel Bagagliaio Montando l’amplificatore su una superficie in verticale con le alette direzionate dall’alto verso il basso si garantirá un miglior raffreddamento dell’amplificatore.
- Seite 14 Garantía Soporte Técnico. EUTSCH TALIANO Bitte Fragen Sie Ihren autorisierten Rockford Fosgate Händler Contattate il vostro rivenditore autorizzato Rockford über Informationen, die die Garantie oder technische Probleme Fosgate per informazioni sulle condizioni di garanzia betreffen.
- Seite 15 • What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by Rockford Corporation.
- Seite 16 American companies. However, due to the global nature of their manufacturing facilities and the electronics parts industry in general, some parts may be manufactured in other countries. Rockford Fosgate Rockford Corporation 546 South Rockford Drive Tempe, Arizona 85281 U.S.A.
