SPEAKER CONNECTION
One or more speakers (4, 8 or 16 Ohms) can be connected to the ampli er with
or without transformers. However, before you connect any speakers to the
ampli er, the total impedance must be calculated in order to avoid damage to
the ampli er. A total speaker impedance greater than 8 Ohms or less than 8
Ohms can cause this damage to occur.

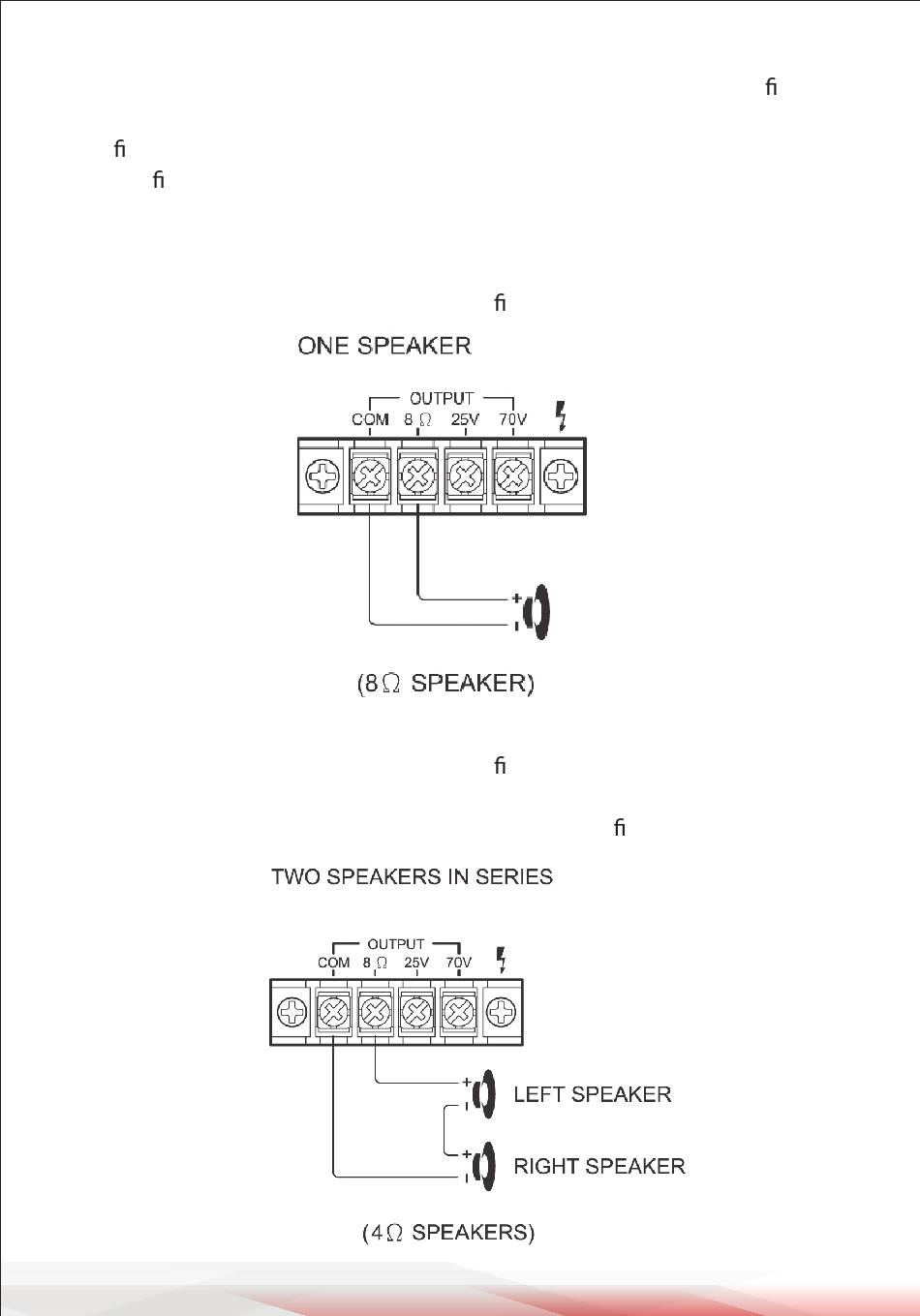

SYSTEM 1: Single Speaker System
NOTE: Connect the speaker (+) to the ampli er's 8-Ohm terminal.
SYSTEM 2 : Two (or more) Speakers in Series
NOTE: Connect the speaker (+) to the ampli er's 8-Ohm terminal, depending
on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance
of 4-Ohm, the total speaker impedance in this series con guration is 8 ohms.
