DVA ZB04 Handbuch Seite 5

FIG. 5
FIG. 6
FIG. 8
WARNING: This leaflet is an integral part of the machine and must be handed to the installer, who in turn should
hand it back to the user after having filled in the check table

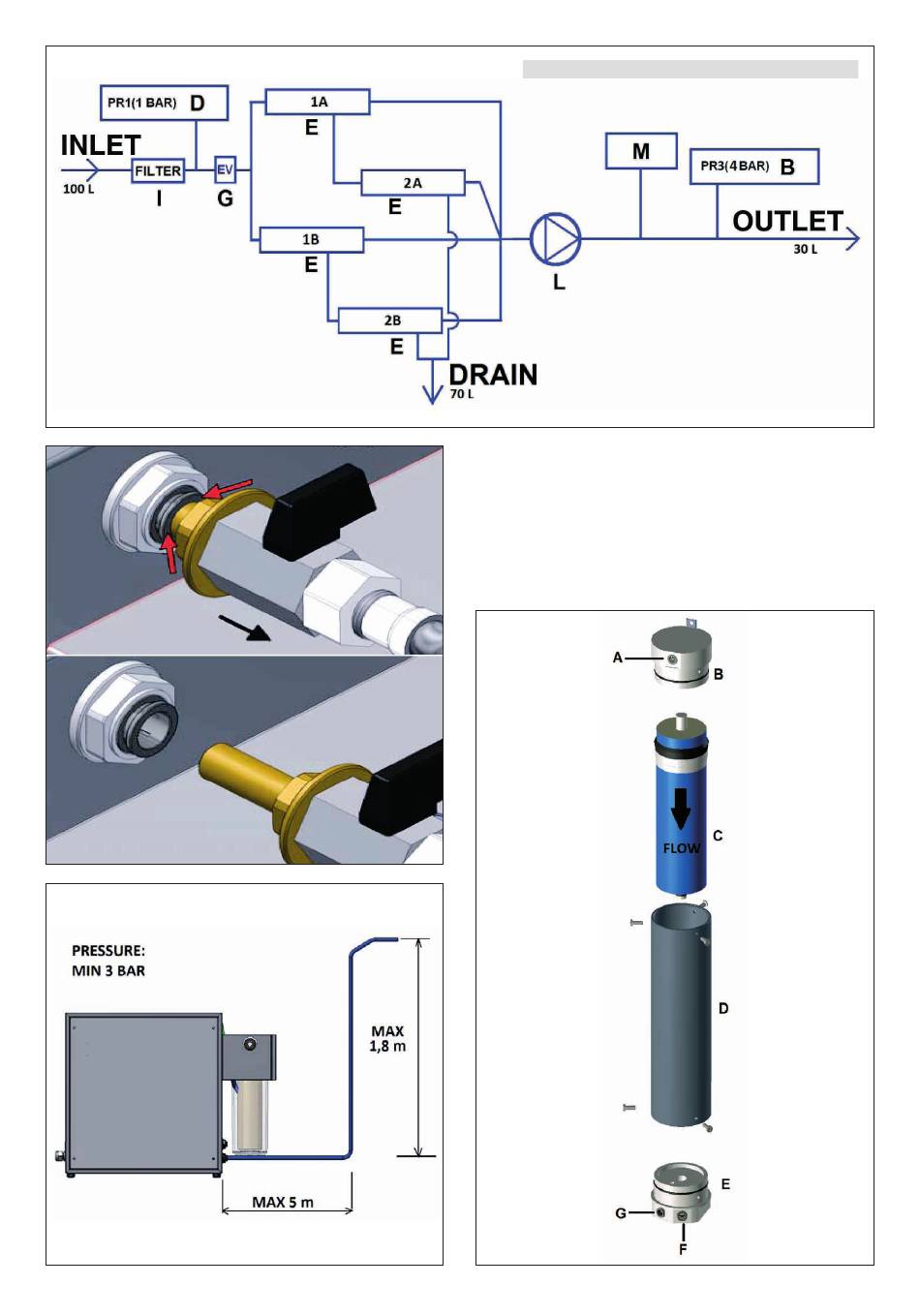

SCHEMA IDRAULICO - WATER FLOW DIAGRAM
LEGENDA (FIG. 7):
A ALIMENTO
B TAPPO ENTRATA
C MEMBRANA 2812
D CONTENITORE MEMBRANA
E TAPPO USCITA
F PERMEATO
G CONCENTRATO
FIG. 7
LEGEND (FIG. 7):
A FEED WATER
B INFLOW CAP
C 2812 MEMBRANE
D MEMBRANE CONTAINER
E OUTFLOW CAP
F PERMEATE
G CONCENTRATE
