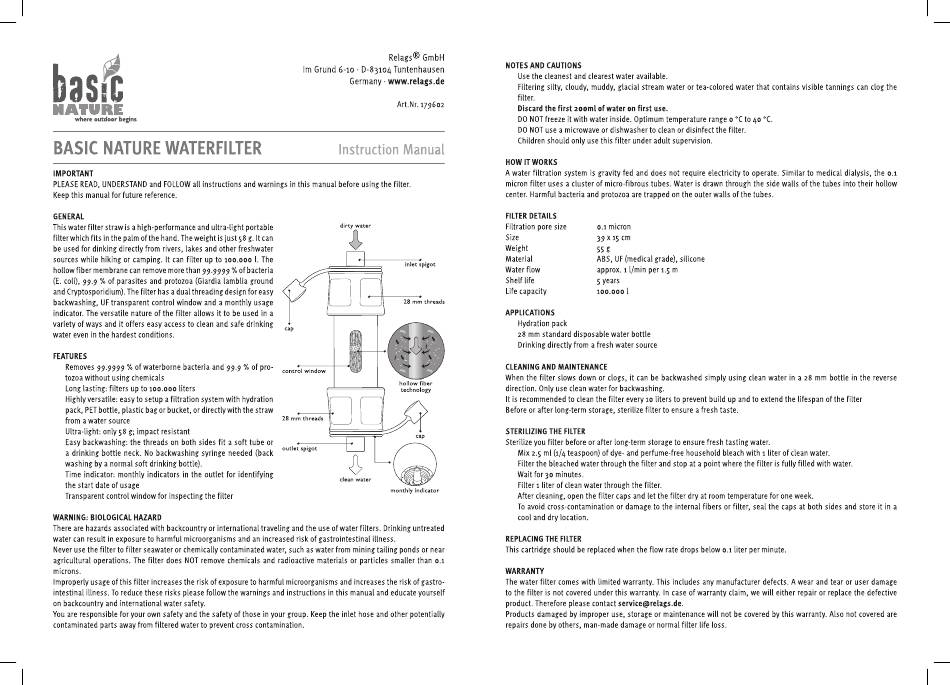

BASIC NATURE WATERFILTER
IMPORTANT
PLEASE READ,UNDERSTAND and FOLLOW all instructions and warnings in this manual before using the filter.
Keep this manual for future reference.
GENERAL
This water filter straw is a high-performance and ultra-light portable
filter which fits in the palm of the hand. Theweight is just 58 g. It can
be used for dinking directly from rivers, lakes and other freshwater
sources while hiking or camping. It can filter up to 100.000 1.The
hollow fiber membrane can remove more than 99-9999 % of bacteria
(E. coli), 99-9 % of parasitesand protozoa(Giardialamblia ground
and Cryptosporidium). Thefilter hasa dualthreadingdesignfor easy
backwashing, UFtransparent control window and a monthly usage
indicator. The versatile nature of the filter allows it to be used in a
variety of ways and it offers easy access to clean and safe drinking
water even in the hardest conditions.
FEATURES
Removes 99-9999% of waterbornebacteriaand 99-9 % of pro-
tozoa without using chemicals
Long lasting: filters up to 100.000 liters
Highly versatile: easy to setup a filtration system with hydration
pack,PET bottle, plasticbagor bucket,or directlywith the straw
from a water source
Ultra-light: only 58 g; impact resistant
Easy backwashing: the threads on both sides fit a soft tube or
a drinking bottle neck. No backwashingsyringe needed(back
washingbya normalsoft drinking bottle).
Time indicator: monthly indicators in the outlet for identifying
the start date of usage
Transparent c ontrol windowfor inspectingthe filter
WARNING: BIOLOGICAL HAZARD
Thereare hazardsassociatedwith backcountryor internationaltravelingand the use of waterfilters. Drinkinguntreated
water can result in exposure to harmful microorganisms and an increased risk of gastrointestinal illness.
Never use the filter to filter seawater or chemically contaminated water, such as water from mining tailing ponds or near
agricultural operations. Thefilter does NOTremovechemicalsand radioactive materialsor particles smaller than 0.1
microns.
Improperly usage of this filter increases the risk of exposure to harmful microorganisms and increases the risk of gastro-
intestinalillness. Toreducetheserisks pleasefollow the warningsand instructionsin this manualand educateyourself
on backcountry and international water safety.
You are responsible for your own safety and the safety of those in your group. Keep the inlet hose and other potentially
contaminatedparts awayfrom filtered waterto preventcrosscontamination.
Relags@ GmbH
1mGrund6-10• D-83104Tuntenhausen
Germany • www.relags.de
Art.Nr. 179602
Instruction Manual
dirty water
inlet spigot
28 mm threads
cap
control window
hollow fiber
technology
28 mm threads
cap
outlet spigot
clean water
monthly indicator
NOTES AND CAUTIONS
Use the cleanest and clearest water available.
Filtering silty, cloudy, muddy, glacial stream water or tea-colored water that contains visible tannings can clog the
filter.
Discard the first 200ml of water on first use.
DO NOTfreeze it with water inside. Optimum temperature range o oc to 40 oc.
DO NOT use a microwave or dishwasher to clean or disinfect
Childrenshouldonly usethis filter underadult supervision.
HOW IT WORKS
A waterfiltration systemis gravity fed and does not require electricity to operate.Similar to medicaldialysis, the 0.1
micron filter uses a cluster of micro-fibrous tubes. Water is drawn through the side walls of the tubes into their hollow
center. Harmful bacteria and protozoa are trapped on the outer walls of the tubes.
FILTER DETAILS
Filtration pore size 0.1 micron
Size
39 X 15 Cm
Weight
55 g
Material ABS, UF (medical grade), silicone
Water flow approx.1 Ilmin per1.5 m
Shelf life
5 years
Life capacity 100.0001
APPLICATIONS
Hydrationpack
28 mm standard disposable water bottle
Drinking directly from a fresh water source
CLEANING AND MAINTENANCE
When the filter slows down or clogs, it can be backwashed simply using clean water in a 28 mm bottle in the reverse
direction. Only use clean water for backwashing.
It is recommended to cleanthe filter every10 liters to preventbuild up andto extendthe lifespanof the filter
Before or after long-term storage, sterilize filter to ensure a fresh taste.
STERILIZING THE FILTER
Sterilize you filter before or after long-term storage to ensure fresh tasting water.
Mix 2.5 ml (1/4teaspoon)of dye-and perfume-freehouseholdbleachwith 1 liter of cleanwater.
Filter the bleachedwaterthroughthe filter andstop at a point wherethe filter is fully filled with water.
Wait for 30 minutes.
Filter 1 liter of clean water through the filter.
After cleaning,open the filter capsand let the filter dry at roomtemperaturefor oneweek.
To avoid cross-contamination or damage to the internal fibers or filter, seal the caps at both sides and store it in a
cool and dry location.
REPLACING THE FILTER
This cartridge should be replaced when the flow rate drops below 0.1 liter per minute.
WARRANTY
The water filter comes with limited warranty. This includes any manufacturer defects. A wear and tear or user damage
to the filter is not coveredunderthis warranty. In caseof warranty claim, we will either repairor replacethe defective
product. Therefore please contact service@relags.de.
Productsdamagedby improperuse, storageor maintenancewill not be coveredby this warranty.Also not coveredare
repairsdoneby others, man-made damageor normalfilter life loss.
