3.3 Wiring diagram

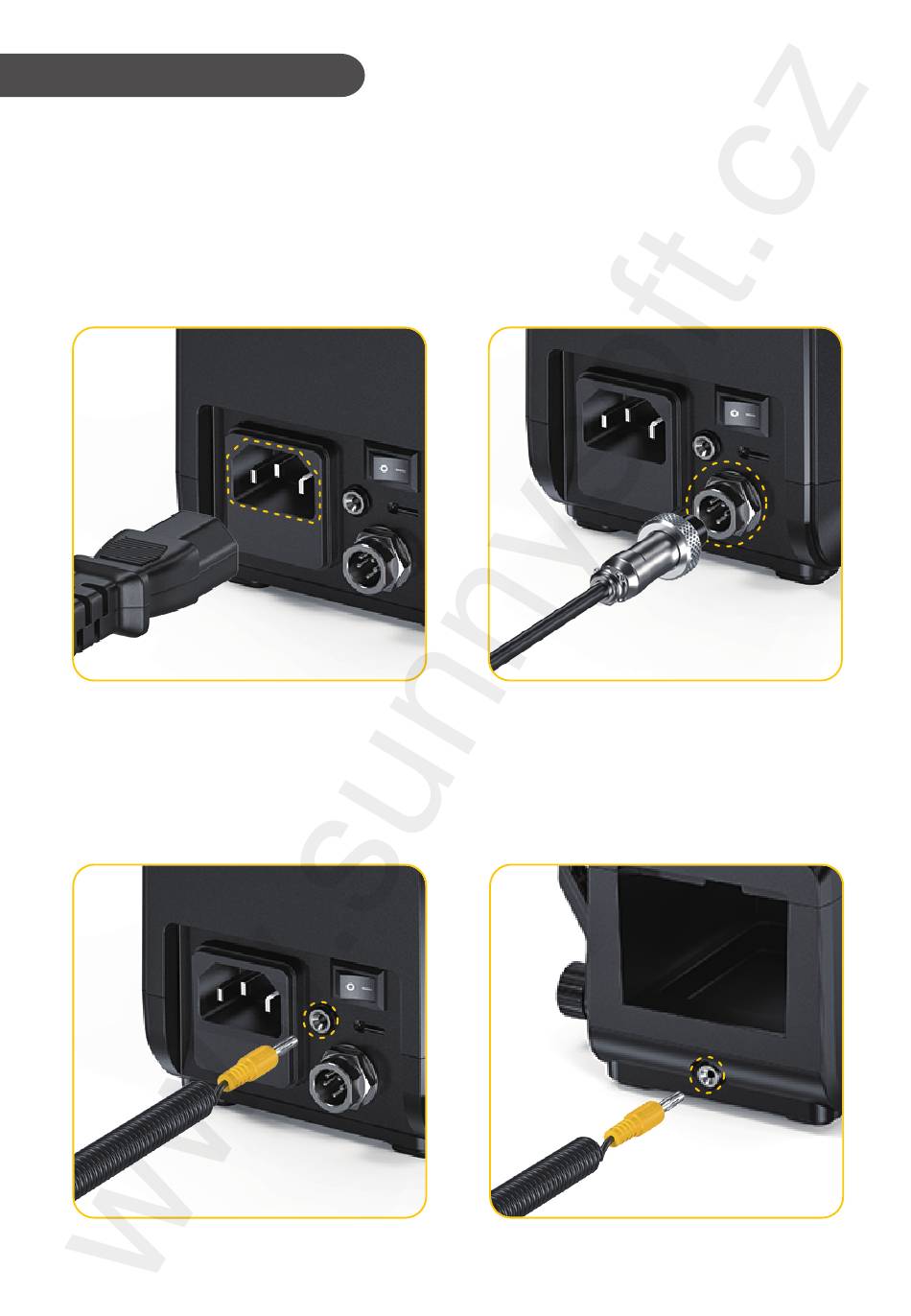

Host power wiring
After the power cord is connected, if
you need to disconnect the power
you can do so by toggle the power
switch to operate.
Main Unit Hibernation Seat Connection Cable
The main unit and the secondary unit need to be connected through the
connecting cable, and the handle is placed on the hibernation seat in order to
sense hibernation.
Host soldering iron handle wiring
After inserting the handle into the
interface, make sure to use the knob
to lock it again to prevent the
handle from having poor contact or
becoming loose during use.
