USER MANUAL
BEDIENUNGSANLEITUNG
BEDIENUNGSANLEITUNG

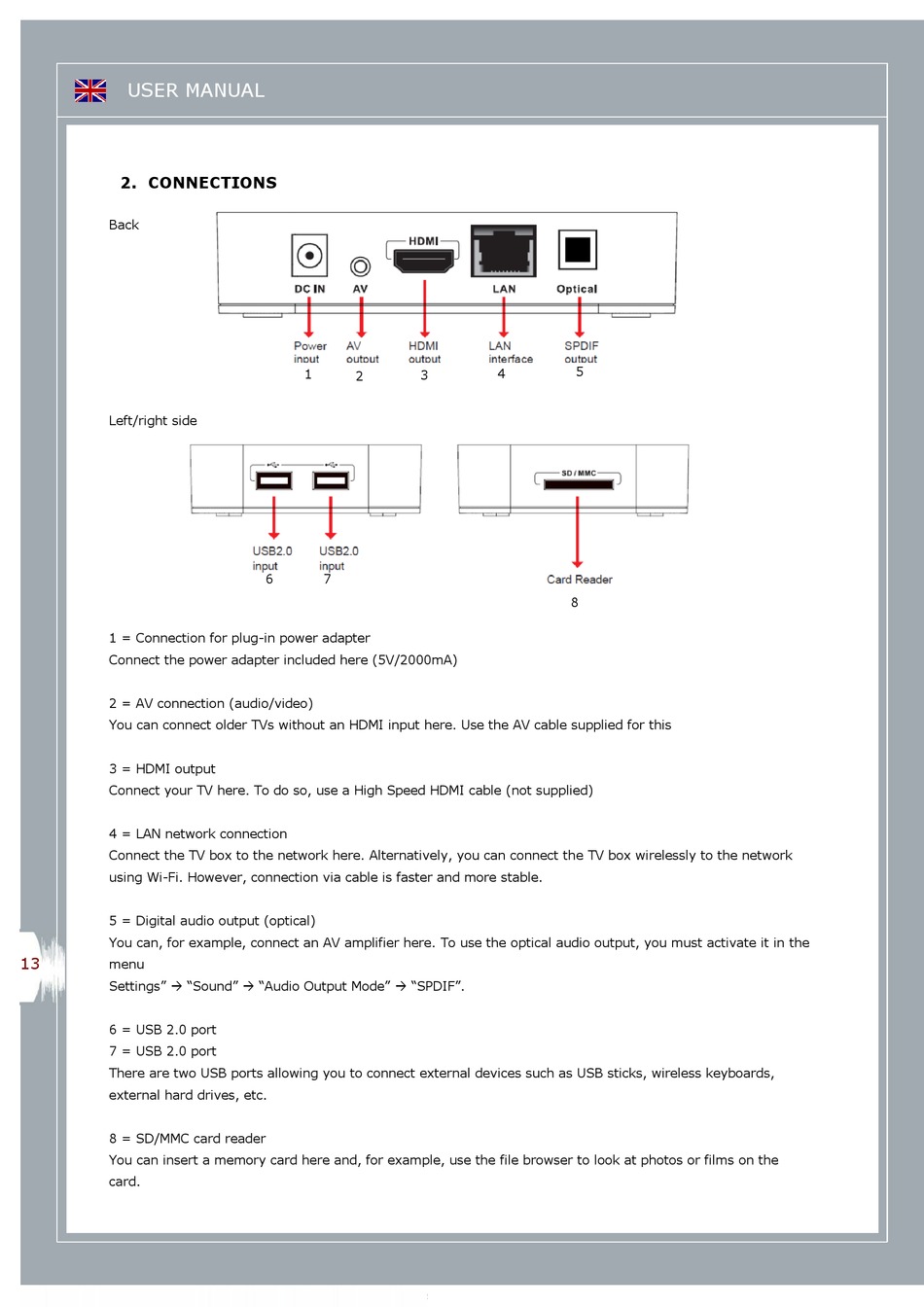

2. CONNECTIONS

Back
5
4
1
2 3
Left/right side
6 7
8
1 = Connection for plug-in power adapter
Connect the power adapter included here (5V/2000mA)
2 = AV connection (audio/video)
You can connect older TVs without an HDMI input here. Use the AV cable supplied for this
3 = HDMI output
Connect your TV here. To do so, use a High Speed HDMI cable (not supplied)
4 = LAN network connection
Connect the TV box to the network here. Alternatively, you can connect the TV box wirelessly to the network
using Wi-Fi. However, connection via cable is faster and more stable.
5 = Digital audio output (optical)
You can, for example, connect an AV amplifier here. To use the optical audio output, you must activate it in the
13
menu
Settings"  "Sound"  "Audio Output Mode"  "SPDIF".
6 = USB 2.0 port
7 = USB 2.0 port
There are two USB ports allowing you to connect external devices such as USB sticks, wireless keyboards,
external hard drives, etc.
8 = SD/MMC card reader
You can insert a memory card here and, for example, use the file browser to look at photos or films on the
card.
