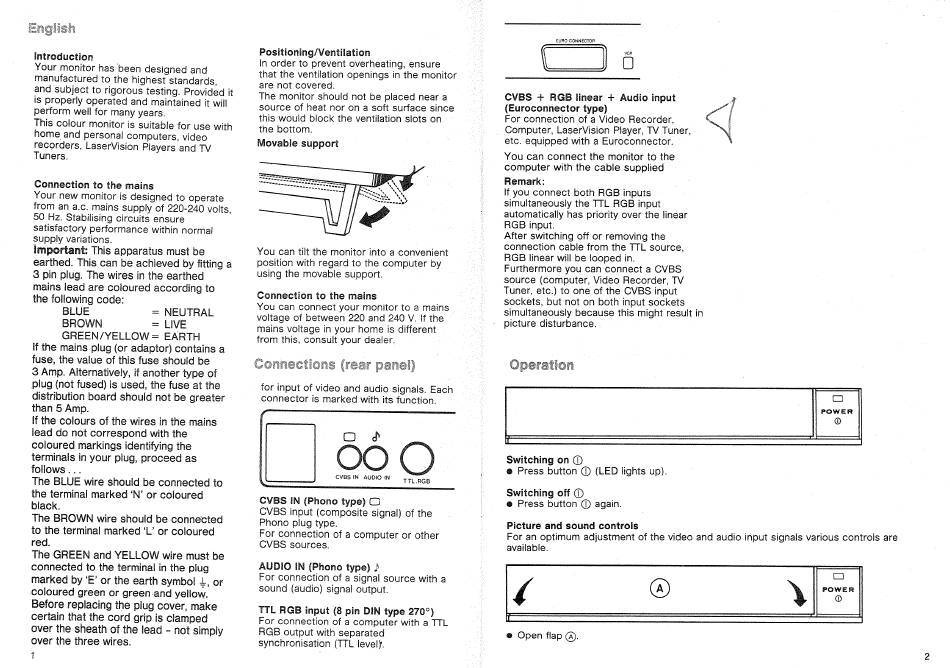

Introduction
Your monitorhasbeendesignedand
manufacturedto the highest standards,
and subject to rigorous testing. Provided it
is properly operated and maintainedit will
perform well for manyyears.
This colourmonitoris suitablefor usewith
homeand personai c omputers, v ideo
recorders, LaserVisionPlayersand TV
Tuners.
Connection
to the mains
Your newmonitoris designedto operate
from ana.c.mainssupplyof 220-240volts,
50 Hz. Stabilising circuits ensure
satisfactory performance
within normal
supply variations.
Important: This apparatus must be
earthed. This can be achieved by fitting a
3 pin plug. The wires in the earthed
mains lead are coloured according to
the following code:
BLUE
=
NEUTRAL
BROWN
=
LIVE
GREEN/YELLOW=
EARTH
If the mainsplug (or adaptor)contains a
fuse, the value of this fuse should be
3 Amp. Alternatively, if another type of
plug (not fused) is used, the fuse at the
distribution board should not be greater
than 5 Amp.
If the colours of the wires in the mains
lead do not correspond with the
coloured markings identifying the
terminals in your plug, proceed as
follows
.
The BLUE wire should be connected
the terminal marked 'N' or coloured
black.
The BROWN wire should be connected
to the terminal marked 'L' or coloured
red.
The GREEN and YELLOW wire must be
connected to the terminal in the plug
markedby 'E' or the earth symbolæ,or
coloured green or green and yellow.
Before replacingthe plug cover, make
certain that the cord grip is clamped
overthe sheathof the lead- not simply
over the three
wires.
Positioning/Ventilation
In order to prevent overheating, ensure
that the ventilation openings in the monitor
are
not
covered.
The monitor should not be placed near a
source
of heat
nor on a soft surface
this would
block
the ventilation
the
bottom.
Movable support
You can tilt the monitor
into a convenient
position with regard to the computer by
using the movable support.
Connection
to the mains
You can connect your monitor to a mains
voltage of between
220 and 240 V. If the
mains voltage in your home is different
from this, consult your dealer.
Connections (rear panel)
for input of video and audiosignals. Each
connector
is marked
with its function.
to
CVSS IN (Phono type) O
CVBS input (composite signal) of the
Phono plug type.
For connection of a computer or other
CVBS sources.
AUDIO IN (Phono type)
For connection of a signalsource with a
sound (audio) signal output.
TTL RGB input (8 pin DIN type 2700)
For connection of a computer with a TTL
RGB output with separated
synchronisation (TTL levelh
zuR0 CONNECTOR
CVSS + RGB linear + Audio input
since
(Euroconnector
type)
slots
on
For connection
of a Video Recorder,
Computer, LaserVision Player, TV Tuner,
etc. equipped with a Euroconnector.
You
can
connect
computer
with the cable supplied
Remark:
If you connect both RGB inputs
simultaneously the TTL RGB input
automatically has priority over the linear
RGB input.
After switching off or removing the
connection
cable from the TTL source,
RGB linear will be looped in.
Furthermore
you can connect a CVBS
source (computer, Video Recorder, TV
Tuner, etc.) to one of the CVBS input
sockets, but not on both input sockets
simultaneously
because this might result in
picture disturbance.
Operation
Switching
on O
e Press button O (LED lights up).
Switching
off O
o Press button O again.
and
sound
For an optimum adjustment of the video and audio input signals various controls are
available.
Open flap @.
e
the
monitor
to the
controls
POWER
POWER
2
