Technical Specifications - Pcwork Pcw09B Benutzerhandbuch

Technical Specifications

Item
Name
Input Voltage
Power
Temperature Range
Resistance(Tip to Ground)
Current(Tip to Ground)
Heating Element
Soldering Tips
Cable Length
Total Length
Gross Weight/Net Weight
Operating Instructions
1. Setting the temperature:
Press the "Up" button in order to increase the temperature of the soldering iron (short press / long press)
Press the "Down" button in order to reduce the temperature of the soldering iron (short press / long press)
2. Temperature calibration:
Short press the up and down buttons at the same time for 1 second, then press the up or down button for setting the temperature
calibration (±99°C).
3. Switching between Fahrenheit and Celsius:
Long press the up and down buttons at the same time for 3 seconds to switch between °C/°F.
4. Setting the sleep function
When the soldering iron is switched off, press either the up or down button together with the power button for 3 seconds. The
screen will flash 3 times, indicating that the sleep function of the device is activated. If you do the procedure again, the sleep
function will be deactivated. When the sleep function is activated and the soldering iron is not used or moved for 15 minutes, then
the soldering iron will enter sleep mode. This will be indicated by the screen showing "---" as well as that the iron has stopped
heating.
5. Leaving sleep mode
Press any button or move the soldering iron to leave sleep mode.

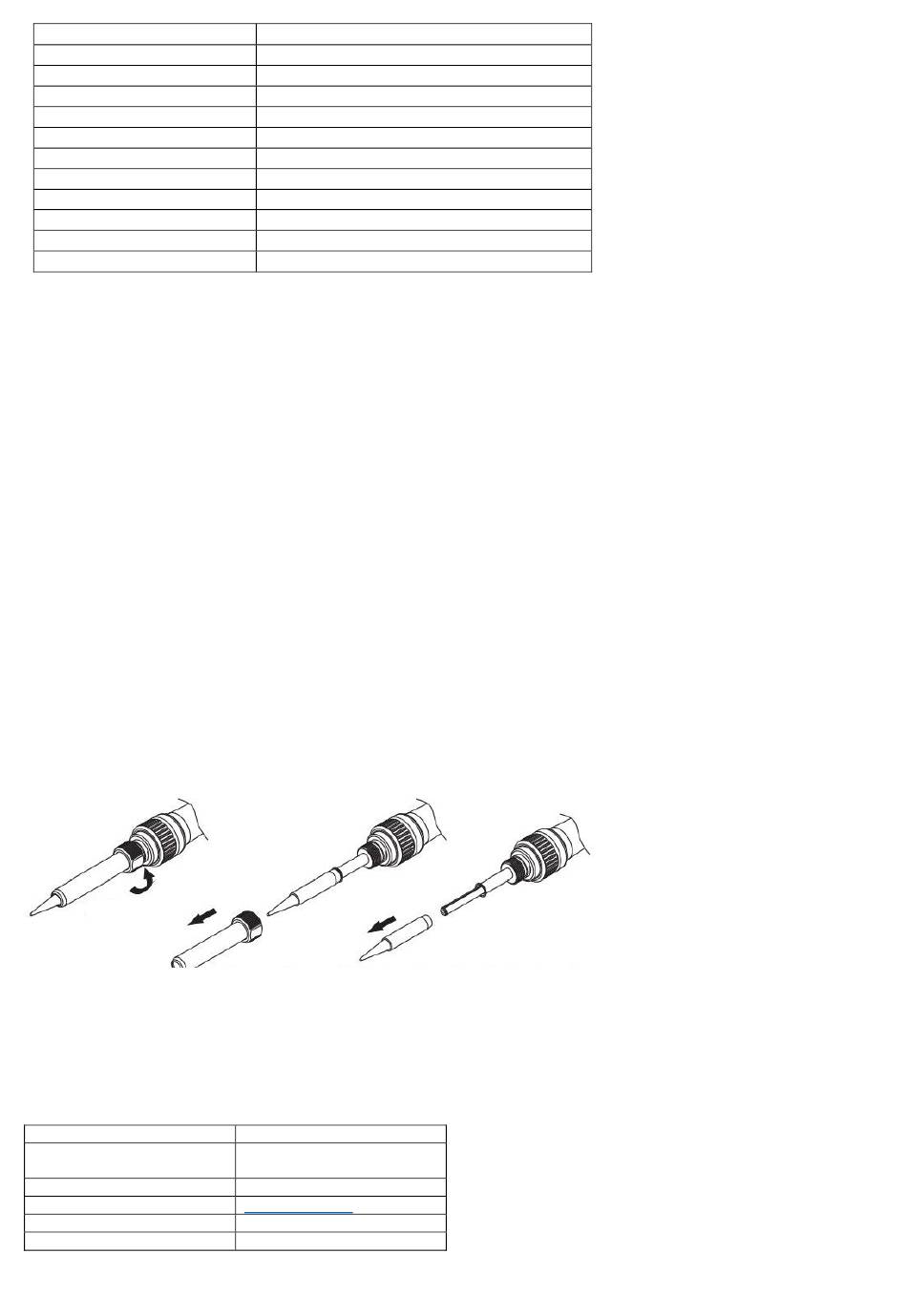

Replacement of the soldering tip
Attention: Only remove the tip when the soldering iron is cold and not connected to the mains!
1. Remove the nut 2. Remove the sheath
Information Regarding Waste Disposal
You are not permitted to dispose of this device in household garbage. This soldering station corresponds to the EU-directive
concerning the "Waste of Electrical and Electronic Equipment". Please dispose of the device in your local collection point.
Importer:
Company Name
Address
Email
Internet
WEEE-No.
Local district court
PCW09B
Portable In-line Digital Soldering Iron
AC 230V;50Hz
90W
180℃~480℃;356F~896F
<2Ω
≤1.5mA
1370 heating core
900M series
1.5M
1.7M
≈135g/≈256g
3. Remove the old tip, insert the new tip and put the sheath and nut back on.
P+C Schwick GmbH
Bergisch Born 87A, 42897
Remscheid, Germany
info@schwick.de
www.schwick.de
DE 73586423
Remscheid, Germany
Creation date of manual: May 2024 – all
technical changes reserved. No responsibility
is taken for any technical or printing errors.
