Laserworld Club Serie Bedienungsanleitung Seite 6

Manual: CS-3000RGB | CS-6000RGB
D: Set Sound-to-Light or Auto mode on Master laser
To use the Master-Slave operation: set the Master to either Sound-to-Light mode (4.1) or
Auto mode (4.2.).
E: Establish link to Slave lasers
The Slave units must be set to DMX („d512") mode and must be assigned address 001 (see
4.4. DMX 512)
4.1. DMX 512
The DMX mode requires a DMX controller or a Master laser (see 4.3. Master-Slave operation)
to be connected to the laser.

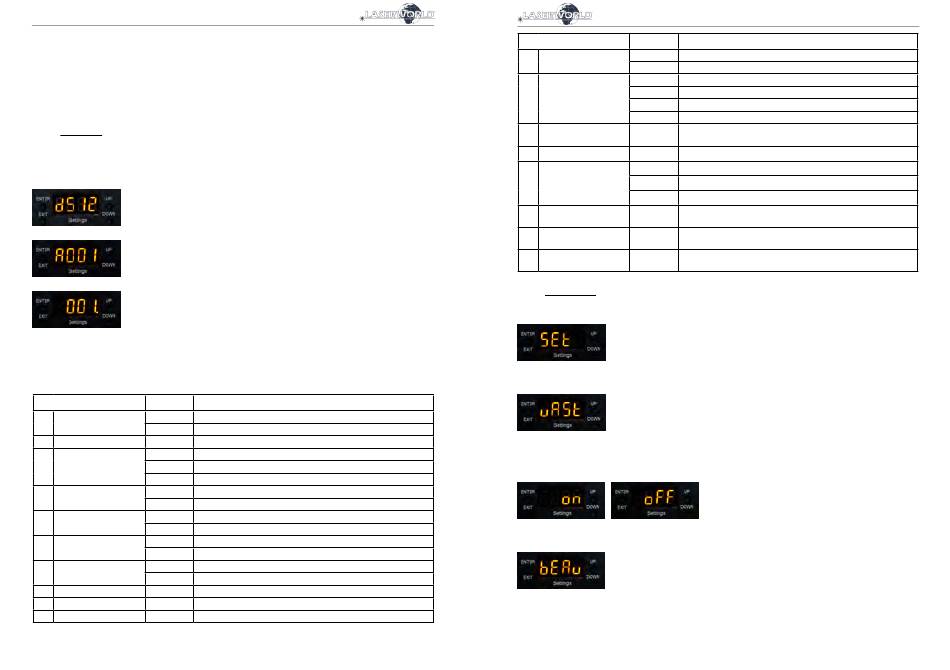

To switch to DMX mode, select „d512" by navigating with the „Up" / „Down" buttons and
confirm with „Enter":
The submenu for setting the DMX address loads:
Press „Enter" and the „Up" / „Down" buttons to set the desired DMX address.
Confirm with „Enter" and press „Exit" to return to the main menu.
DMX Chart
The laser uses 18 DMX channels, so make sure that the next device uses an address that doesn't
overlap with this range.
Channel Value Function
1 Intensity 0 Laser off, CH 2 - 18 not available
1 - 255 RGB intensity 0~100% (also affects sound and auto mode)
2 Pattern select 0 - 255 Pattern selection
Rotation (Z-axis)
3 0 - 127 Rotation angle selection
128 - 191 Rotation counter-clockwise speed
192 - 255 Rotation clockwise speed
4 X-axis Rotation 0 - 127 Rotation X position steps
128 - 255 Rotation X speed
5 Y-axis Rotation 0 - 127 Rotation Y position steps
128 - 255 Rotation Y speed
6 X-axis Movement 0 - 127 X-axis movement position
128 - 255 X-axis movement speed
7 Y-axis Movement 0 - 127 Y-axis movement position
128 - 255 Y-axis movement speed
Size X
8 0 - 255 Size X from big to small
9 Size Y 0 - 255 Size Y from big to small
10 Pattern gradient 0 - 255 Gradient speed
page 10 / 37
Channel
11 Scan speed / Points
12 Color change
13 Color speed
14 no use
15 Operation mode
Red adjust
16
17 Green adjust
18 Blue adjust
4.1. SETTINGS
To access the settings, select „SEt" by navigating with the „Up" / „Down" buttons and confirm
with „Enter":
The settings menu holds several configuration options for the laser system.
Master Setting
The „uAST" menu allows for the activation and deactivation of the Master mode for the laser.
If the laser is set to Master > On, then it can be used as Master device in a Master-Slave setup.
See more in „4.3. Master-Slave".
Press „Enter" to change the settings. Use the „Up" / „Down" button to change the selection.
Confirm with „Enter".
Safety Setting
The „bEAu" menu can switch the beam block safety on and off. The beam block safety
prevents that very intense, single beams can be displayed. It is highly recommended to not
switch this feature off. Switching off the beam block safety is at your own risk! Lasers with
English English
Manual: CS-3000RGB | CS-6000RGB
Value Function
0 - 127 Scan speed
128 - 255 Point speed
0 - 24 Original color
25 - 199 Color selection
200 - 224 Automatic color change effect
225 - 255 Rainbow color change effect
0 - 255 Speed adjustment for automatic color change effect and multi
color step through
- -
0 - 199 DMX mode, CH 1 - 18 available
200 - 224 Sound mode, CH 1 & CH 16 - 18 available
225 - 255 Auto mode, CH 1 & CH 16 - 18 available
0 - 255 Red brightness adjust 100~0% (also affects sound and auto
mode)
0 - 255 Green brightness adjust 100~0% (also affects sound and auto
mode)
0 - 255 Blue brightness adjust 100~0% (also affects sound and auto
mode)
