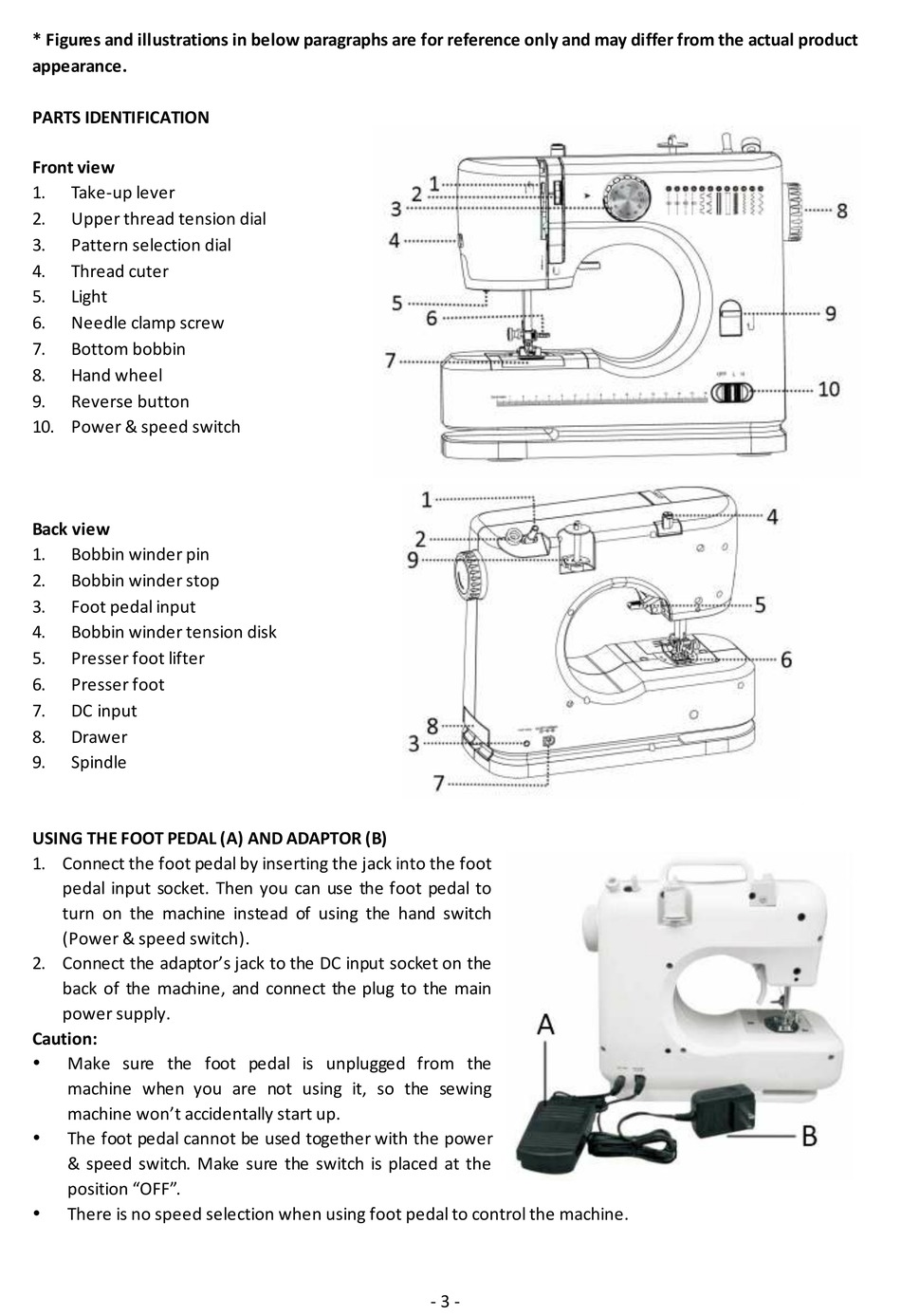

* Figures and illustrations in below paragraphs are for reference only and may differ from the actual product
appearance.
PARTS IDENTIFICATION
Front view
1. Take-up lever
2. Upper thread tension dial
3. Pattern selection dial
4. Thread cuter
5. Light
6. Needle clamp screw
7. Bottom bobbin
8. Hand wheel
9. Reverse button
10. Power & speed switch
Back view
1. Bobbin winder pin
2. Bobbin winder stop
3. Foot pedal input
4. Bobbin winder tension disk
5. Presser foot lifter
6. Presser foot
7. DC input
8. Drawer
9. Spindle
USING THE FOOT PEDAL (A) AND ADAPTOR (B)
1. Connect the foot pedal by inserting the jack into the foot
pedal input socket. Then you can use the foot pedal to
turn on the machine instead of using the hand switch
(Power & speed switch).
2. Connect the adaptor's jack to the DC input socket on the
back of the machine, and connect the plug to the main
power supply.
Caution:

Make sure the foot pedal is unplugged from the
machine when you are not using it, so the sewing
machine won't accidentally start up.

The foot pedal cannot be used together with the power
& speed switch. Make sure the switch is placed at the
position "OFF".

There is no speed selection when using foot pedal to control the machine.
