Installation of the smartLAB® cadspeed

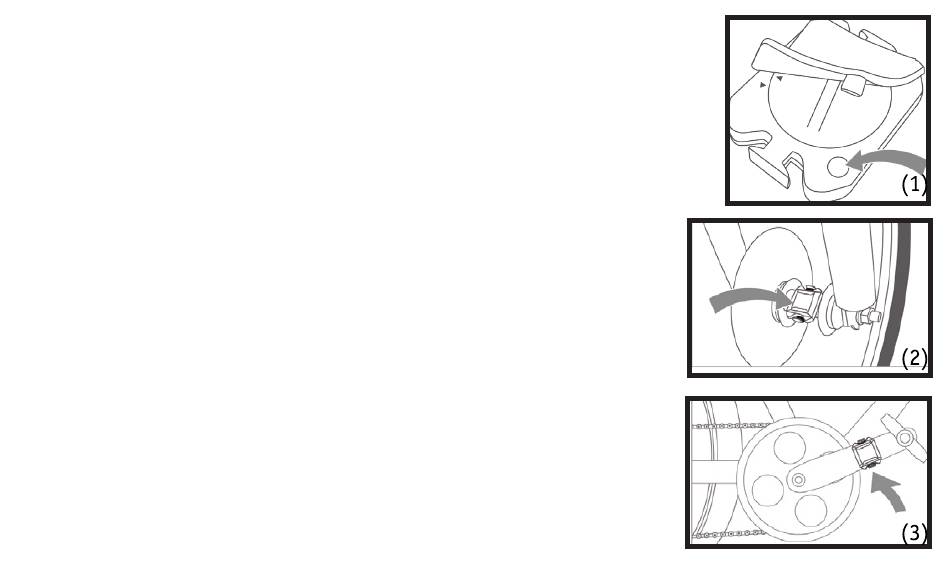

1. Installation for speed mode
Put the curved rubber mat onto the back of the sensor
(1). Now mount the sensor with the large rubber band
onto the wheel axle (2).
2. Installation for cadence mode
Put the flat rubber mat onto the back of the sensor
(1). Now mount the sensor with the small rubber
band onto the padle crank (3).
