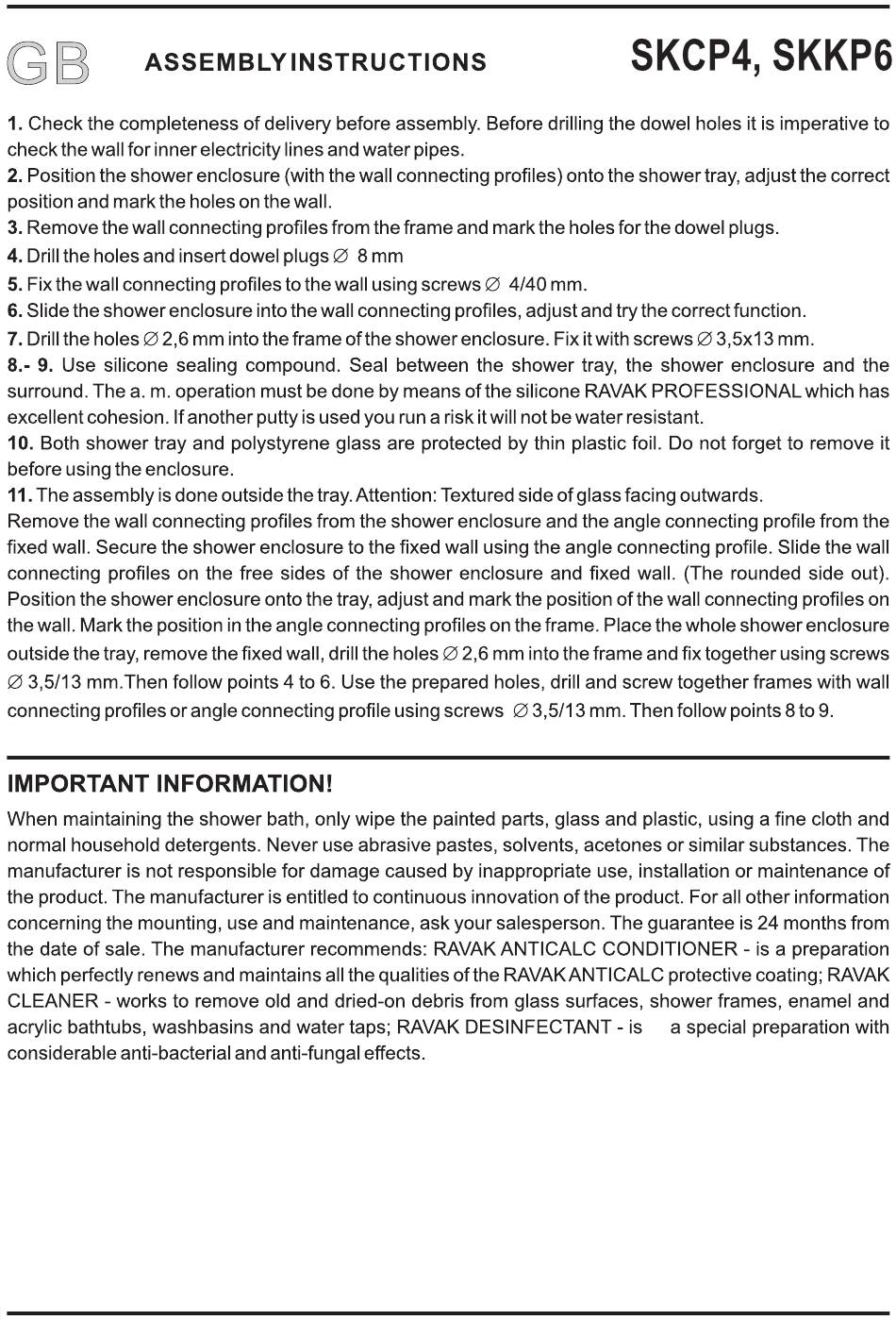

ASSEMBLY
I. Check the completeness
check the wall for inner electricity lines and water pipes
2. Position the shower enclosure
position and mark the holes on the wall
3. Remove the wall connecting profiles from the frame and mark the holes for the dowel plugs.
4. Drill the holes and insert dowel plugsØ 8 mm
5. Fix the wall connecting profiles to the wall using screwsØ 4/40 mm
6. Slide the shower enclosure into the wall connecting profiles, adjust and try the correct function
7. Drill the holes Ø 2,6 mm into the frame of the shower enclosure.
8.- 9. Use silicone sealing compound. Seal between the shower tray, the shower enclosure and the
surround. The a. m. operation
excellent cohesion. If another putty is used you run a risk it will not be water resistant.
10. Both shower tray and polystyrene glass are protected by thin plastic foil. Do not forget to remove it
before using the enclosure.
11. The assembly is done outside the tray. Attention. Textured side of glass facing outwards
Remove the wall connecting
fixed wall. Secure the shower enclosure to the fixed wall using the angle connecting
connecting profiles on the free sides of the shower enclosure and fixed wall (The rounded side out)
Position the shower enclosure
the wall. Mark the position in the angle connecting profiles on the frame. Place the whole shower enclosure
outside the tray, remove the fixed wall, drill the holes Ø 2,6 mm into the frame and fix together using screws
Ø 3,5/13 mm Then follow points 4 to 6. Use the prepared holes, drill and screw together frames with wall
connecting profiles or angle connecting profile using screws Ø3,5/13 mm. Then follow points 8 to 9
IMPORTANT INFORMATION!
When maintaining the shower bath, only wipe the painted parts, glass and plastic, using a fine cloth and
normal household detergents Never use abrasive pastes, solvents, acetones or similar substances. The
manufacturer is not responsible
the product. The manufacturer is entitled to continuous innovation of the product. For all other information
concerning the mounting,
the date of sale. The manufacturer recommends: RAVAK ANTICALC CONDITIONER - is a preparation
which perfectly renews and maintains all the qualities of the RAVAK ANTICALC protective coating; RAVAK
CLEANER - works to remove old and dried-on
acrylic bathtubs, washbasins and water taps; RAVAK DESINFECTANT
considerable anti-bacterial
