Avocent SwitchView 100 Schnellinstallationsanleitung

The following instructions will help you
install your SwitchView 100 switch.
Available in both two-port and four-port models,
the SwitchView 100 switch supports audio and
microphone capabilities, while enabling you to access,
manage and control power to attached USB PCs.
The independent audio/microphone feature allows
uninterrupted audio on a connected PCs, even when
you switch to another PC.
Connecting local peripherals
Power down all PCs. For two and four-port models,
plug your monitor cable into the monitor port on the
front left of your switch. Plug your keyboard and
mouse cables into the USB keyboard and mouse
ports located on the front of the SwitchView 100
switch, and plug your local audio jacks into the
appropriate Console ports.
Connecting audio and microphone
For two-port models, connect the audio cable
(included) to the PCI port on the right side of
your switch and insert the audio and microphone
connectors into the appropriate ports on your PC.
Repeat the process utilizing the PC2 port to add
audio and microphone functionality to a second PC
in your SwitchView 100 switching system.
For four-port models, connect the audio cables to
the corresponding speaker and microphone ports
on the switch and insert the audio and microphone
connectors into the appropriate ports on your PC.
Repeat as needed.
Connecting your PCs
Attach the serial connector of the 2-in-1 VGA/USB
cable (provided) to one of the serial ports on the
SwitchView 100 switch and secure. Attach the VGA/
USB connectors on the other end of the cable to the
appropriate port on your PC. Repeat the process
to add another PC.
To Contact Avocent Technical Support: Visit www.avocent.com
Avocent, the Avocent logo, The Power of Being There and SwitchView are registered trademarks of Avocent Corporation or its affi liates. All other marks are the property of their respective owners. ©2007 Avocent Corporation. All rights reserved.
Quick Installation Guide
SwitchView
For USB-Enabled PCs

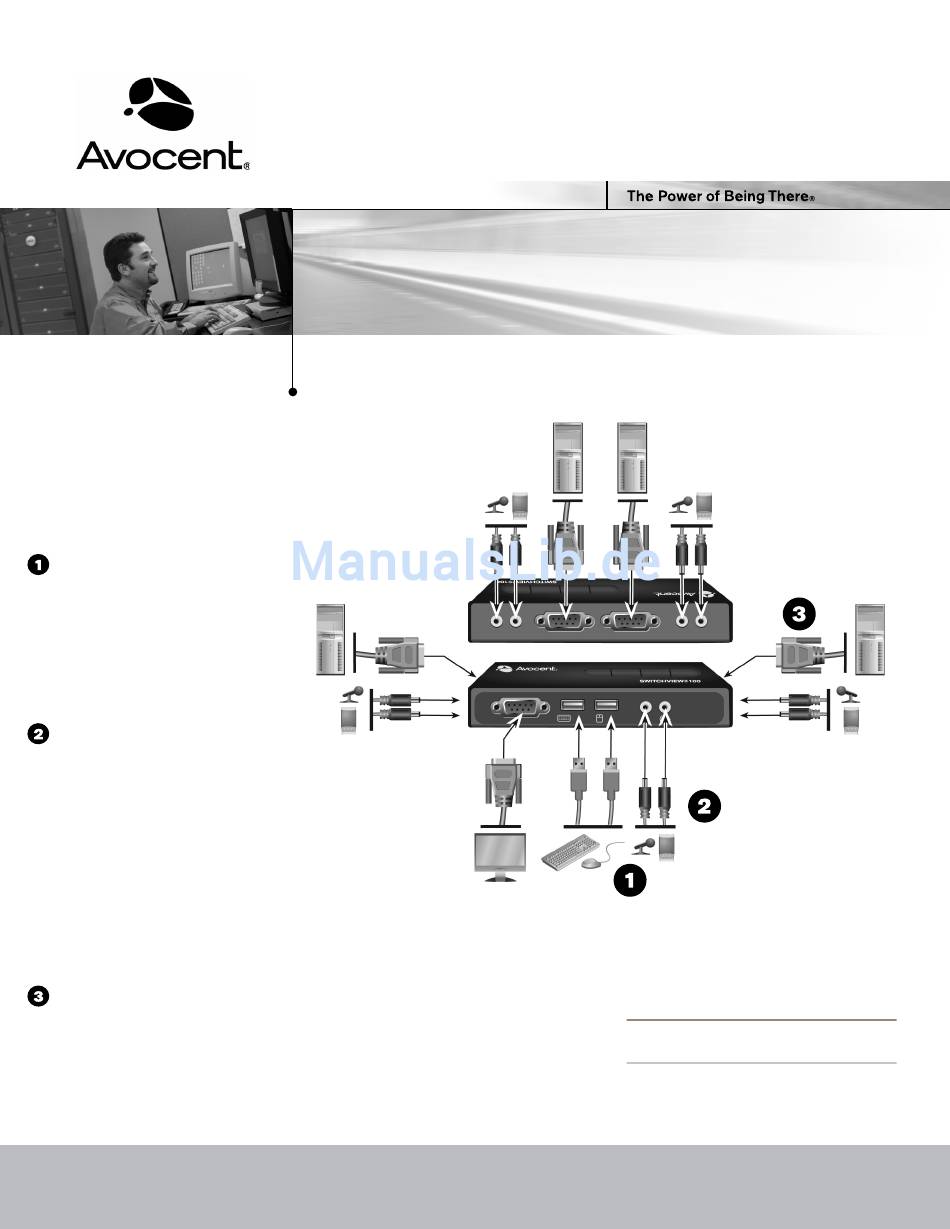

To install the SwitchView 100 switch

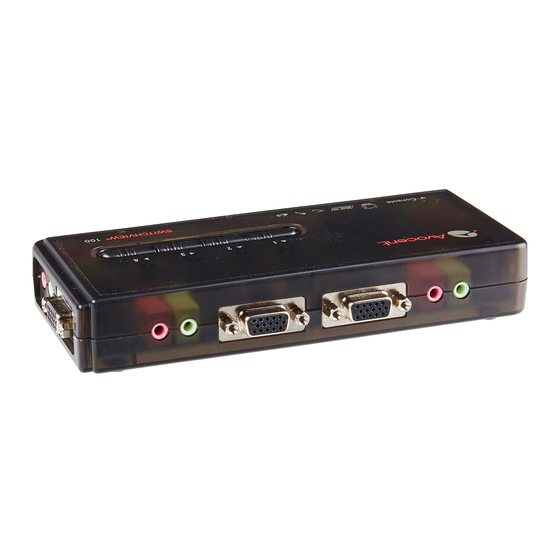

Four-port SwitchView 100
switch shown
Front view
Controlling the SwitchView 100 switch
There are two ways to utilize the SwitchView 100 switch
for PC control: push-buttons located on top of the switch
or a confi gurable hotkey sequence.
Using the top panel push-buttons
The top-panel push-buttons provide direct control over
switch operation and channel switching. Simply press the
button labeled 1 or 2 that corresponds with your attached
PC to gain access and control to that PC.
100 Switch
®
Rear view
Using the hotkey sequence
To select your PC, activate the hotkey sequence by
pressing either ScrLk + ScrLk or NumLk + NumLk.
Each keystroke must be pressed within two seconds
to validate the hotkey sequence.
NOTE: To maintain uninterrupted audio while
switching PCs, you must use the hotkey sequence.
For additional information
Please visit www.avocent.com for more information
on your SwitchView 100 switching system.
590-746-630B
