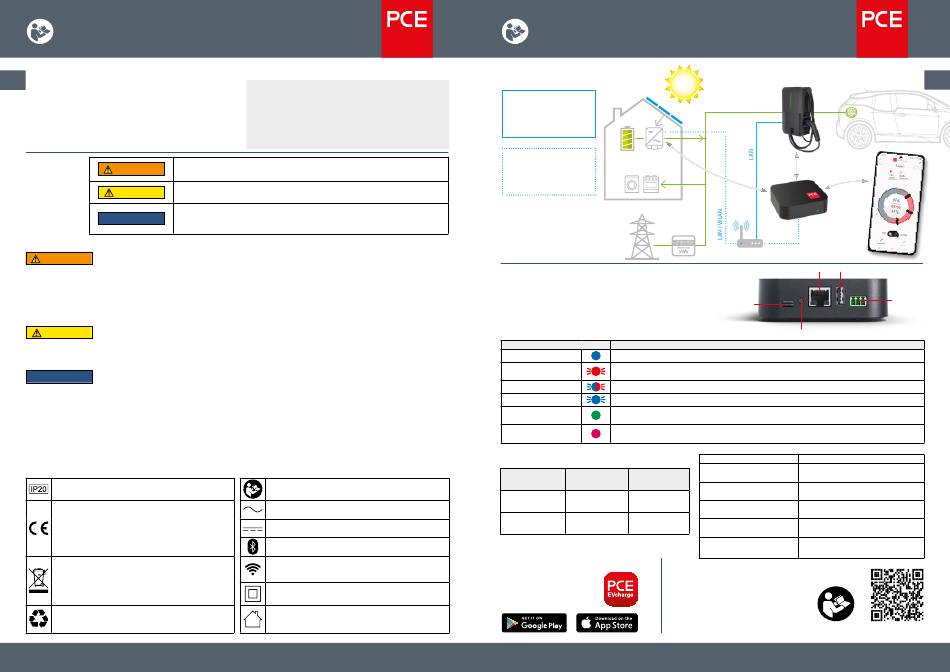

QUICK-START GUIDE

V1.0

PCE GATEWAY energy manager + APP

1. Allgemein

The PCE GATEWAY Energy Manager is produced by:

INRO Elektrotechnik GmbH

Leiderer Straße 12

D-63811 Stockstadt

www.inro-et.de

E-Mail: info@inro-et.de

Telefon: +49 (0) 6027 2085-500

2. Safety

Safety and warning instructions with this signal word indicate that failure to

WARNING

observe these instructions can result in death or severest personal injuries.

Safety and warning instructions with this signal word indicate that failure to

CAUTION

observe these instructions can result in minor or moderate personal injuries.

Safety and warning instructions with this signal word indicate that failure to ob-

NOTICE

serve these instructions can result in damages to equipment and the environment

respectively.

2.1. Safety instructions

• Before use, ensure that the PCE GATEWAY Energy Manager, the power supply unit and the

WARNING

connected peripheral devices are in a proper and safe condition. If there is any damage to the

power supply unit, the cable or the housing of the PCE GATEWAY Energy Manager, the product

must not be used. If a defect is detected during operation, the device must be disconnected

from the mains immediately.

• The PCE GATEWAY Energy Manager may only be used in dry indoor areas.

• Make sure the cables are laid securely and do not kink them.

• The PCE GATEWAY Energy Manager is not intended for charging functions.

CAUTION

• Disconnect the mains plug before cleaning. Clean the PCE GATEWAY Energy Manager only from

the outside with a slightly damp and soft cloth. Never use aggressive cleaning products, petrol or

similar.

• Only the supplied power supply unit may be used. The product does not have a mains switch and

NOTICE

may only be used on easily accessible sockets so that it can be removed quickly in an emergency

and after use. Voltage-free only when the plug is disconnected. Pull the plug directly from the

plug housing in an emergency, after use and during a thunderstorm.

• The appliance must not be opened by a layperson.

• CAUTION: Reversing the polarity of the RS485 connection terminals can damage the PCE

GATEWAY Energy Manager. Always observe the installation instructions.

• Always follow the detailled installation instructions..

• The type plate is located on the underside of the PCE GATEWAY Energy Manager.

2.2. Explanation of symbols

This symbol indicates the IP rating of the device.

This symbol indicates that the manufacturer complies with the

effective product specifications as stipulated in the Community

Harmonisation Legislation of the European Union.

This symbol denotes the method of disposal: Devices with this

symbol may not be disposed with the household waste but

need to be taken to the local collection point for electric and

electronic waste. Please make sure to dispose of this device

at such a collection point.

This is the international symbol for recycling and denotes re-

usable goods. Please ensure sorted disposal of the packaging

of this device.

EU Declaration of Conformity

Hereby, INRO Elektrotechnik GmbH declares

that the radio equipment type PCE GATEWAY

is in compliance with Directive 2014/53/EU. The full text

of the EU Declaration of Conformity is available at the

following Internet address:

https://inro.tech/pcekonformitaet

This symbol means "Observe operating instructions".

This symbol means that the appliance is only suitable for

alternating current.

This symbol means that the appliance is only suitable for direct

current.

This symbol means that the device is Bluetooth-capable.

This symbol means that the device is WiFi-capable.

This symbol identifies devices that meet the safety require-

ments for Class II devices in accordance with IEC 61140.

This symbol identifies electrical equipment intended primarily

for indoor use.

QUICK-START GUIDE

V1.0

PCE GATEWAY energy manager + APP

3. Block diagram - connections

3.1. Connect Wallbox

EV11.3 with the Inter-

net-router via network

cable (LAN)

3.2. Connect the GATE-

WAY to the Internet-

router via network cable

(LAN) or WiFi (WLAN)

Smartmeter

4. GATEWAY - Connections

4.1. Connect the GATEWAY to the mains

using the USB-C power adapter supplied.

4.2. GATEWAY status LED

LED

Lights up BLUE

Energy manager is in operation and connected to the Internet.

Energy manager is ready for operation but not connected to the Internet.

Flashes RED

Perform WiFi setup or connect to the Internet using a LAN cable.

Flashes BLUE/RED

Energy manager is ready for operation, but the WiFi signal is very weak.

Flashes BLUE

Energy manager is in WiFi setup mode. The Bluetooth server is active.

Energy manager is booting. A restart is triggered by a reset or a software update.

Lights up GREEN

The device is then ready for operation again.

Energy manager is being restored (recovery partition).

Lights up PINK

Please do not disconnect from the mains!

5. Tecnical specifications

Transmission

function

frequency

power

WLAN 802.11

2412-2472 MHz

≤ 100 mW

b/g/n (2,4 GHz)

Bluetooth 4.2

2402-2480 MHz

≤ 10 mW

Low Energy

6. PCE APP „EVcharge"

7. Instruction manuals

Download and install the

PCE EVcharge APP

Detailed instructions for the WALLBOX

EV11.3 and the PCE GATEWAY Energy

Manager can be found at:

https://www.pcelectric.at/en/info-media/emobility-manuals.html

PCE Gateway

WLAN, LAN,

Bluetooth, RS485

LAN / WLAN

Internet

Ethernet

USB 2.0 Typ A

USB Typ C

(power supply)

Reset / Pairing

STATUS

Dimensions (L x B x H)

99 x 99 x 31 mm

Ambient temperature

-20 °C bis +45 °C

operation

Ambient temperature

-40 °C bis +80 °C

transport/storage

power supply external

230 V ~50Hz

(included)

power supply PCE gate-

5V = 2A max.

way energy manager

Table-top appliance (place the

Position for use

appliance on the feet provided)

RS485
