The infra-red remote control RC1 can be used
to operate the units of the atelier product line.
It is possible to operate the different units from
the remote control if the address selector is
moved to the corresponding position.
@ compact disc
@ digtal tape
@ audio
@ satellite tuner
@ video recorder 2
@ video recorder 1
@ television
address selector
release button
flap
window
control diode
mf P
The operating controls of the RC1 and their
functions are discribed in the operating in-
structions of each unit.
Part of the operating controls are situated
under the flap (C). These buttons are only
accessible if the flap is open. The address
selector (A) must then be so positioned that
the required unit is indicated in the window
(D). Therefore the flap (C) must be opened by
pressing the release button (B).
Whenever the buttons of the RC1 are operat-
ed, the green control diode (E) flickers.
The remote control is ready for operation after
the battery has been inserted.

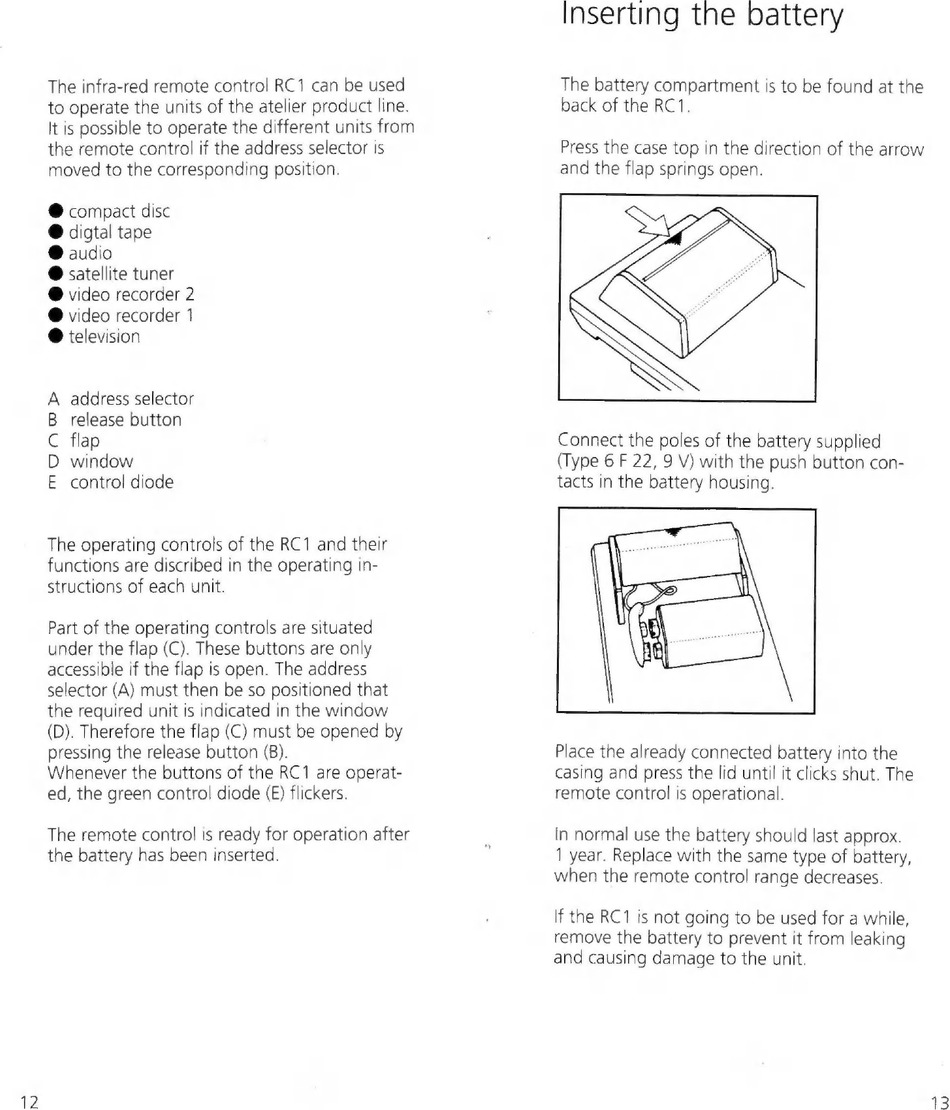

Inserting the battery
The battery compartment is to be found at the
back of the RC1.
Press the case top in the direction of the arrow
and the flap springs open.
A
Connect the poles of the battery supplied
(Type 6 F 22, 9 V) with the push button con-
tacts in the battery housing.
Place the already connected battery into the
casing and press the lid until it clicks shut. The
remote control is operational.
In normal use the battery should last approx.
1 year. Replace with the same type of battery,
when the remote control range decreases.
If the RC1 is not going to be used for a while,
remove the battery to prevent it from leaking
and causing damage to the unit.
