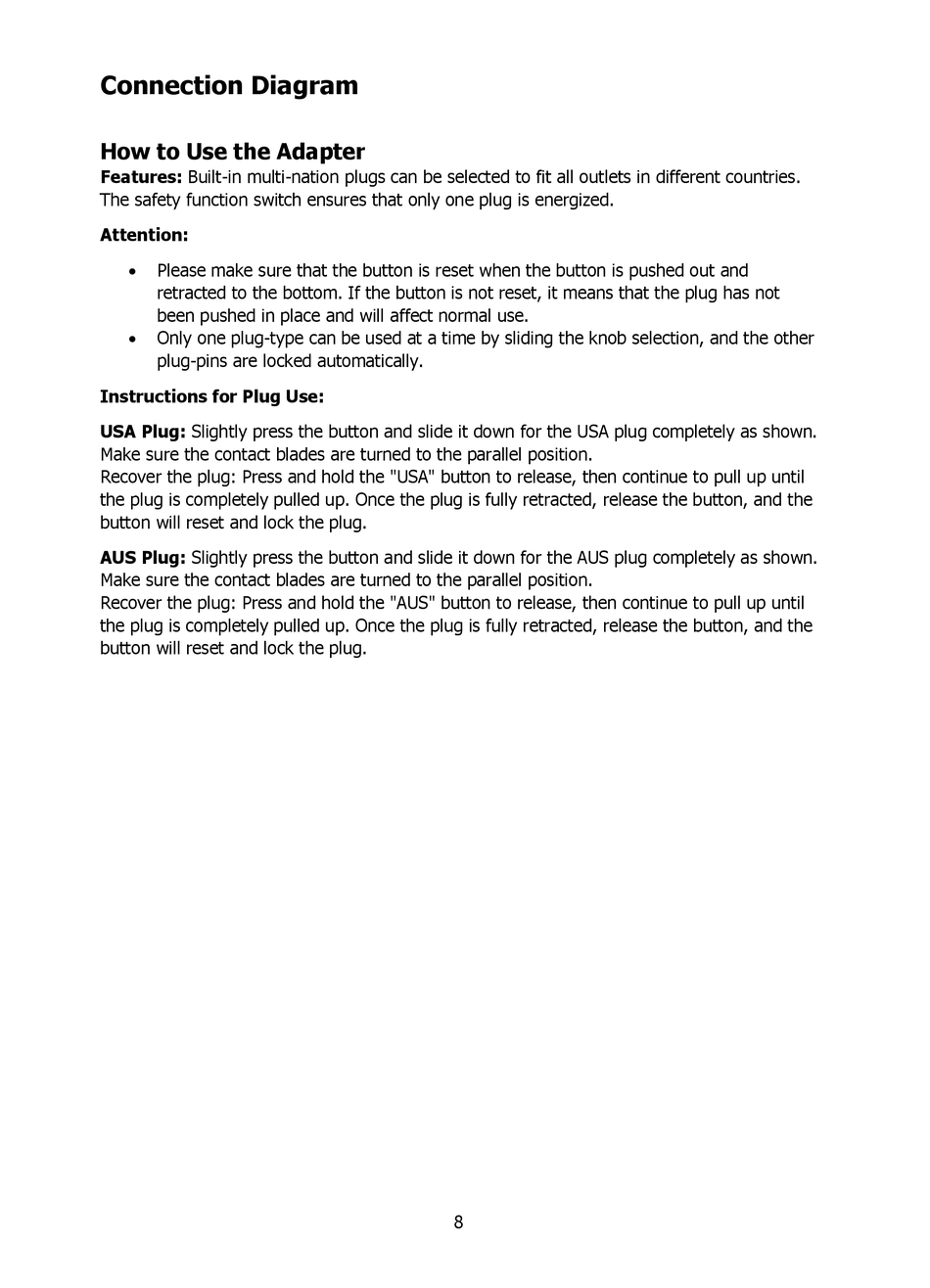

Connection Diagram

How to Use the Adapter
Features: Built-in multi-nation plugs can be selected to fit all outlets in different countries.
The safety function switch ensures that only one plug is energized.
Attention:

Please make sure that the button is reset when the button is pushed out and
retracted to the bottom. If the button is not reset, it means that the plug has not
been pushed in place and will affect normal use.

Only one plug-type can be used at a time by sliding the knob selection, and the other
plug-pins are locked automatically.
Instructions for Plug Use:
USA Plug: Slightly press the button and slide it down for the USA plug completely as shown.
Make sure the contact blades are turned to the parallel position.
Recover the plug: Press and hold the "USA" button to release, then continue to pull up until
the plug is completely pulled up. Once the plug is fully retracted, release the button, and the
button will reset and lock the plug.
AUS Plug: Slightly press the button and slide it down for the AUS plug completely as shown.
Make sure the contact blades are turned to the parallel position.
Recover the plug: Press and hold the "AUS" button to release, then continue to pull up until
the plug is completely pulled up. Once the plug is fully retracted, release the button, and the
button will reset and lock the plug.
