ASSEMBLY OF THE ALIGNMENT TOOL
Carry on an unaided, preliminary alignment after the installation of the light curtain and
of the possible deflection mirrors, then:
• Hook the LAD5 to the emitter along its vertical axis on the side of the optical window
(see pct. 1). The correct coupling insures a following good work.
• Check that no person is present in the laser field of action.
• Power on the LAD5 (see pct.1, detail A).
• Check the presence of the red beam by means of a white sheet; NEVER check the
presence of the beam directly.
LASER BEAM
POSITION
• Check that the red spot appears on the receiver side (at the same height of the LAD5
on the emitter side).
• In case the spot is not in the expected position, adjust the alignment of emitter and
receiver through the mounting brackets.
• For a more precise alignment, it is convenient to make the adjustment placing in the
spot in the upper, middle and lower parts of the light curtain.
➔
When repeating the test, never turn the LAD5 upside down: the laser beam must
always be positioned as shown in Figure 1.
8541363 - 14/03/2022 - Rev.3
LASER ALIGNMENT DEVICE

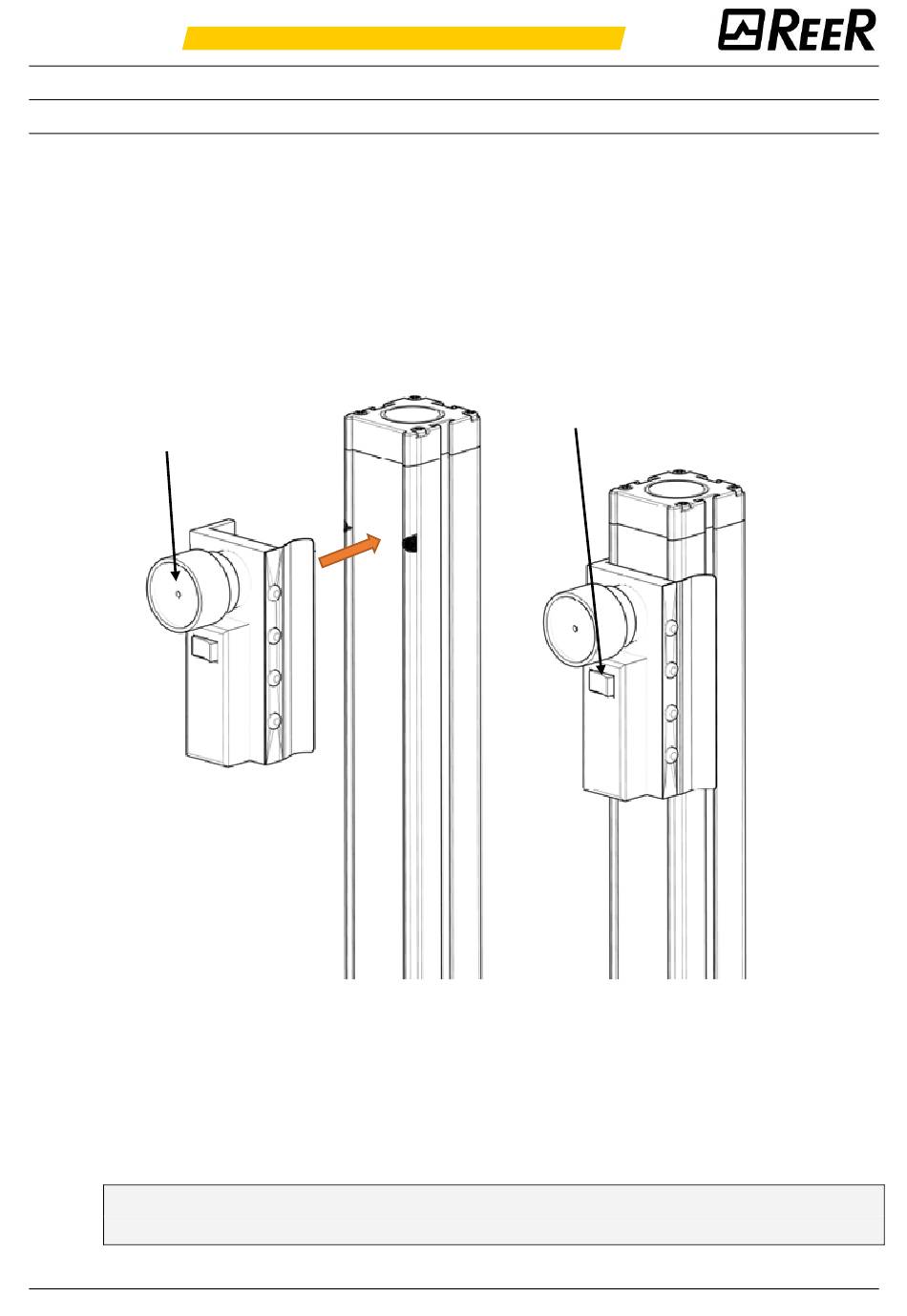

Picture 1
