USER MANUAL

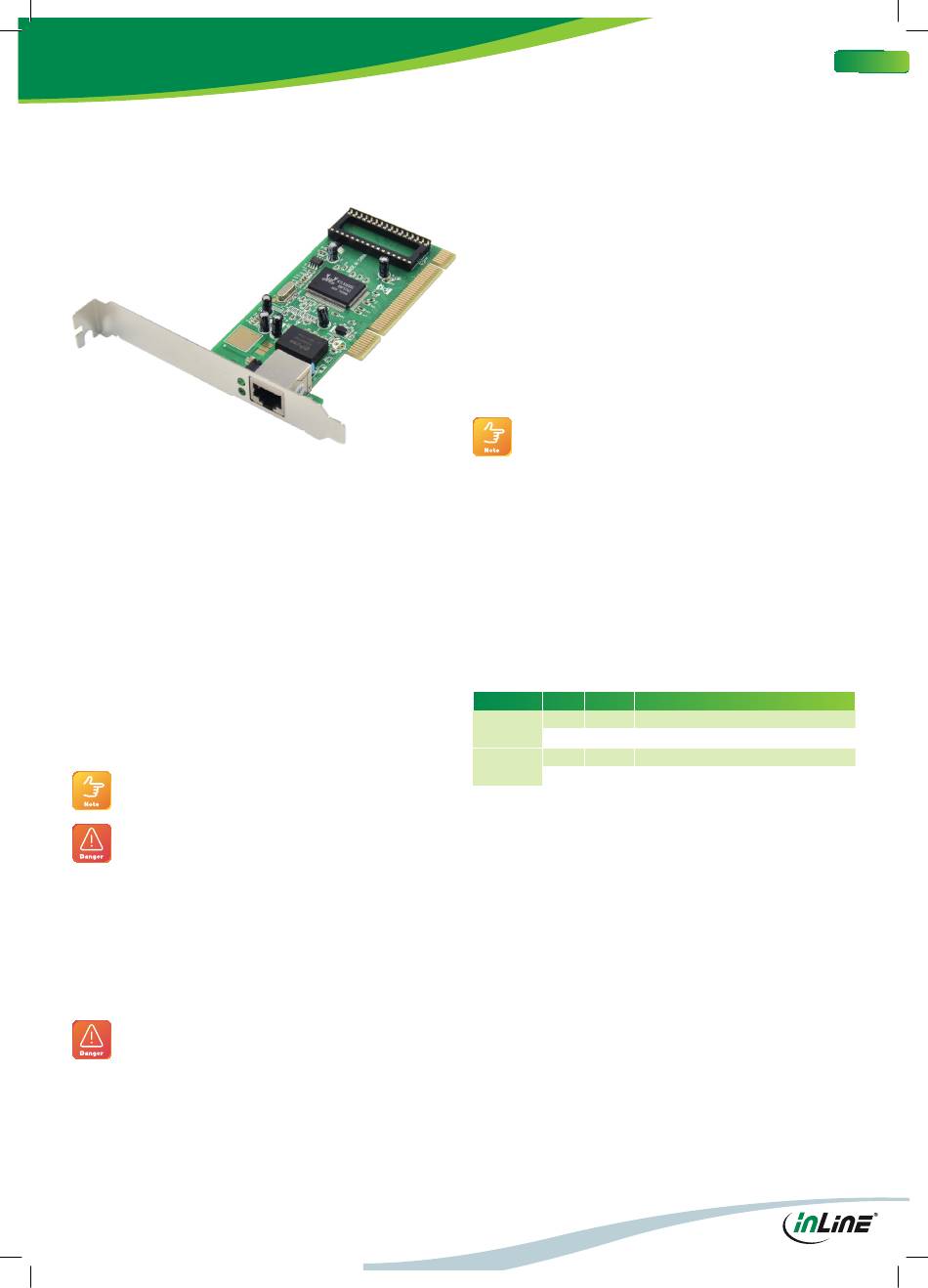

InLine® Gigabit Ethernet PCI Adapter 1x RJ45
GENERAL INFORMATION
Validity:
This user manual applies to the following product:
• 51115B InLine® Gigabit Ethernet PCI Adapter 1x RJ45
Manufacturer:
INTOS ELECTRONIC AG
Siemensstraße 11
D-35394 Gießen
service@inline-info.com
Date: 06 / 2024
CONTENT OF DELIVERY
1x InLine® Gigabit Ethernet PCI Adapter
1x Low-profi le slot bracket
1x Driver CD
1x Instruction manual (German/English)
Please check the content of delivery for completeness. If individual components
are missing, please contact your dealer.
EXPLANATION OF WARNING SYMBOLS AN NOTES
This symbol indicates information that contributes to a better unders-
tanding.
This symbol indicates that there are fundamental risks to the health of
persons.
INTENDED USE
This InLine® Gigabit Ethernet adapter is an additional card for plugging into the
computer.
• Can be used with Windows PC, Linux and Unix
• Installation in a free PCI slot on the computer's mainboard
GENERAL WARNINGS
• Do not open the housing for installation until the power source has been
disconnected
• Protect from dust and moisture
If the computer housing is open, live parts can be touched, there is a
risk of electric shock and the installation may have to be carried out by
a specialised company.
NON-INTENDED USE
The following is considered improper use in the sense of foreseeable misuse:
• Install the PCI adapter in the correct slot, otherwise the computer and card may
be damaged.
• Avoid the occurrence of short circuits or bypasses during installation.
INTRODUCTION
This InLine® Gigabit Ethernet PCI adapter is a high performance 10/100/1000 BA-
SE-T Ethernet LAN controller, which is perfect for home and offi ce use.
It offers a cost-effective solution for connecting to a network at a data transfer
rate of up to 1000 Mb/s and can be used with any Cat.5e cabling or higher up to a
maximum distance of 100 metres without any problems.
SYSTEM REQUIREMENT
• Mainboard with an available PCI slot
• Supporting operating system
• Optical drive for driver installation
• Optional drivers can be downloaded from the following page: www.inline-info.
com/downloadcenter
Before installing and activating the interface card, please ensure that you
have a complete backup of your existing data from the hard disc. The
manufacturer is not responsible for data transfer due to misuse, misappli-
cation or negligence. If you have an installation problem, please contact your dealer.
FEATURES / SPECIFICATIONS
• Chipset Realtek RTL8169SC
• 10 / 100 / 1000 Mb/s data rate
• Complies with PCI V2.2 32/64 bit 33/66 MHz
• Fully compliant with IEEE 802.3, 802.3u, 802.3ab
• Supports full duplex fl ow control (IEEE 802.3x)
• Supports IEEE 802.1Q VLAN tagging
• Supports Wake on LAN (WoL)
• Supports ACPI and PCI power management
• Compatible with existing CAT-5e UTP cabling or higher
• Supports Microsoft Windows 98SE or newer, Server 2003 or newer, Linux
kernel 2.4.x or newer, macOS X 10.4 or newer
• Crossover detection and auto-correction mode
• Supports Boot ROM (optional)
• Backwards compatible with 10/100BASE-TX networks
LED Color Status Description
100M Link Green On The port is working with 100 Mb/s
Off No link or working at 1000M mode
1000M Link Green On The port is working with 1000 Mb/s
Off No link or working at 100M mode
HARDWARE INSTALLATION
1. Switch off your computer and all external devices connected to it
2. Disconnect your computer from the power source, unplug the power cable,
disconnect all peripheral devices
3. Open the computer case. Refer to the computer manual for further details
4. Locate a free PCI slot and remove the slot bracket. Save the retaining screw
for later use
5. Align the card horizontally to the PCI slot and insert it fi rmly and evenly into
the slot
6. Once you have inserted the card correctly into the slot, secure it to the com-
puter housing using the retaining screw
7. Connect the system to the network by plugging the 8-wire Cat.5e or Cat.6
cable (not included) into the RJ45 connector on the network card
8. Close and secure the computer housing. Switch on your computer after you
have connected all peripheral devices and the power cable
UPDATE DRIVER:
The latest drivers and the latest changes to this document can be found here:
https://www.inline-info.com/downloadcenter
