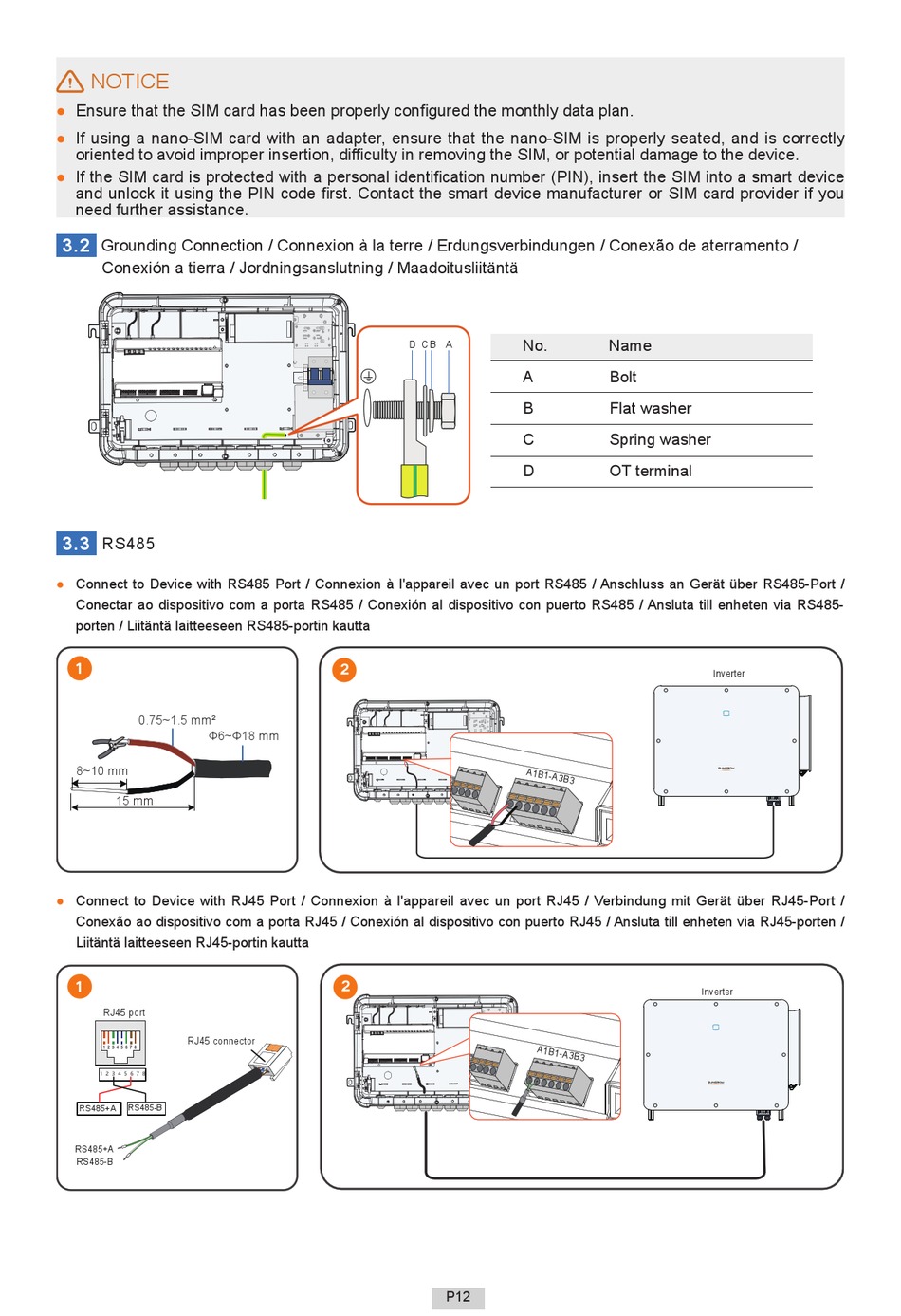

NOTICE
●
Ensure that the SIM card has been properly configured the monthly data plan.
●
If using a nano-SIM card with an adapter, ensure that the nano-SIM is properly seated, and is correctly
oriented to avoid improper insertion, difficulty in removing the SIM, or potential damage to the device.
●
If the SIM card is protected with a personal identification number (PIN), insert the SIM into a smart device
and unlock it using the PIN code first. Contact the smart device manufacturer or SIM card provider if you
need further assistance.
3.2
Grounding Connection / Connexion à la terre / Erdungsverbindungen / Conexão de aterramento /
Conexión a tierra / Jordningsanslutning / Maadoitusliitäntä
3.3
RS485
●
Connect to Device with RS485 Port / Connexion à l'appareil avec un port RS485 / Anschluss an Gerät über RS485-Port /
Conectar ao dispositivo com a porta RS485 / Conexión al dispositivo con puerto RS485 / Ansluta till enheten via RS485-
porten / Liitäntä laitteeseen RS485-portin kautta
2
0.75~1.5 mm²
Ф6~Ф18 mm
8~10 mm
15 mm
●
Connect to Device with RJ45 Port / Connexion à l'appareil avec un port RJ45 / Verbindung mit Gerät über RJ45-Port /
Conexão ao dispositivo com a porta RJ45 / Conexión al dispositivo con puerto RJ45 / Ansluta till enheten via RJ45-porten /
Liitäntä laitteeseen RJ45-portin kautta
2
RJ45 port
RJ45 connector
1 2 3 4 5 6 7 8
RS485-B
RS485+A
RS485+A
RS485-B
D
C
B
A
3
3
P12
No.
Name
A !
Bolt
B
Flat washer
C
Spring washer
D
OT terminal
Inverter
Inverter
