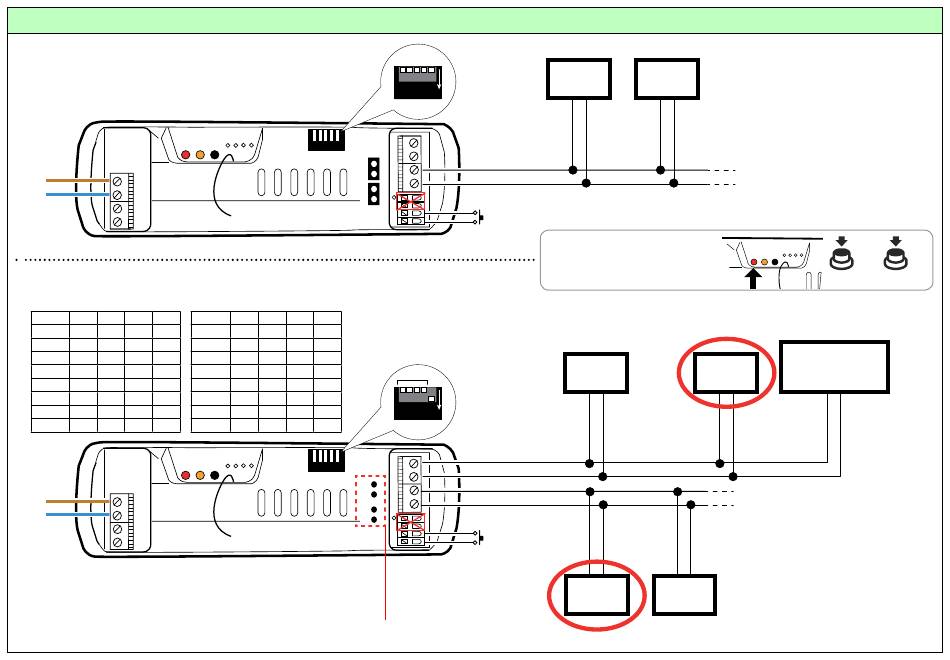

IT - Collegamenti
EN - Wirings
BROADCAST
L
230V~
N
L
N
DALI GROUP (0..15)
GROUP
DIP1
DIP2
DIP3
DIP4
0
OFF
OFF
OFF
OFF
1
OFF
OFF
OFF
ON
2
OFF
OFF
ON
OFF
3
OFF
OFF
ON
ON
4
OFF
ON
OFF
OFF
5
OFF
ON
OFF
ON
6
OFF
ON
ON
OFF
7
OFF
ON
ON
ON
L
230V~
N
L
N
IT - Rimuovere J1 e J2 se si usa un alimentatore DALI esterno!
EN - Remove J1 and J2 if an external DALI power supply is used!
FR - Enlever J1 et J2 si on utilise un alimentateur DALI extérieur!
DE - J1 und J2 entfernen bei Verwendung eines externen DALI Transformators!
FR - Connexions
DIP1..5 = OFF
DIP
J1
J2
GROUP
DIP1
DIP2
DIP3
DIP4
8
ON
OFF
OFF
OFF
9
ON
OFF
OFF
ON
10
ON
OFF
ON
OFF
11
ON
OFF
ON
ON
12
ON
ON
OFF
OFF
13
ON
ON
OFF
ON
14
ON
ON
ON
OFF
15
ON
ON
ON
ON
DIP
J1
J2
DE - Anschlüsse
SLAVE 1
1 2 3 4 5
ON
DA1
DALI OUT
DA2
T3
IT - Per verificare il collegamento dei led:
EN - To test the led wiring:
FR - Pour vérifier la connexion des LEDs:
DE - Um den Anschluss der LEDs zu überprüfen:
DIP5 = ON
DALI GROUP
1 2 3 4 5
ON
DA1
DALI IN
DA2
DA1
DALI OUT
DA2
T3
DALI GROUP
2
SLAVE 2
TVDMAxxxA01
TVDMAxxxA02
P1
DALI GROUP
...
SLAVE
SLAVE
SLAVE
SLAVE
≤ 20 slaves
≤ 64 slaves
< 1s
> 1s
ON/OFF
DIMMER
(EIN/AUS)
ꜛ ꜜ
DALI
POWER SUPPLY
UNIT
