Installation instructions, only for experts

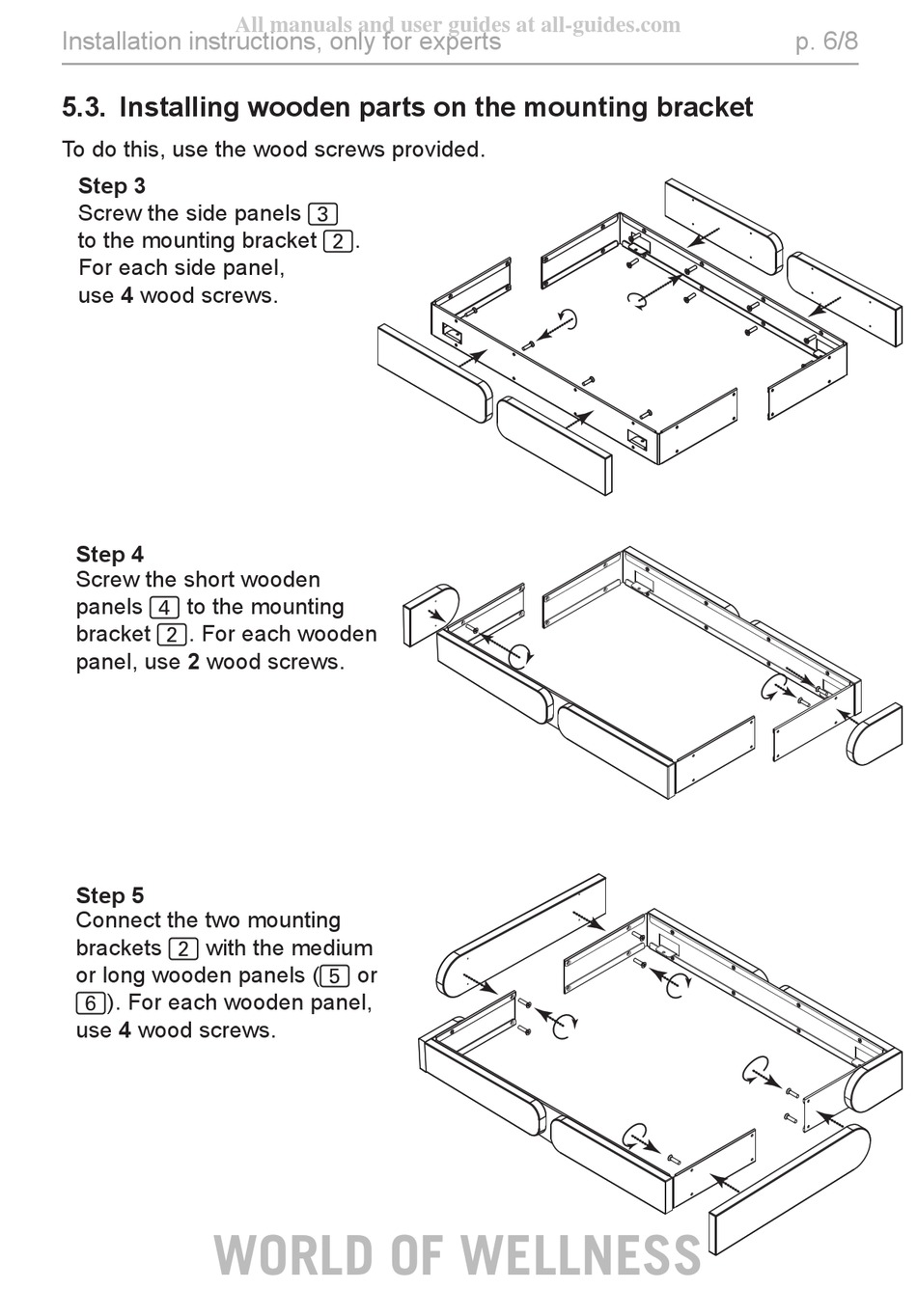

5.3. Installing wooden parts on the mounting bracket

To do this, use the wood screws provided.
Step 3
Screw the side panels 3
to the mounting bracket 2.
For each side panel,
use 4 wood screws.
Step 4
Screw the short wooden
panels 4 to the mounting
bracket 2. For each wooden
panel, use 2 wood screws.
Step 5
Connect the two mounting
brackets 2 with the medium
or long wooden panels (5 or
6). For each wooden panel,
use 4 wood screws.
WORLD OF WELLNESS
p. 6/8
