Installation
Adjustment of the input sensitivity of the
highlevel inputs:
Jumper upper position*
Highlevel
5 V 10 V*
RCA / Cinch
2 V 4 V*
* Ex factory adjustment of HELIX DSP PRO MK2
Jumper lower position
10 V 20 V
2 V 4 V

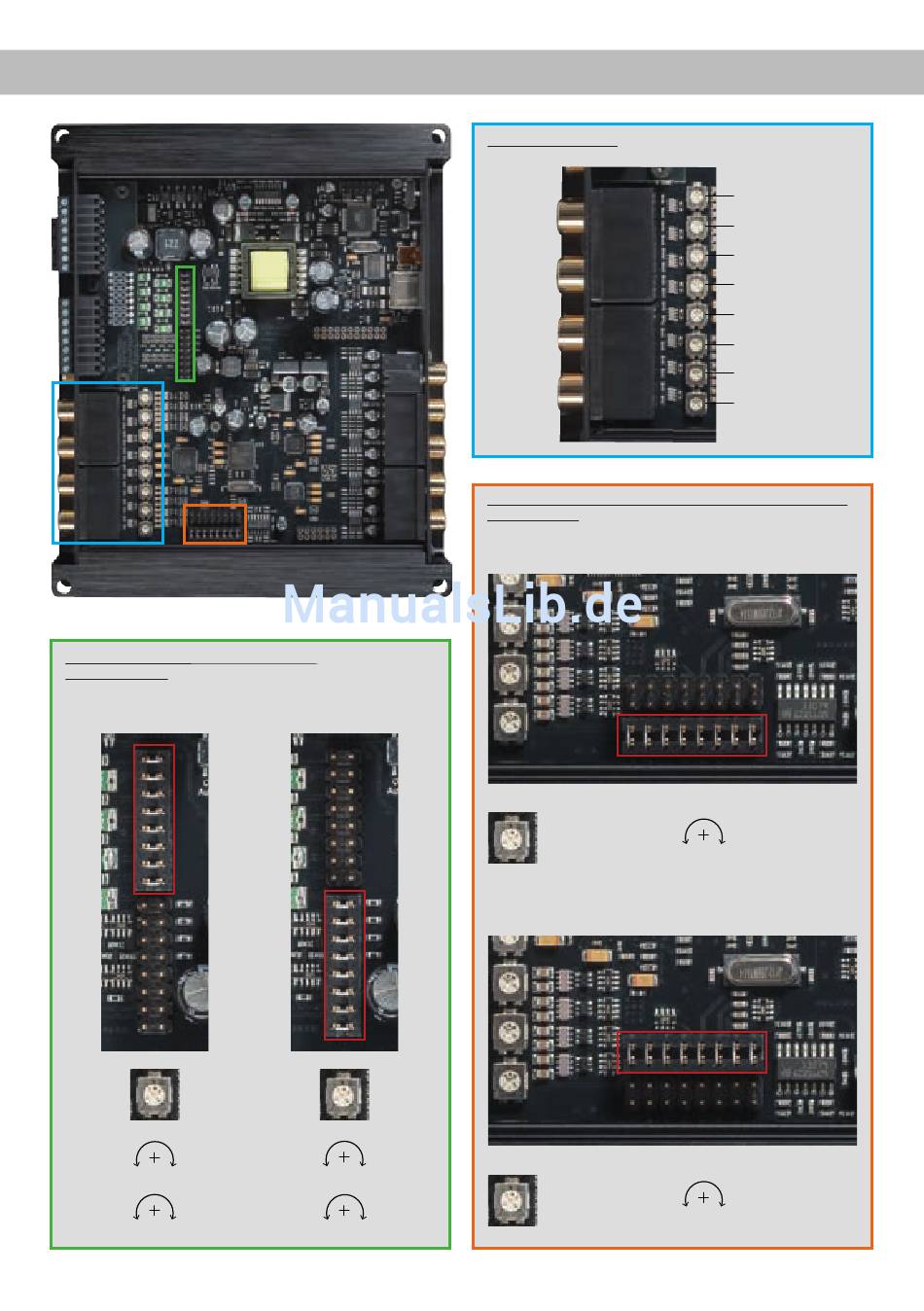

Fig. 2
Channel assignment:
Adjustment of the input sensitivity for using channel G & H
as AUX inputs:
Jumper lower position*
Channel G & H:
Jumper upper position
Channel G & H:
250 mV 500 mV
Channel A
Channel B
Channel C
Channel D
Channel E
Channel F
Channel G
Channel H
Fig. 1
2 V 4 V*
Fig. 3
19
