Lezyne HECTO STVZO E50 Bedienungsanleitung

72924-81

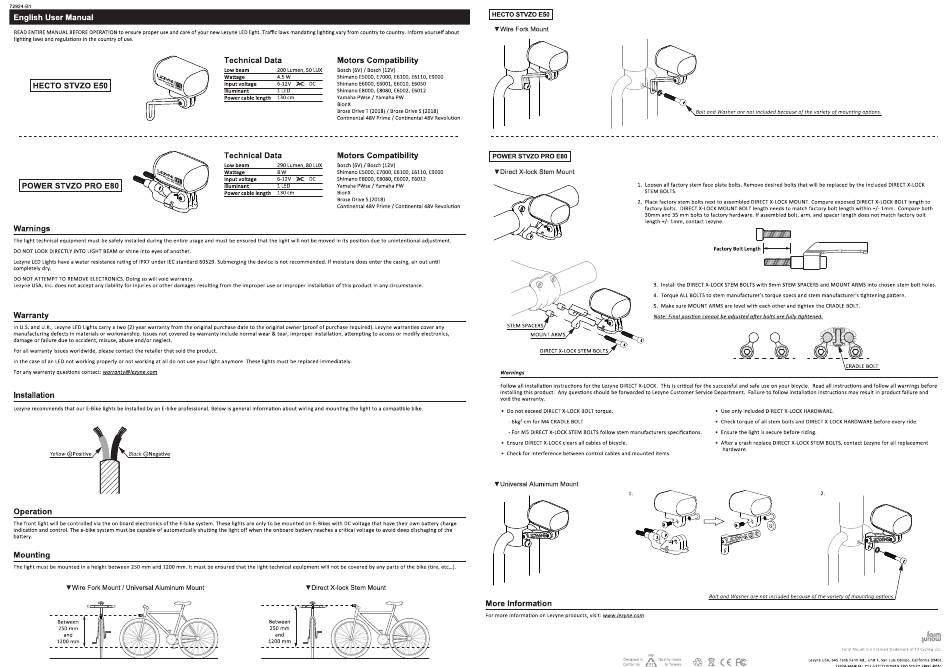

English User Manual
READENTIREMANUAL BEFOREOPERATIONto ensure proper use and care of your new Lezyne LEDlight. Traffic laws mandating lighting vary from country to country. Inform yourself about
lighting laws and regulations in the country Of use.

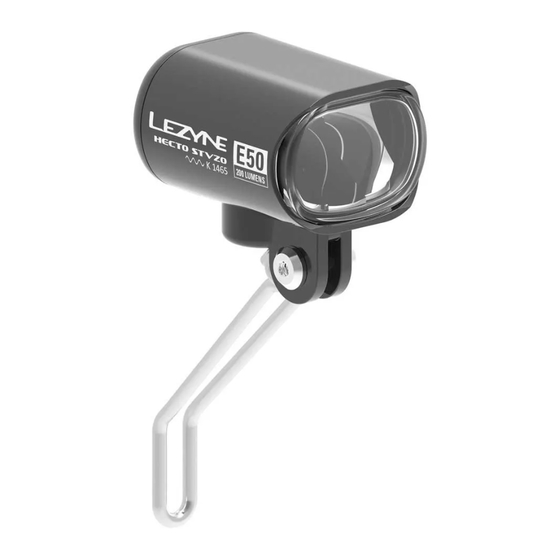

HECTO STVZO E50
POWER STVZO PRO E80
Warnings
The light technical equipment must be safely installed during the entire usage and must be ensured that the light will not be moved in its position due to unintentional
DO NOT LOOK DIRECTLYINTO LIGHT BEAM or shine into eyes of another.
Lezyne LED Lights have a water resistance rating of IPX7 under IEC standard
completely dry.
DO NOT ATTEMPT TO REMOVE ELECTRONICS. Doing so will void warranty.
Lezyne USA, Inc. does not accept any liability for injuries or other damages resulting from the improper use or improper installation of this product in any circumstance.
Warranty
In U.S. and U.K., Lezyne LED Lights carry a two (2) year warranty from the original purchase date to the original owner (proof of purchase required). Lezyne warranties cover any
manufacturing defects in materials or workmanship. Issues not covered by warranty include normal wear & tear, improper installation,
damage or failure due to accident, misuse, abuse and/or neglect.
For all warranty issues worldwide, please contact the retailer that sold the product.
In the case of an LED not working properly or not working at all do not use your light anymore. These lights must be replaced immediately.
For any warranty questions contact: warranty@lezyne.com
Installation
Lezyne recommends that our E-Bike lights be installed by an E-bike professional. Below is general information
Yellow + Positive Black @Negative
Operation
The front light will be controlled via the on board electronics of the E-bike system.
indication and control. The e-bike system must be capable of automatically
battery.
Mounting
The light must be mounted in a height between 250 mm and 1200 mm. It must be ensured
V Wire Fork Mount / Universal Aluminum Mount
Between
250 mm
and
1200 mm
Technical Data Motors Compatibility
Low beam Bosch (6V) / Bosch (12V)
200 Lumen 50 LUX
Shimano E5000, E7000, E6100, E6110, E9000
Watta e
Input voltage 6-12V x DC Shimano E6000, E6001, E6010, E6050
Illuminant 1 LED Shimano E8000, E8080, E6002, E6012
Power cable length 130 cm Yamaha PWse / Yamaha PW
BionX
Brose Drive T (2018) / Brose Drive S (2018)
Continental 48V Prime / Continental
Technical Data Motors Compatibility
Low beam 290 Lumen, 80 LUX Bosch (6V) / Bosch (12V)
Shimano E5000, E7000, E6100, E6110, E9000
Watta e
Input voltage Shimano E8000, E8080, E6002, E6012
6-12V x DC
Illuminant 1 LED Yamaha PWse / Yamaha PW
130 cm BionX
Power cable length
Brose Drive S (2018)
Continental 48V Prime / Continental 48V Revolution
60529. Submerging the device is not recommended. If moisture does enter the casing, air out until
attempting to access or modify electronics,
about wiring and mounting the light to a compatible bike.
These lights are only to be mounted on E-Bikes with DC voltage that have their
shutting the light off when the onboard battery reaches a critical voltage to avoid deep dischaging of the
that the light technical equipment will not be covered by any parts of the bike (tire,
V Direct X-Iock Stem Mount
Between
250 mm
and
1200 mm
HECTO STVZO E50
V Wire Fork Mount
48V Revolution
POWER STVZO PRO E80
V Direct X-Iock Stem Mount
adjustment.
STEM SPACERS
MOUNT ARMS
DIRECT X-LOCK STEM
Warnings
Follow all installation instructions for the Lezyne DIRECT X-LOCK. This is critical
installing this product. Any questions should be forwarded to Lezyne Customer Service Department.
void the warranty.
• Do not exceed DIRECT X-LOCK BOLT torque.
- 6kgf-cm for M4 CRADLE BOLT
- For M5 DIRECT X-LOCK STEM BOLTSfollow stem manufacturers specifications.
• Ensure DIRECT X-LOCK clears all cables of bicycle.
• Check for interference between control
V Universal Aluminum Mount
own battery charge
etc...).
More Information
For more information on Lezyne products,
Bolt and Washer are not included because of the variety of mounting options.
1. Loosen all factory stem face plate bolts. Remove desired
STEM BOLTS.
2. Place factory stem bolts next to assembled DIRECT X-LOCK MOUNT.
factory bolts. DIRECT X-LOCK MOUNT BOLT length needs to match factory bolt length within +/- Imm.
30mm and 35 mm bolts to factory hardware. If assembled bolt, arm, and spacer length does not match factory bolt
length +/- Imm, contact Lezyne.
Factory Bolt Length
3. Install the DIRECT X-LOCK STEM BOLTS with 9mm
Torque ALL BOLTSto stem manufacturer's torque specs and stem manufacturer's
4.
Make sure MOUNT ARMS are level with each other and tighten the CRADLEBOLT.
5.
Note: Final position cannot be adiusted after bolts are fullv tiqhtened.
BOLTS o
for the successful and safe use on your bicycle.
Failure to follow installation instructions
Use only included DIRECT X-LOCK HARDWARE.
Check torque Of all stem bolts and DIRECT X-LOCK HARDWARE before every ride.
Ensure the light is secure before riding.
•
• After a crash replace
hardware.
cables and mounted items.
1.
Bolt and Washer are not included
visit:
Designed in Quality made
California in Taiwan
bolts that will be replaced by the included DIRECT X-LOCK
Compare exposed DIRECT X-LOCK BOLT length to
Compare both
STEM SPACERS and MOUNT ARMS into chosen stem bolt holes.
tightening pattern.
o o o
CRADLE BOLT
Read all instructions and follow all warnings before
may result in product failure and
DIRECT X-LOCK STEM BOLTS, contact Lezyne for all replacement
2.
because o the variet o mountin o tons.
form
Wnow
Form Mount is a licensed trademark of F3 Cycling LLC.
Lezyne USA , 645 Tank Farm Rd., Unit F, san Luis Obispo, california 93401
72924-MANUAL-Y12-HECTO POWER PRO STVZO-EBIKE-ROAI
