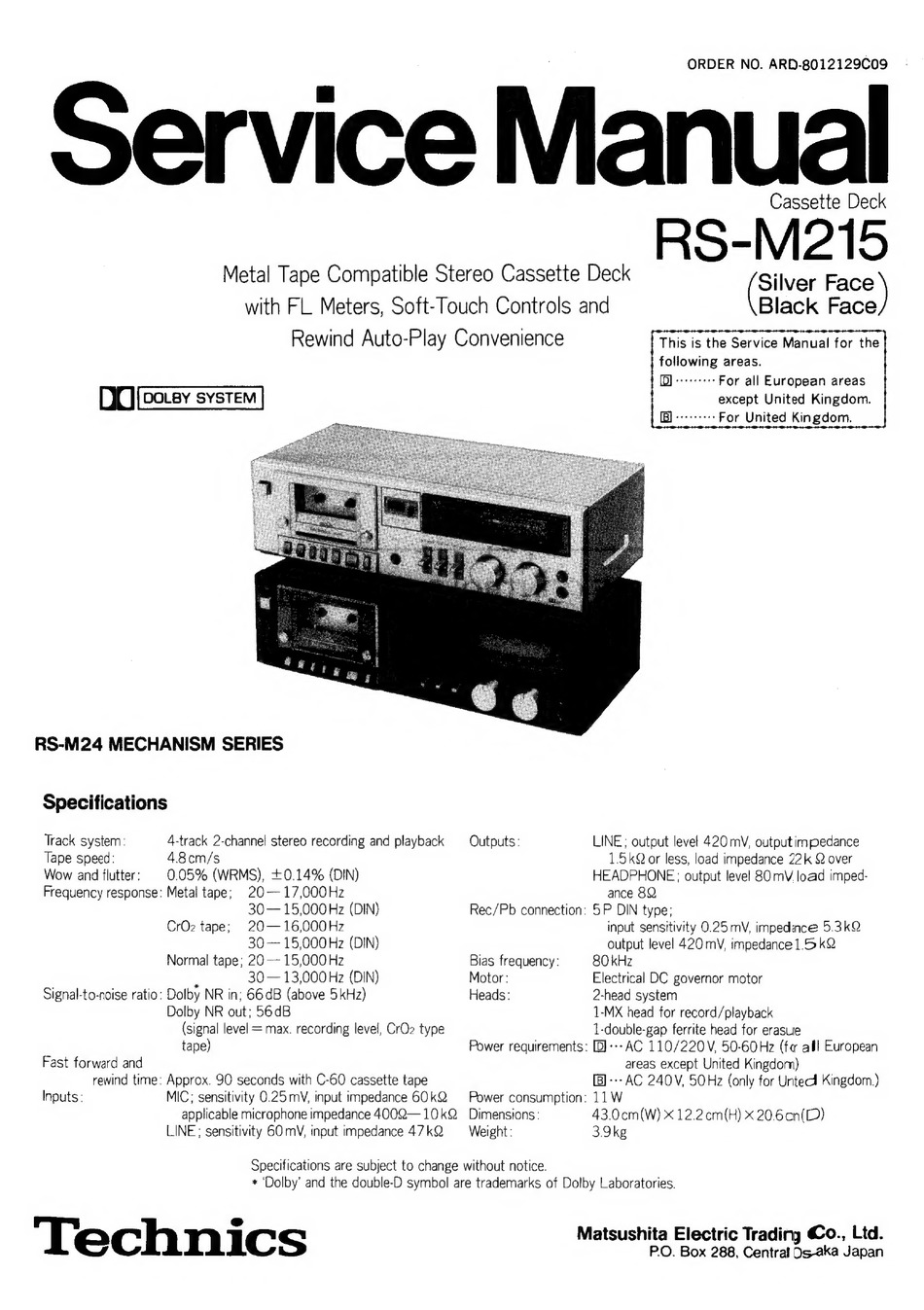

Metal Tape Compatible Stereo Cassette Deck
with FL Meters, Soft-Touch Controls and
Rewind Auto-Play Convenience
DO oxy svsrew)
RS-M24 MECHANISM SERIES
Specifications
Track system:
Tape speed:
Wow and flutter:
Frequency response:
Signal-to-noise ratio:
Fast forward and
rewind time:
Inputs:
4-track 2-channel stereo recording and playback
4.8cm/s
0.05% (WRMS), +0.14% (DIN)
Metal tape;
20—-17,000Hz
30— 15,000 Hz (DIN)
CrOz tape;
+20—16,000Hz
30— 15,000 Hz (DIN)
Normal tape; 20 — 15,000 Hz
.
30— 13,000 Hz (DIN)
Dolby NR in; 66dB (above 5kHz)
Dolby NR out; 56dB
(signal level = max. recording level, CrO2 type
tape)
Approx. 90 seconds with C-60 cassette tape
MIC; sensitivity 0.25 mV, input impedance 60 kQ
applicable microphone impedance 4002— 10kQ
LINE; sensitivity 60 mV, input impedance 47 kQ
Outputs:
Rec/Pb connection:
Bias frequency:
Motor:
Heads:
Power requirements:
Power consumption:
Dimensions :
Weight :
Specifications are subject to change without notice.
+ 'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
Technics
ORDER NO. ARD-8012129C09
ervice Manual
Cassette Deck
RS-M215
bas Face
Black —)
This is the Service Manual for the
following areas.
For all European areas
except United Kingdom.
[B) -++----- For United Kingdom.
LINE; output level 420 mV, output impedance
1.5kQ or less, load impedance 22k 2 over
HEADPHONE ; output level 80 mV load imped-
ance 822
5P DIN type;
input sensitivity 0.25mV, impednce 5.3k2
output level 420 mV, impedance 1.5 kQ
80 kHz
Electrical DC governor motor
2-head system
1-MX head for record/playback
1-double-gap ferrite head for erasue
[D}--- AC 110/220 V, 50-60Hz (fo alll European
areas except United Kingdom)
-- AC 240V, 50Hz (only for Untecd Kingdom.)
11W
43.0cm(W) X 12.2. cm(H)
x 20.6cn(D)
3.9kg
Matsushita Electric Trading €o., Ltd.
P.O. Box 288, Central Os-aka Japan
