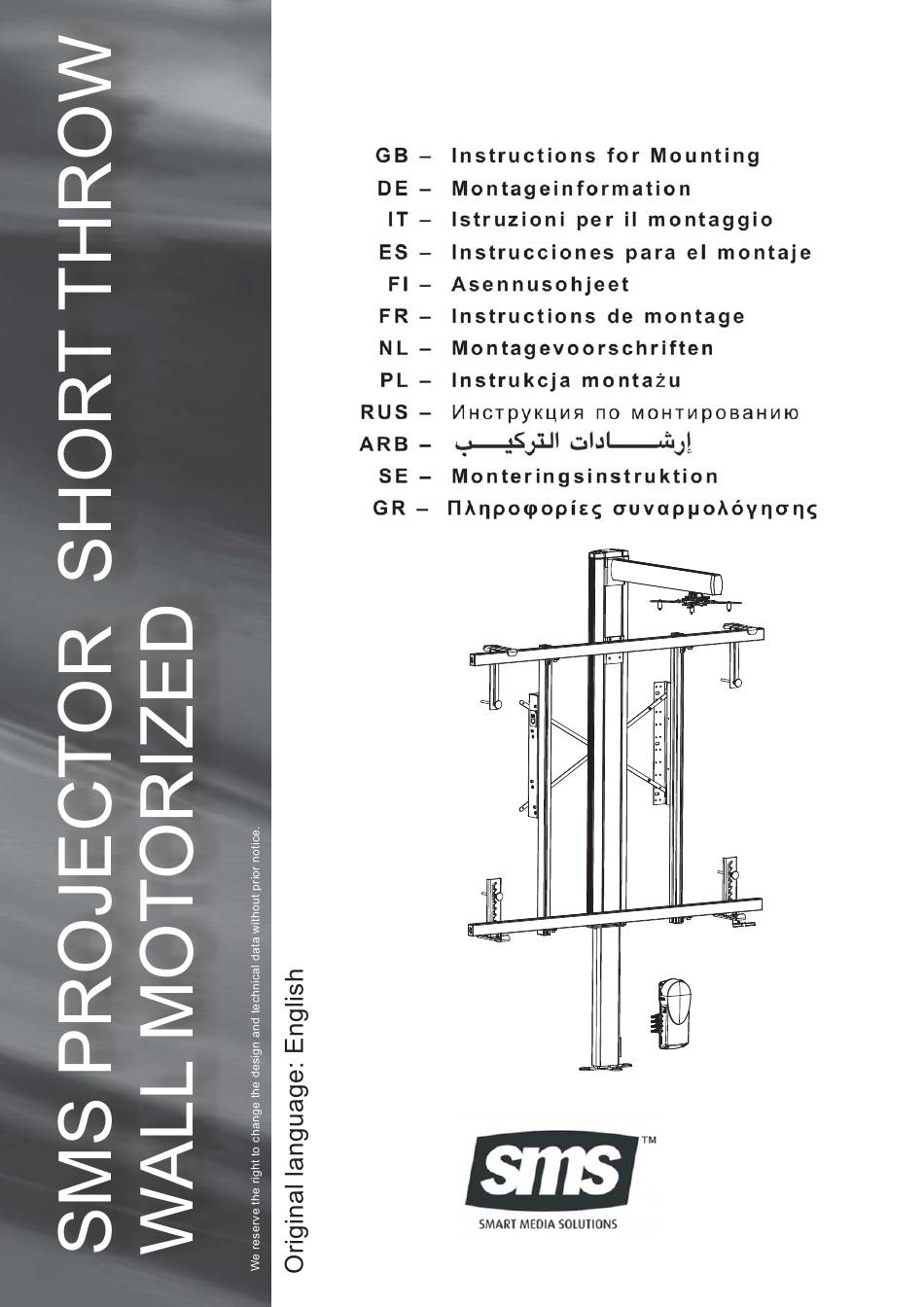

- Seite 1 MANUAL AE019XXX /A000132...
- Seite 2 SMS Projector Short Throw Wall Motorized How to read this manual Symbols: Simboli: 1. Important symbol denotes measures/information that it is important 1. Simbolo importante che indica misure/informazioni importanti da seguire. to follow. 2. Simbolo del triangolo indica una situazione che richiede attenzione.
- Seite 3 SMS Projector Short Throw Wall Motorized Instructions for use Caution Caution DOWN DOWN Press UP button to raise the column Press DOWN button to lower the column Premere il pulsante UP per sollevare la colonna Premere il pulsante DOWN per abbassare la colonna Presione el botón UP para elevar la columna.
- Seite 4 Advertencia Avertissement El montaje del producto no es responsabilidad de SMS Smart Media Solutions AB y es muy Le montage doit impérativement être effectué de façon correcte et ne relève pas de la importante que el producto sea montado correctamente. El montaje incorrecto puede responsabilité...
- Seite 5 Sulla ricevuta devono essere chiaramente leggibili nome be clearly legible on the receipt. The owner is to pay the cost of returning the product to SMS, while del fornitore e data d’acquisto. Le spese di spedizione a SMS sono a carico dell’acquirente;...
- Seite 6 SE-131 30 Nacka SE-131 30 Nacka Suède Sweden Sweden atteste par la présente que le produit : SMS Projector versichert hiermit, dass:SMS Projector Short Throw Vakuuttaa täten, että: SMS Projector Short Throw Short Throw Wall Motorized Wall Motorized Wall Motorized, modèle AE019...
- Seite 7 SMS Projector Short Throw Wall Motorized (x4) (x2) (x2) (x2) (x4) (x2) (x4) (x4) 1143 (x2) 1390 (x4) (x8) (x3) (x2) (X4) (x2) (x4) Alternative 24,8x8x1,5(x8) M6x16 (x8) (x3) M6x16 (x4) M6x25 (x4) M8x16/20 (x4) M5(x1) M5x6 (x4) M5x20 (x4)
- Seite 8 SMS Projector Short Throw Wall Motorized 13 mm (x2) Max 8 kg Max 40 kg Set motors to zero Caution Caution Caution DOWN DOWN DOWN 5 sec 5 sec 2 sec...
- Seite 9 SMS Projector Short Throw Wall Motorized =Set to zero...
- Seite 10 SMS Projector Short Throw Wall Motorized Optional ~1450 ~1450 Floor MIN 70 mm MIN 70 mm...
- Seite 11 SMS Projector Short Throw Wall Motorized (x4) 11,1 Nm...
- Seite 12 SMS Projector Short Throw Wall Motorized (x3)
- Seite 13 SMS Projector Short Throw Wall Motorized (x2) (x4) 6,5 Nm 6,5 Nm No. 3...
- Seite 14 SMS Projector Short Throw Wall Motorized (x8)
- Seite 15 SMS Projector Short Throw Wall Motorized...
- Seite 16 SMS Projector Short Throw Wall Motorized 1390 mm OPTIONAL 9 0 0 9 0 0 4 0 0 - 4 0 0 - ~1450mm (x4) (x8) M6x12 (x8)
- Seite 17 Tightening torque 3.3 Nm 6.5 Nm 11.1 Nm (X4) Disclaimer: We reserve the right to change the design and technical data without prior notice. www.SmartMediaSolutions.se SMS Smart Media Solutions AB, Hästholmsvägen 32, SE-131 30 Nacka, +46 (0)8 448 26 60...
