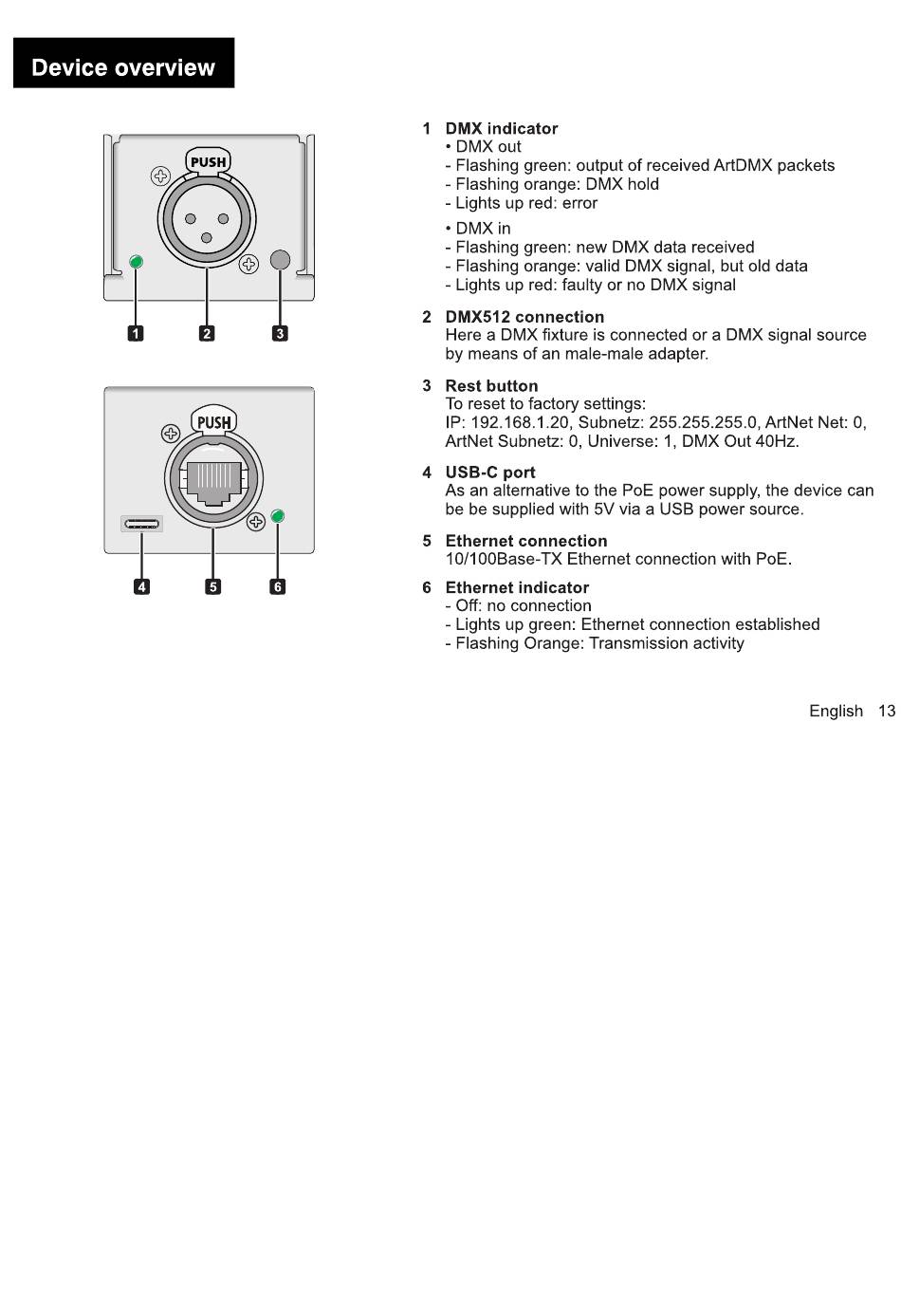

Device overview
PUSH
o
1 DMX indicator
- Flashing green: output of received ArtDMX packets
- Flashing orange: DMX hold
- Lights up red: error
- Flashing green: new DMX data received
- Flashing orange: valid DMX signal, but old data
- Lights up red: faulty or no DMX signal
DMX512 connection
Here a DMX fixture is connected or a DMX signal source
by means of an male-male adapter.
3 Rest button
To reset to factory settings:
'P: 192 168.1 20, Subnetz:
ArtNet Subnetz: 0, Universe:
USB-C port
4
As an alternative to the POE power supply, the device can
be be supplied with 5V via a USB power source.
5 Ethernet connection
10/100Base-TX Ethernet
6 Ethernet indicator
- Off: no connection
- Lights up green: Ethernet connection established
- Flashing Orange: Transmission
255 255 255 0, ArtNet
1, DMX Out 40Hz.
connection with POE
activity
Net: O,
