INSTRUCTION MANUAL
InLine® Interface Card 4 Port Serial 9 Pin PCIe PCI-Express
GENERAL INFORMATION
Validity:
These operating manual applies to the following products:
• 76623C InLine® Interface Card 4 Port Serial 9 Pin PCIe PCI-Express
Manufacturer:
INTOS ELECTRONIC AG
Siemensstraße 11
D-35394 Gießen
service@inline-info.com
Date: February 2024
CONTENT OF DELIVERY
• 1x InLine® interface card, 4x serial 9-pin, PCIe
• 1x Instruction manual (German/English)
Check the contents of delivery for completeness. If individual components are mis-
sing, please contact your specialist dealer.
EXPLANATION OF WARNING SYMBOLS AND NOTES
This symbol indicates information that contributes to better
understanding.
This symbol indicates that there are fundamental dangers to the health
of persons.
INTENDED USE
The PCI Express I/O card uses the latest PCI Express interface standard for expan-
sion buses, which allows it to be installed in any PCI Express-capable desktop PC.
Most of the latest motherboards no longer have any of the older serial or parallel
ports. By using this card, the end user can add serial and parallel ports to their
computer to connect appropriate devices. The PCI Express I/O card offers perfor-
mance with unrivalled data transfer rates, making it ideal for industrial applications.
General warnings
• Do not open the housing for installation until the power source has been
disconnected.
• Protect from dust and moisture.
If the computer housing is open, live parts can be touched, there is a
risk of electric shock and the installation may have to be carried out by
a specialised company.
NON-INTENDED USE
The following is considered improper use in the sense of foreseeable misuse:
• Install the PCI Express card in the correct slot, otherwise the computer and
card may be damaged.
• Avoid the occurrence of short circuits or bypasses during installation.
FEATURES / SPECIFICATIONS
• Fully compatible with PCI Express specification revision 1.1
• Single-lane (x1) PCI Express with a throughput of up to 2.5 Gbit/s
• Supports the re-map function for legacy ports
• Supports Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit,
Server 2008 32/64-bit, Windows 7 32/64-bit, Linux, Mac OS/X 10.5, and
DOS 6.22
Serial port (RS-232)
• Compatible with industry standard 16C450/16C550 UART
• On-chip 256-byte FIFO depth for sending and receiving each port
• Maximum data rate of up to 230.4Kbps per port (special version up to 1Mbps)
• Supports hardware and software flow control
• Supports 5-, 6-, 7-, 8- bit serial formats
• Supports Even, Odd, None, Space & Mark parities
• Supports 1 or 2 stop bit operation
• Optional jumpers for setting RI, +5V, or +12V on pin 9 of each serial port DB9
(special models)
2
Parallel port
• IEEE1284 compatible parallel interface
• Supports SPP, PS2, EPP & ECP mode
• Fast data rates of up to 1.5 Mbit/s
Before installing and activating the interface card, please ensure that you
have a full backup of your existing data from the hard drive. The manu-
facturer is not responsible for data transfer due to misuse, misapplica-
tion or negligence. If you have an installation problem, please contact your dealer.
HARDWARE INSTALLATION

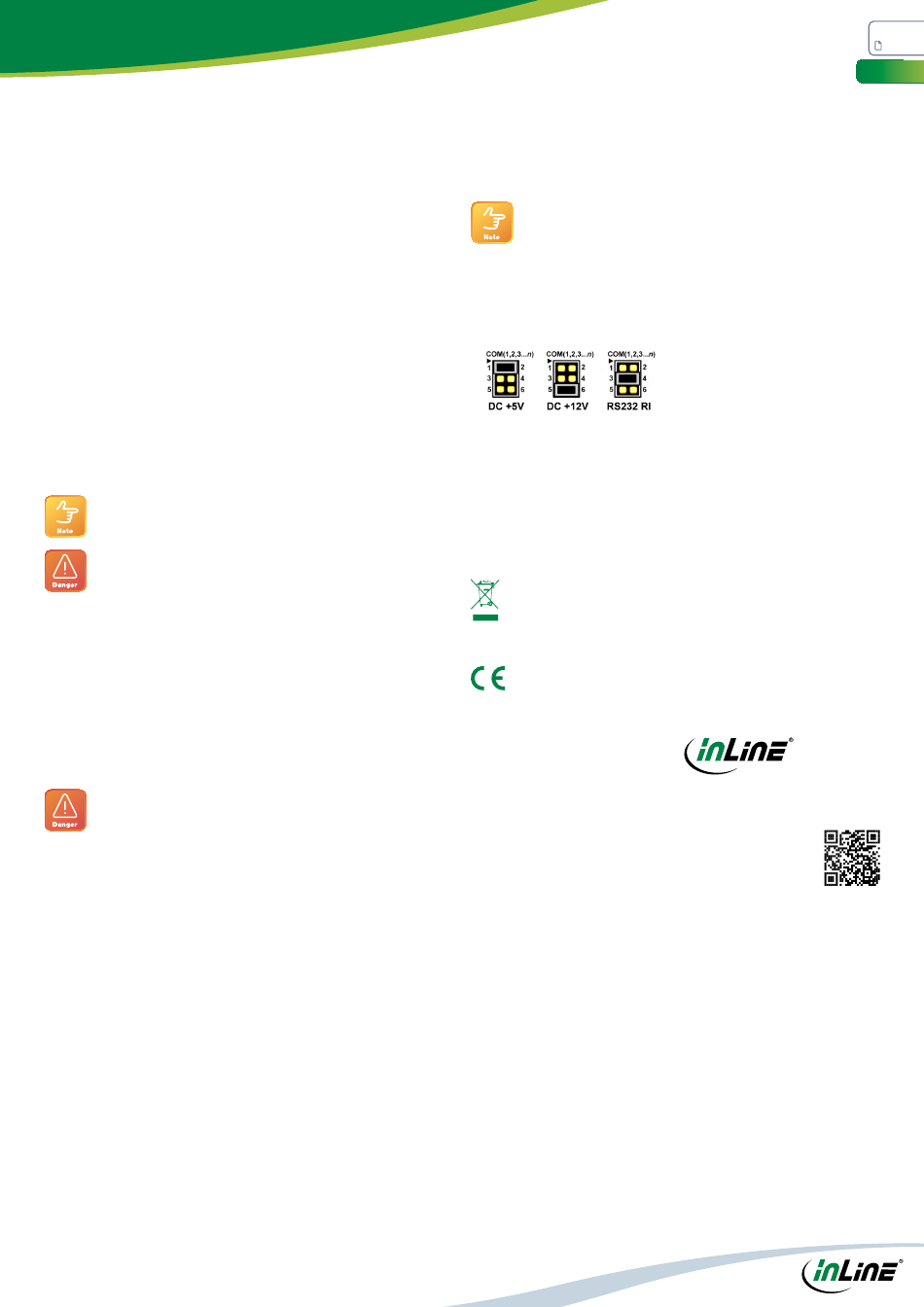

1. Note: For special serial product models with an optional jumper for setting the
serial interfaces, configure the required function for pin 9 of each serial DB9
connection on the jumper block. See Figure 1 for details. For parallel interface
cards and cards without jumper block, go to step 2.
2. Switch off the computer and all devices connected to it.
3. Open the computer case. Refer to the computer manual for more details.
4. Find a free PCI Express slot and remove the slot bracket. Save the retaining
screws for later use.
5. Insert the card firmly and evenly into the PCI Express slot. Take care not to
force it into the slot. As soon as you have inserted the card, secure it with the
retaining screws that you used previously.
6. Close the computer housing again.
7. Switch on your computer. You are now ready to install the drivers!
The latest drivers and the latest changes to this document can be found here:
https://www.inline-info.com/downloadcenter
DISPOSAL
Electrical and electronic equipment and batteries must not be disposed of
with household waste. The consumer is legally obliged to return electrical
and electronic equipment and batteries at the end of their service life to the desig-
nated public collection points or to the point of sale.
SIMPLIFIED EC DECLARATION
OF CONFORMITY
The Manufacturer / Importer:
INTOS ELECTRONIC AG
Siemensstrasse 11
35394 Giessen
hereby declares that this InLine® interface card complies with all relevant provi-
sions of the EMC (2014/30/EU) and ROHS (2011/65/EU + 2015/863/EU) directives.
The complete part of the EU Declaration of Conformity is available at
the following internet address:
https://www.inline-info.com/en/downloadcenter
DISCLAIMER
1st edition English 4/2024
Documentation © 2024 INTOS ELECTRONIC AG
All rights reserved. No part of this manual may be reproduced in any form or du-
plicated or processed using electronic, mechanical or chemical processes without
the written consent of the publisher. It is possible that this manual may still contain
typographical errors or misprints. However, the information in this manual is che-
cked regularly and corrections are made in the next edition. We accept no liability
for technical or printing errors and their consequences. All trademarks and indust-
rial property rights are recognised. Changes in the sense of technical progress can
be made without prior notice. Our products, including the packaging, are not toys
and may contain small parts and sharp objects.
Please keep away from children.
Figure 1
