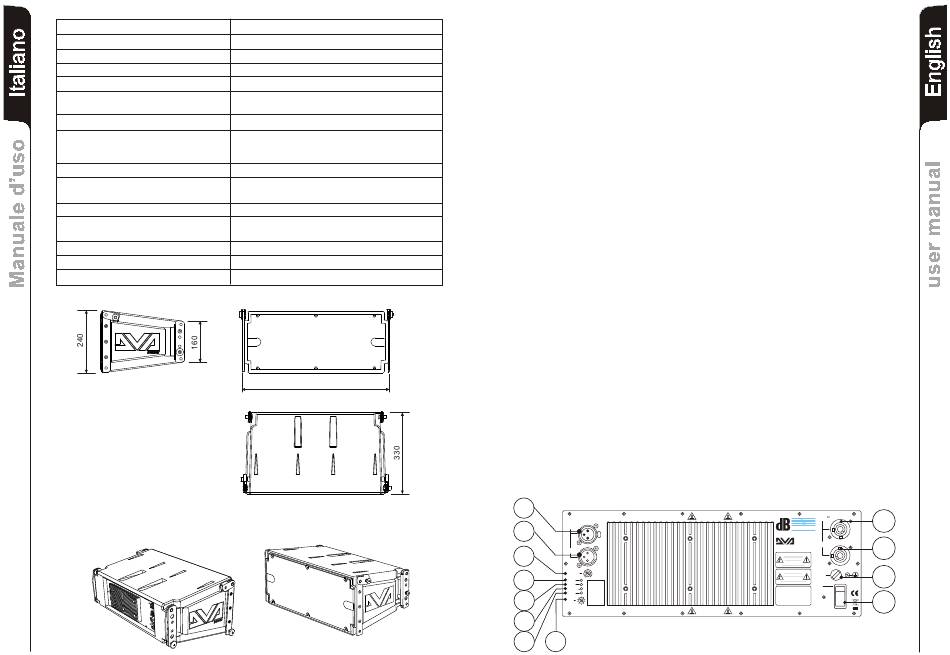

dB Technologies DVA T4 Bedienungsanleitung Seite 3

DATI TECNICI
Sistema
Tipologia amplificatore
Potenza RMS
Potenza musicale
Risposta in frequenza +/-3dB
Crossover
Pressione sonora (SPL)
Componenti
Sensibilità ingresso nominale
Impedenza ingresso Bilanciato
Sbilanciato
Delay totale
Alimentazione
Forma diffusore
Dimensioni [LxHxP]
Peso
3
Attivo 3-Amps
Digitale - Classe T
420 W
840 W
80-19.000Hz
420 - 2500Hz
24dB/oct
128 peak
1 woofer 8" - bobina 64mm - neodimio
1 midrange 6,5" - bobina 38mm - neodimio
2 compression driver da 1" - neodimio
0 dBu
20Kohm
10Kohm
1,2mS
full-range con PFC
85-265V ~ 50-60Hz
trapezioidale
580x330x240/160mm
13,2Kg
580
CONTROLS AND FUNCTIONS
1) POWER SWITCH
This switch permits turning the speaker on and off.
2) "MAINS FUSE" FUSE CARRIER
Mains fuse housing.
3) "MAINS INPUT" POWER SOCKET
For connecting the power cable provided.
The connector used for mains connection is a POWER CON® (blue)
4) "MAINS OUTPUT LINK" RELAUNCH POWER SOCKET
For relaunching the mains power. The output is connected in parallel with input (3)
and can be used to power another amplified speaker.
The connector uses a POWER CON® (grey)
5) " BALANCED INPUT" INPUT CONNECTOR
Balanced input at line level. It is able to accept "XLR" sockets.
6) "BALANCED LINK /OUT " OUTPUT CONNECTOR
The "XLR" connector connected in parallel with input (5) can be used to send the
input audio signal to another amplified speaker.
7) "INPUT SENS" INPUT SENSITIVITY CONTROL
This control regulates the sensitivity of the signal amplifier input.
This control does not affect the "BALANCED LINK/OUT" output level
8) "LIMITER" INDICATOR LIGHT
This indicator comes on red to indicate that the internal limiter circuit has tripped.
This prevents amplifier distortion and protects the speakers against overloads.
9) "SIGNAL" INDICATOR LIGHT
This indicator comes on green to indicate the presence of the audio signal (at a level
of -20dB).
10) "MUTE /PROT " INDICATOR LIGHT
This yellow indicator indicates amplifier status. In normal operating conditions, the
LED is off; if it flashes or is always on, refer to the diagnostics table to check amplifier
status.
11) "READY" INDICATOR LIGHT
This indicator comes on green to indicate that the main power voltage is correct. In
normal operating conditions, the LED is on; if it flashes or is off, refer to the
diagnostics table to check amplifier status.
12) "SET-UP MODE" EQUALIZATION SWITCH
This 10-position rotating switch permits selection of the equalization curve according
to installation type.
See table for corresponding equalization curve.
5
BALANCED
6 INPUT
1 = GND
2 = HOT
3 = COLD
BALANCED
7 LINK / OUT
+10dB
INPUT SENS +4dB
8
0dB
LIMITER
SIGNAL
MUTE/PROT
READY
9 9 0
9 1
SET-UP
8 2
MODE
7 3
6 4
5
10
11 12
WARNING WARNING
FULL RANGE MAINS INPUT
HOT SURFACE HOT SURFACE 85-265V 50-60Hz
500W MAX
T 4 TECHNOLOGIES
ACTIVE P.F.C.
MAINS
LINK
Digital Vertical Array
