DeLOCK 90346 Bedienungsanleitung

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_90346/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo on
the device and the package indicates that the device should not be disposed in the
normal household garbage. You are responsible for taking the disused electrical
and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources
more economical. Furthermore recycling of electrical waste is a contribution to
keep the environment and thus also the health of men. Further information about
disposal of electrical and electronical waste, recycling and the collection points
are available in local organizations, waste management enterprises, in specialized
trade and the producer of the device.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 05/2024
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik
USB 5 Gbps PCI Express x1 Card
5 x USB Type-A + 2 x USB Type-C™
female
English
Description

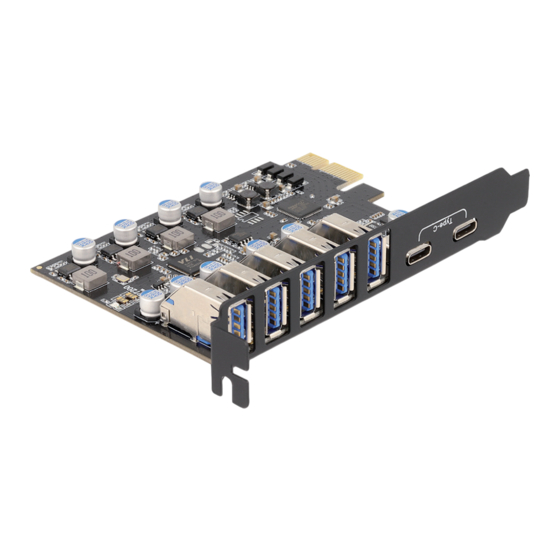

This PCI Express card by Delock expands the PC by five external Type-A and two
external USB Type-C™ ports. Different USB devices such as USB flash memory,
card reader, external enclosure etc. can be connected. A maximum data transfer
rate of up to 5 Gbps can be reached.
Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied
exclusively via the PCI Express interface.
Specification
• Connectors:
external:
5 x USB 5 Gbps Type-A female
2 x USB 5 Gbps USB Type-C™ female
internal:
1 x PCI Express x1, V2.0
• Chipset: VIA VL817, Fresco Logic FL1100
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Electrical power per port: max. 5 watt (5 V / 1 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 90346
User manual no: 90346-a
www.delock.com
