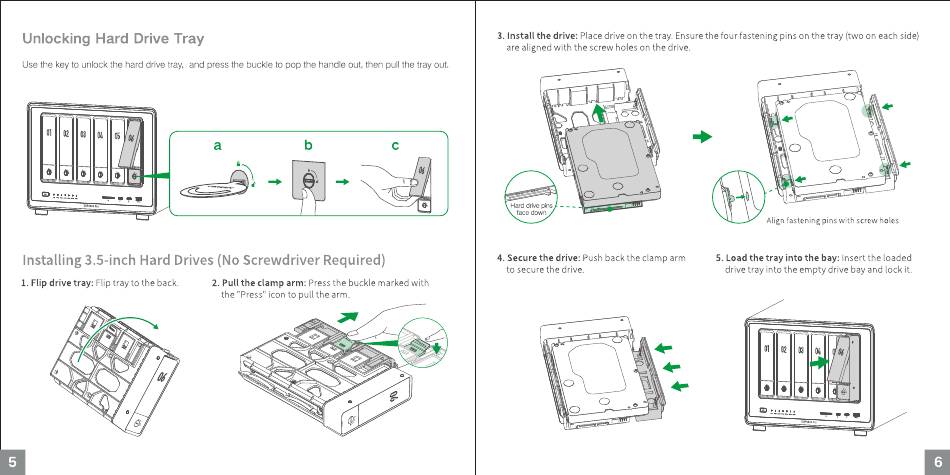

Unlocking Hard Drive Tray
Use the key to unlock the hard drive tray, and press the buckle to pop the handle out, then pull the tray out.
06
Installing 3.5-inch Hard Drives (No Screwdriver Required)
1. Flip drive tray: Flip tray to the back.
b
c
a
2. Pull the clamp arm: Pressthe buckle marked with
the "Press" icon to pull the arm.
3. Install the drive: Place drive on the tray. Ensurethe four fastening pins on the tray (two on each side)
are aligned with the screw holes on the drive.
06
e.
Hard drive pins
face down
4. Secure the drive: Push back the clamp arm
to secure the drive.
0
0
Align fastening pins with screw holes
5. Load the tray into the bay: Insert the loaded
drive tray into the empty drive bay and lock it.
01
02
03
